Chapter 8: Reports and Tools PETracer Software User Manual
110
Teledyne LeCroy

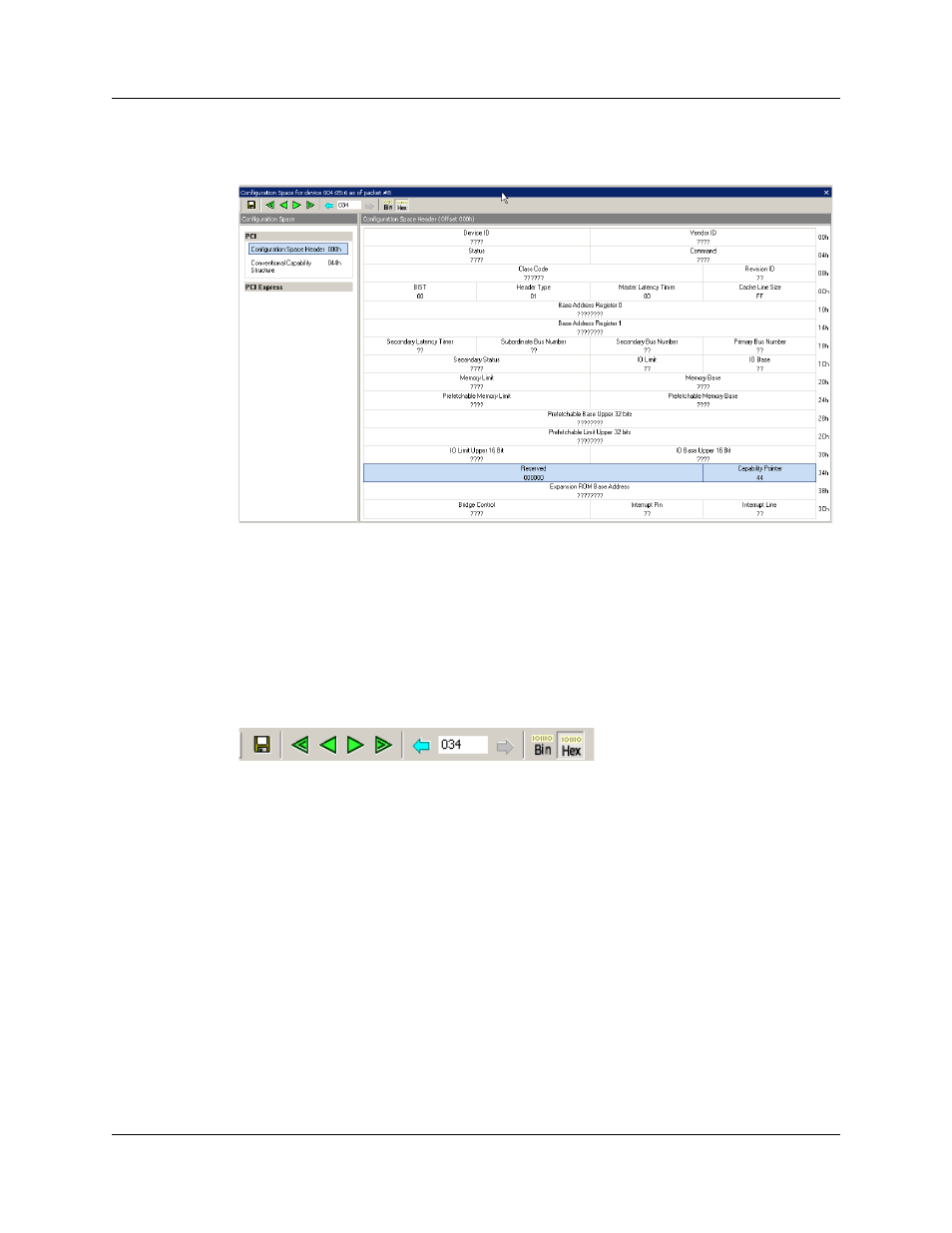

Select Show Configuration Space for xxxx from the menu, where xxxx is the
device number. The Configuration Space View opens.
On the left, the view displays the Configuration Space for the selected CompleterID or
DeviceID at the current packet. You can select Configuration Space Header or a
Capability Structure.
The right displays the decoded data of the selected Configuration Space Header or a
Capability Structure, up to the current packet. (The decoding builds while navigating
through the next packets.)
The Configuration Space View toolbar allows you to Save, go to First, go to Previous,
go to Next, go to Last, go to Previous Access to Selected Configuration Space Register,
go to Next Access to Selected Configuration Space Register, and display Hexadecimal or Binary
.
Note: See Appendix A “Configuration Space Decoding” on page 131.
