PETracer Software User Manual Chapter 8: Reports and Tools
Teledyne LeCroy
101

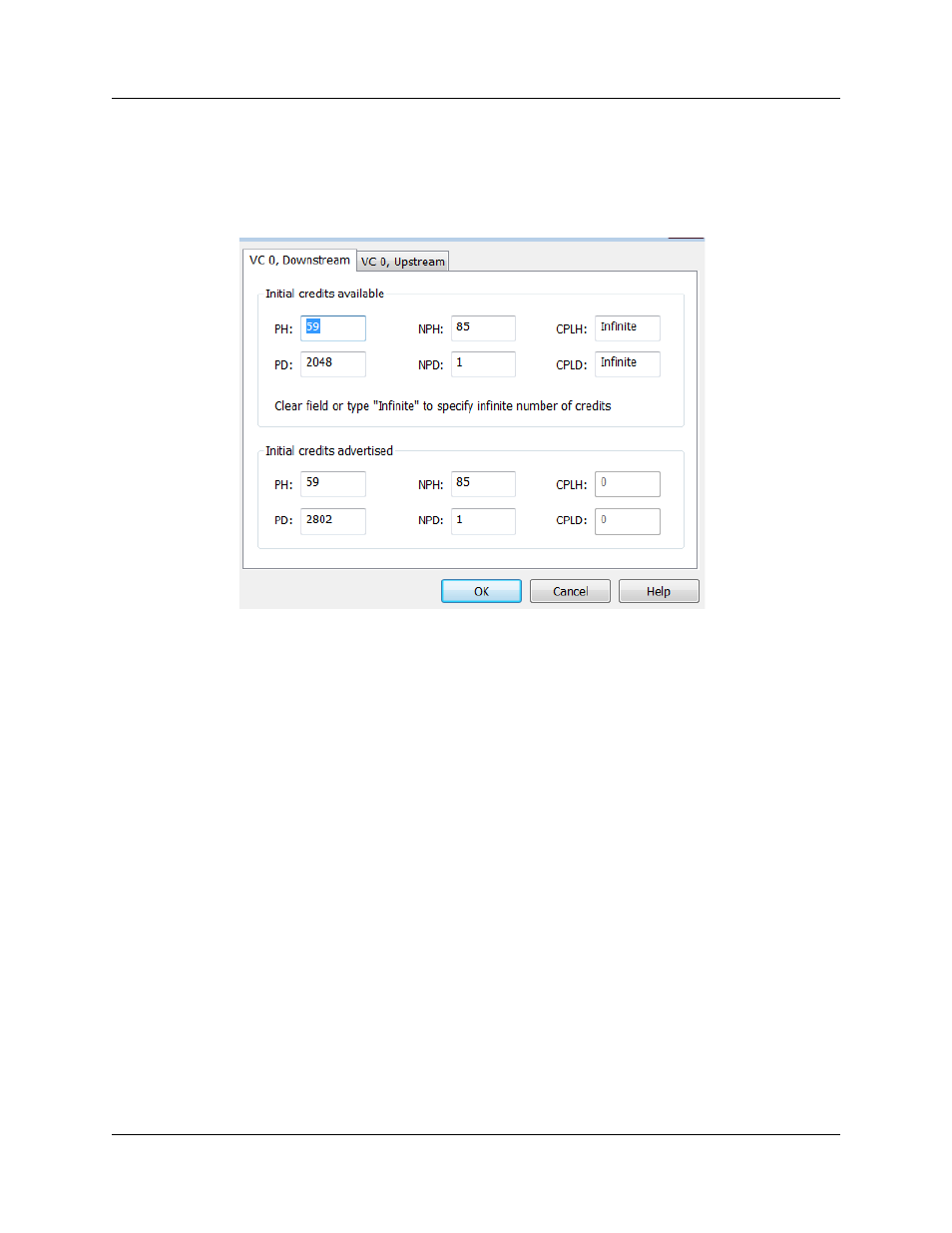

UpdateFC credit fields are different than the values in the first UpdateFC packet, Flow
Control tracking view will show that the first UpdateFC packet is releasing appropriate
amount of credits. By default, PETracer sets these values to match the first UpdateFC
packets in the trace.
8.8 Using the CATC Trace Navigator
The CATC Trace Navigator is a tool for navigating within the CATC Trace. It allows you
to view the location of errors and triggers in a CATC Trace and to narrow the range of
traffic on display. It also allows you to quickly jump to any point in the CATC Trace.
