4.9 Edit or Clear Marker
To change a markers identifier, or clear (delete) the marker:

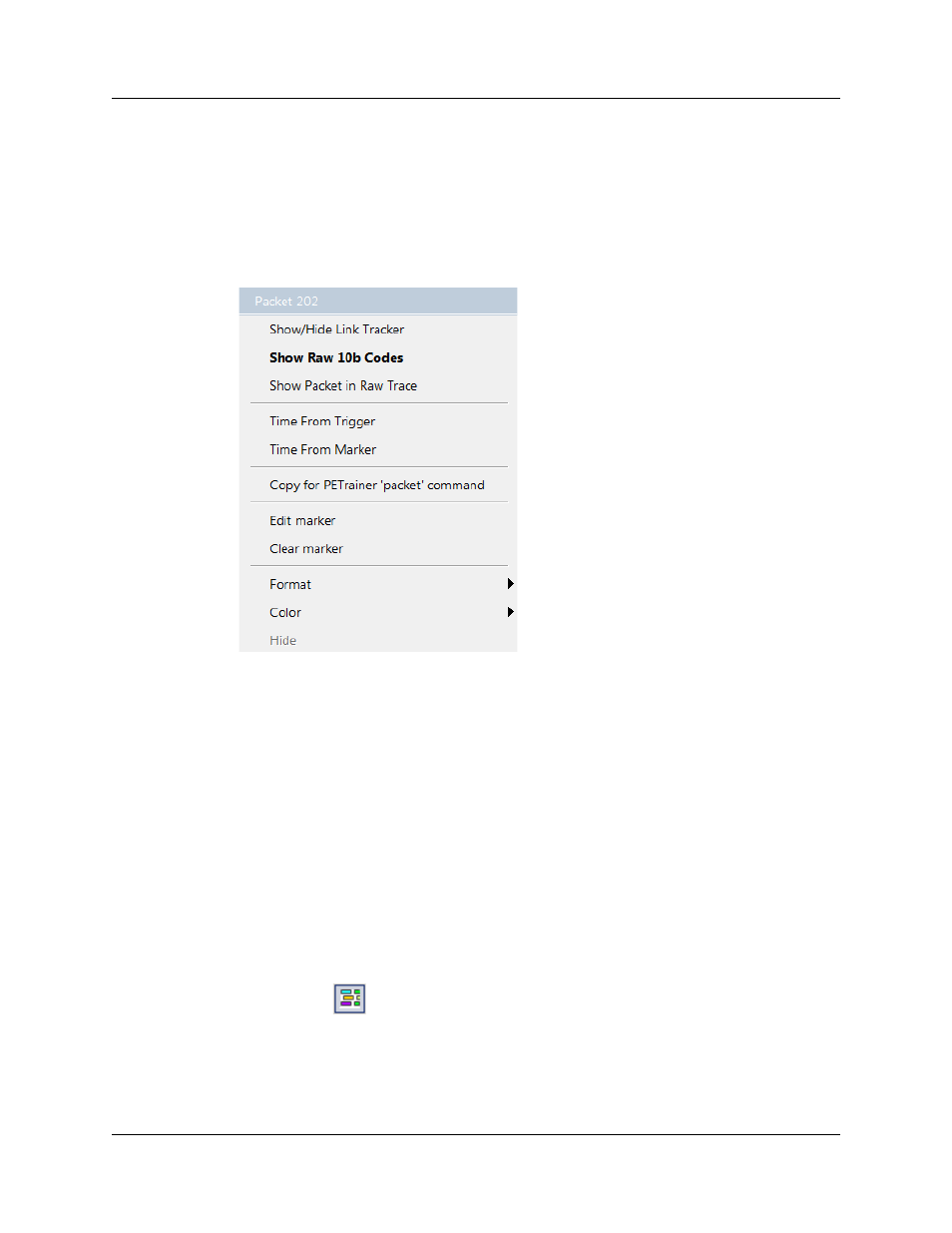

Step 1 Right-click the Packet field of the desired packet to display a pop-up
menu.
Step 2 Choose Edit Marker and enter a new identifier into the
Edit Marker for Packer # pop-up, or
choose Clear Marker. When you choose Clear Marker, the marker is
removed and the red line disappears.
4.10 Compressed CATC Trace View
The Compressed CATC Trace view shows fields in the format “Attribute: Value”,
whereas the normal CATC View shows the attribute name on top and the value
below.
The Compressed CATC Trace view has almost all the information of the normal
CATC View and behaves mostly the same way, while displaying more
information on each window (see figure on next page).
To compress the CATC Trace:
Step 1 Click
on the toolbar.
