Chapter 4: Reading CATC Traces

PETracer Software User Manual

Teledyne LeCroy

Quick Timing provides immediate time deltas and bandwidth calculations. If the
Start is placed on a packet that contains an Address and Endpoint, the
bandwidth for that combination is displayed in the Status Bar below the trace
data.

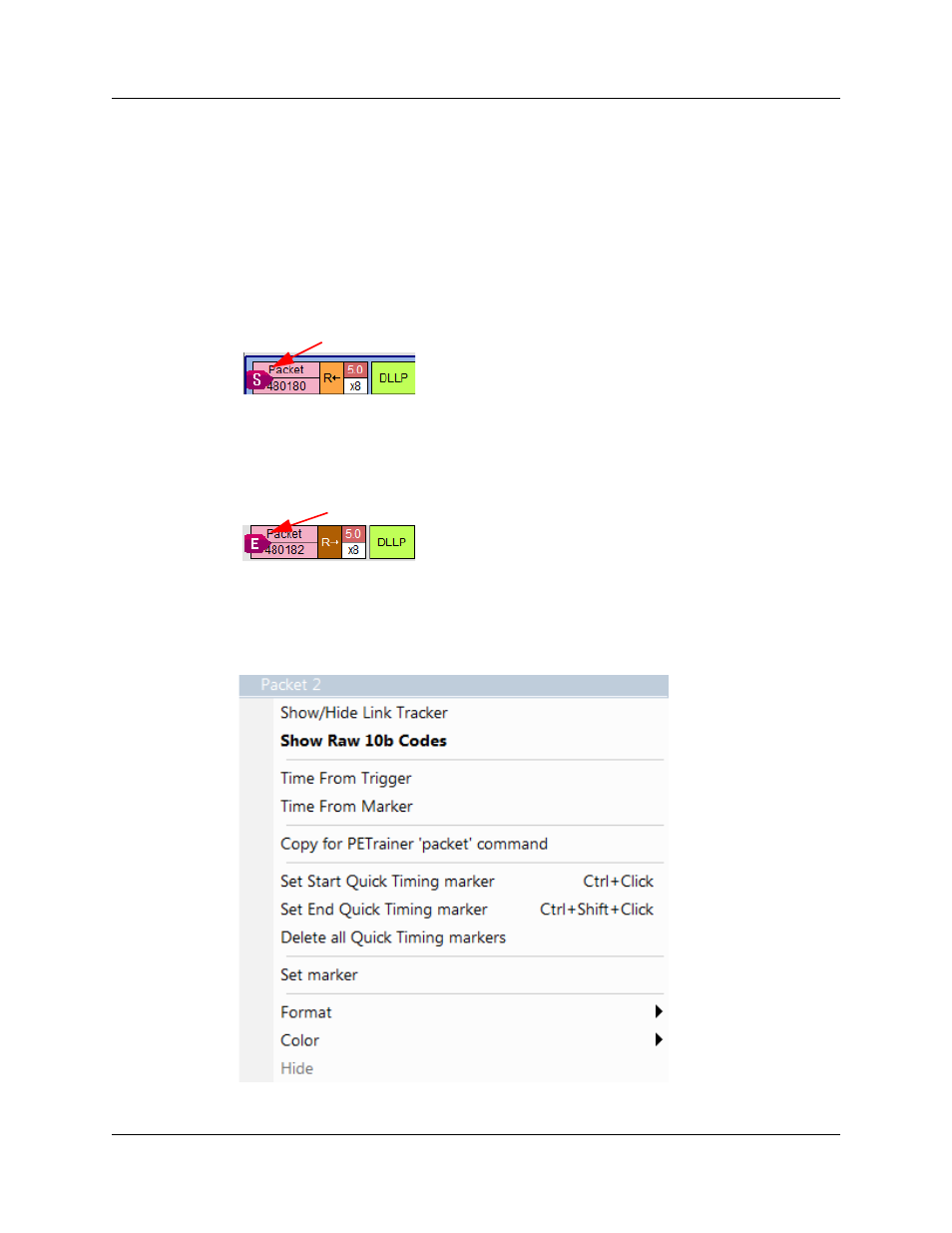

Quick Timing Markers are special ""Start"" and ""End"" markers used to mark
the boundaries of the calculations. The results are shown in a special Quick
Timing Bar at the bottom of the TraceView. The markers are set from a context
sensitive menu.

Set End Quick Timing Marker

Sets the end packet for the Quick Timing marker. An E symbol is displayed at the
packet

Delete All Quick Timing Marker

Deletes all Quick Timing markers.Packet Cell Popup Menus. The Packet cell has
a left‐click pop‐up menu that includes the Show Raw 10b Codes command:
