PETracer Software User Manual
Chapter 8: Reports and Tools
Teledyne LeCroy
87
8.3 Traffic Summary

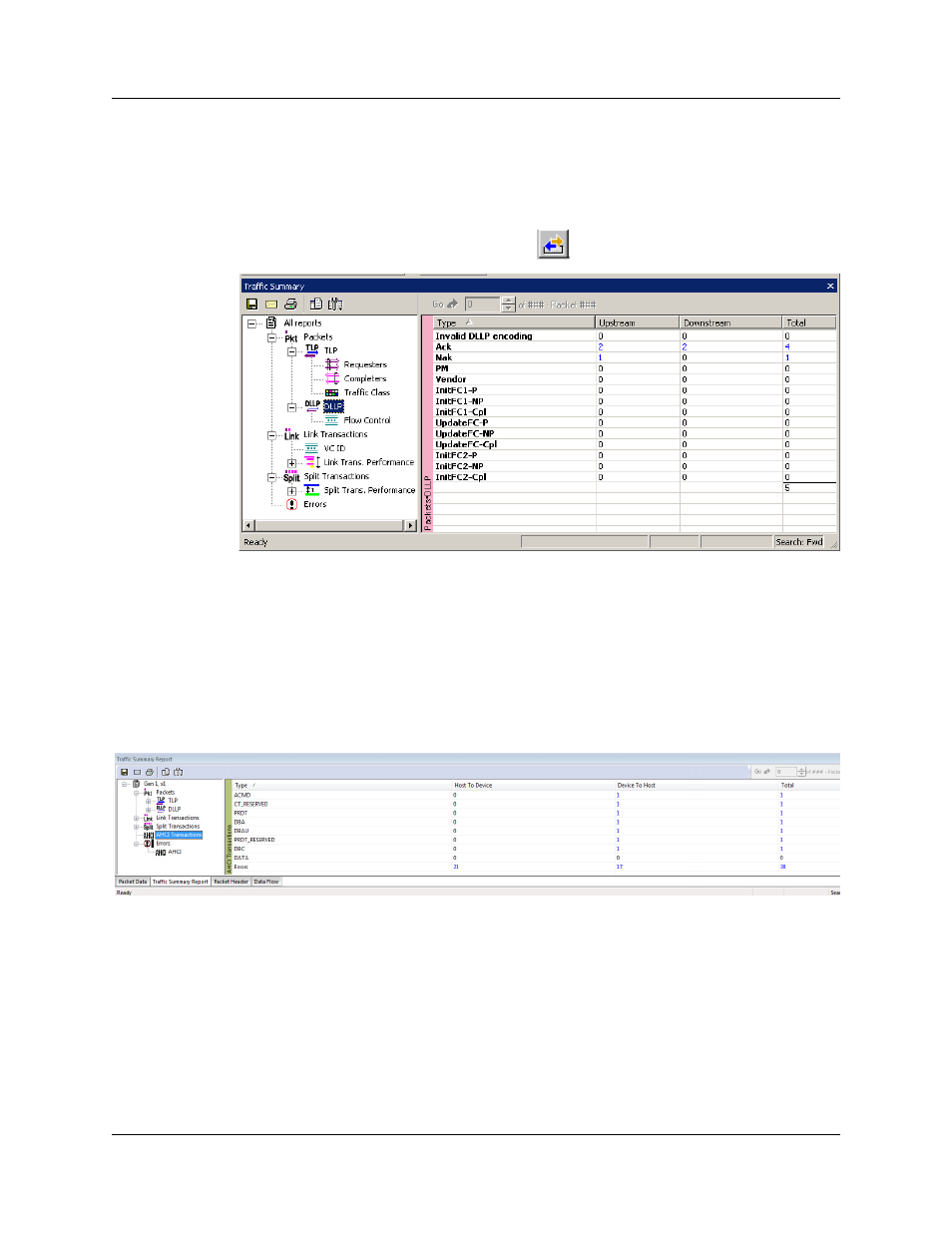

The Traffic Summary window summarizes the traffic in the current CATC Trace. The left
side of the window displays a tree of protocol levels. The right side displays a summary
of traffic for the displayed levels.
Select Reports > Traffic Summary or click
to display the Traffic Summary window.
Buttons at the top of the Traffic Summary window change the display format and enable
data to be exported to email, file, or the printer.
AHCI Traffic Summary
The AHCI Traffic Summary window summarizes the AHCI traffic in the current CATC
Trace. The right side displays a summary of AHCI transactions and errors.
Select Reports > Traffic Summary to open the Traffic Summary dialog.
