4.12 Decoding Traffic

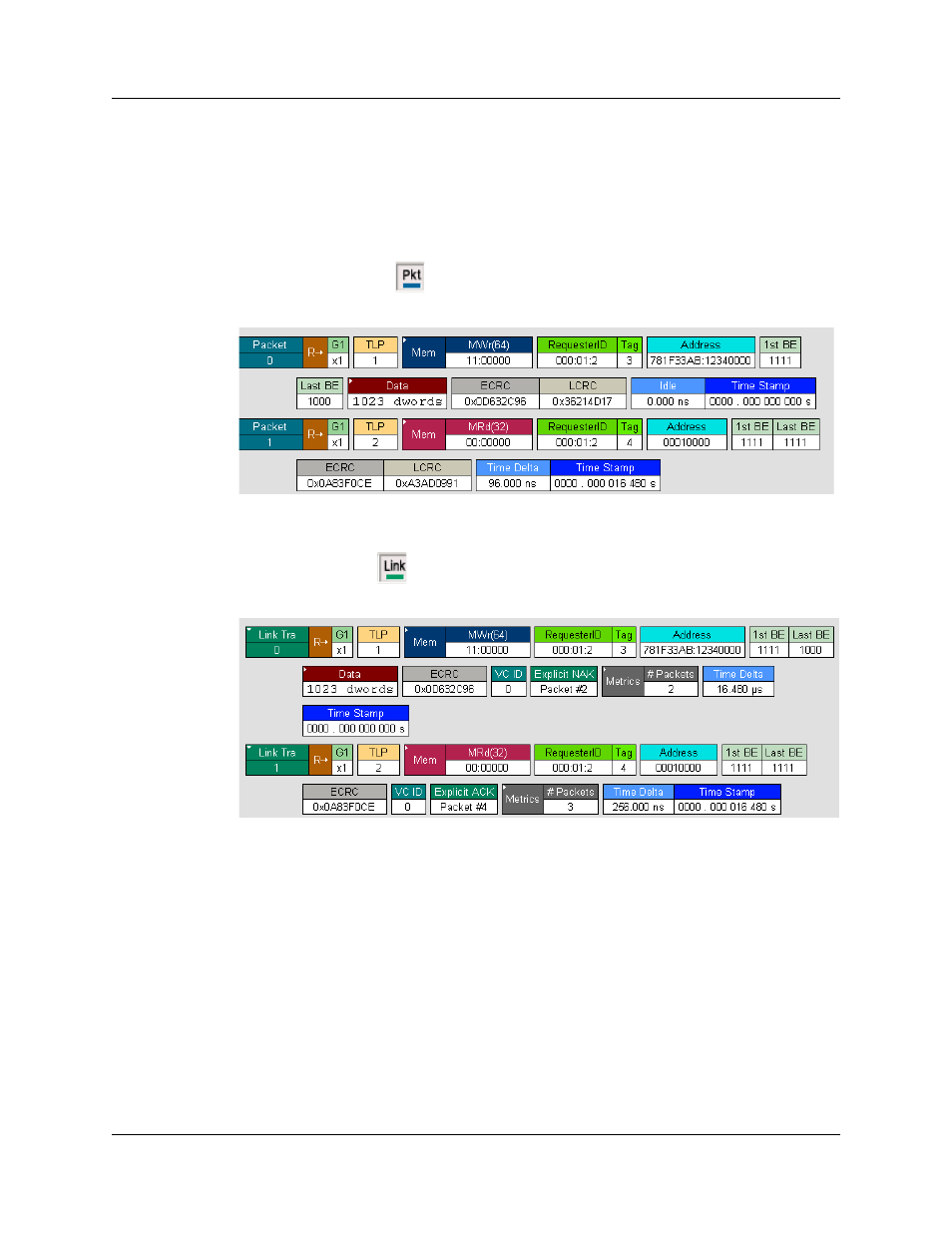

The PETracer software has three decode levels:
Packet
Packet level decode
includes all TLP packets, DLLP packets, and all ordered
sets.
Link
Link level decode
is composed of TLP packets matched with a
corresponding ACK or NAK coming from the opposite direction.
