5 Installation
1. Install retention module into PCI Express target system board.
The retention module is a connector that allows the Teledyne LeCroy mid-bus probe to attach
to the target system board. The retention module is installed by aligning the module pins with
the holes on the target system board. The retention module is keyed - so be sure to orient it
so that it matches the connector. Once installed, the pins from the retention module stick
through the PCI Express board.
2. Solder the pins from the retention module to the board.

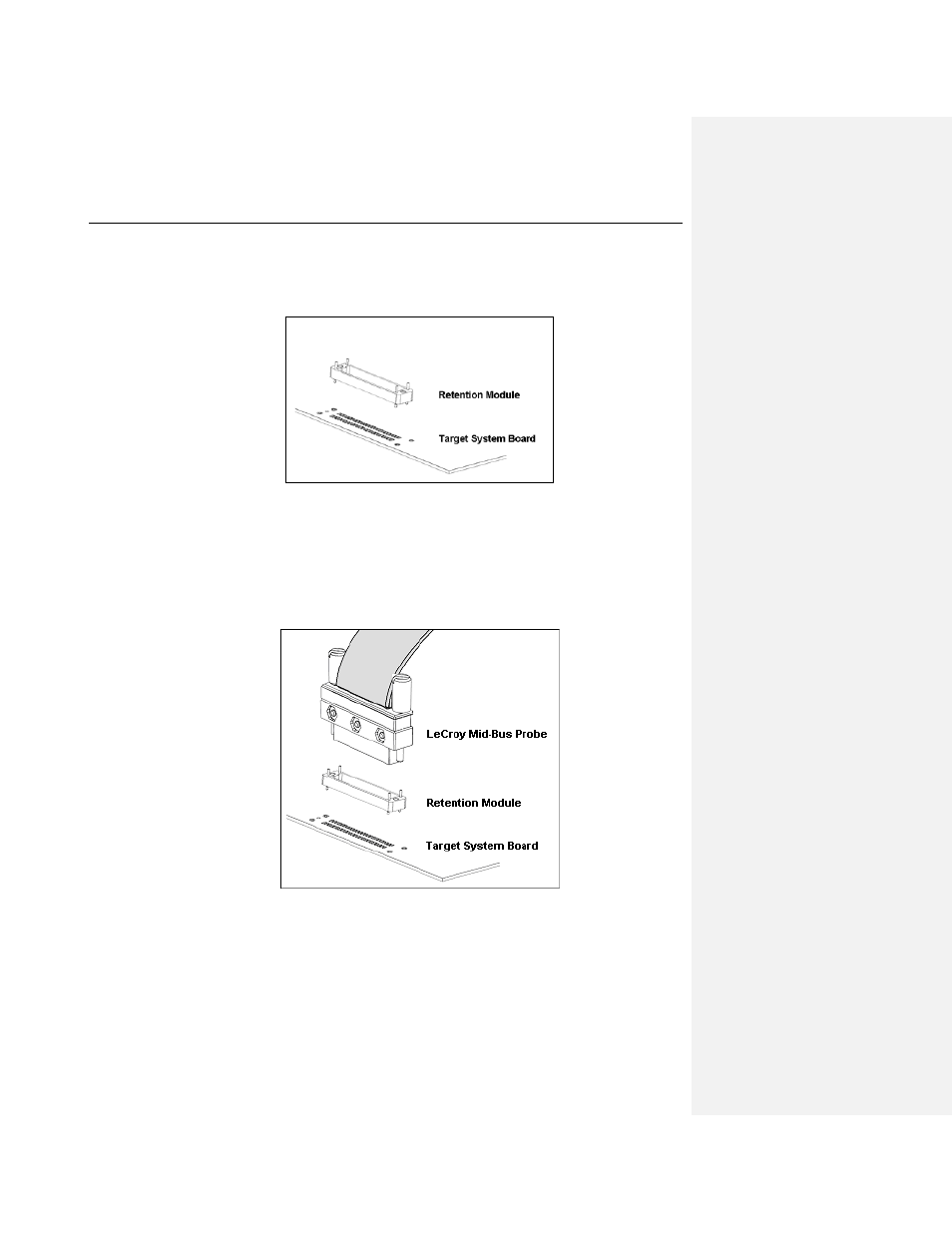

3. Plug the mid-bus probe header into the retention module as shown below.
