GENERAL INFORMATION
RC231002 Rev. 3 4
GENERAL INFORMATION
This manual provides you with complete instructions and
suggestions for handling, installing, and servicing Caloric
Self-Cleaning Gas Ranges.
This manual is based on information gained through
experience and careful testing. This information, if fol-
lowed carefully, will assure the customer of proper unit
operation with a minimum of servicing requirements, thus
insuring the maximum benefits of clean, modern cooking.
Unless the unit is properly installed and carefully ex-
plained, the customer will not receive the utmost advan-
tages that gas cooking provides.
Feel free at all times, to call Caloric to discuss any
problems which may not be fully understood.
Refer to the Parts Catalog when replacement parts are
needed.
MODEL IDENTIFICATION
The correct model number, manufacturing number (MN or
P), and serial number should be known prior to ordering
parts so that incorrect shipments and delays can be
avoided. (See Rating Label example.)
The rating label is located in the burner box of the unit and
can be observed by raising the main top. The rating label
on sealed burner units is located on the front frame behind
the storage drawer.

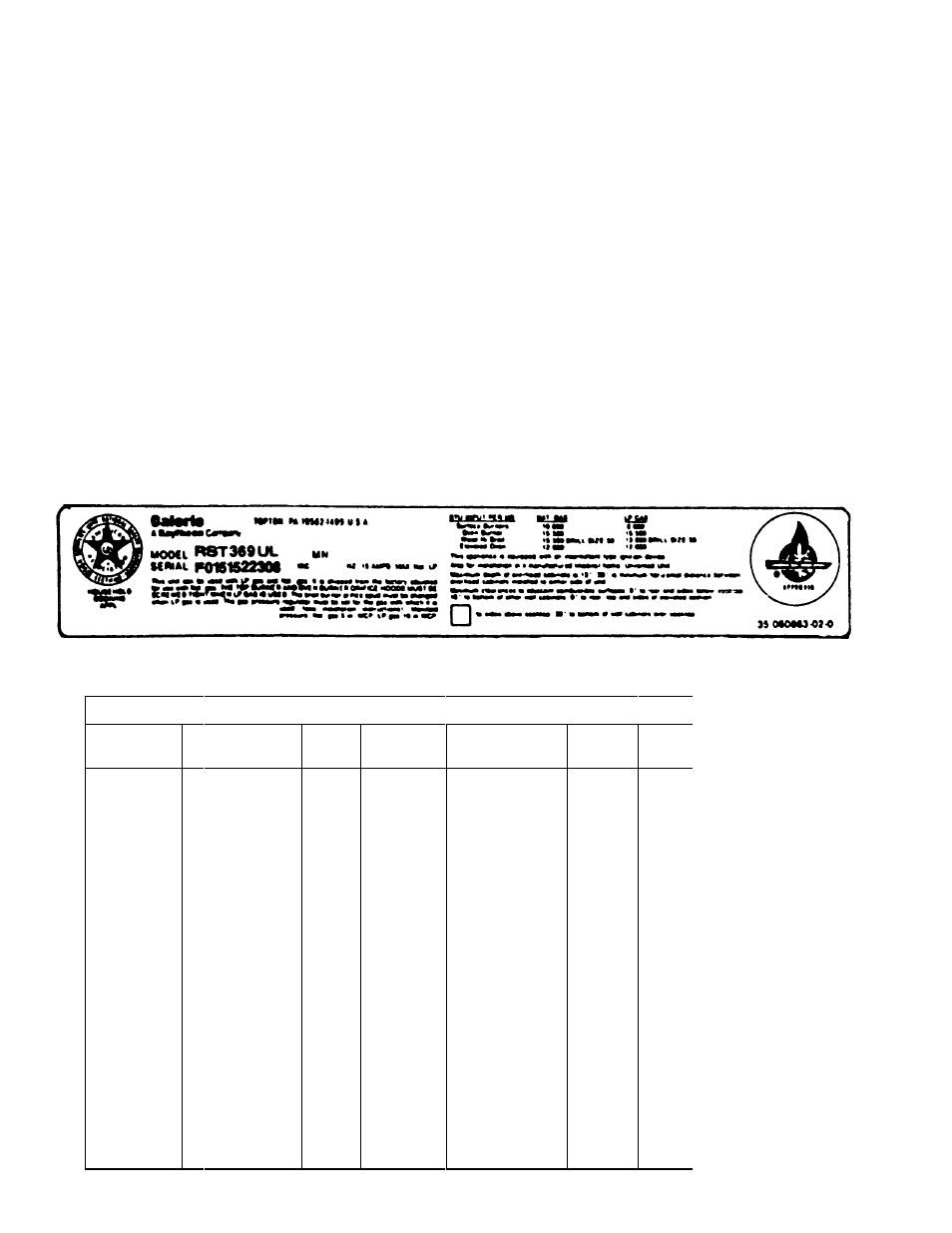

The wiring diagram is located on the bottom of the storage
drawer assembly.
CALORIC MODEL DESCRIPTION BREAKDOWN
R S T 3 8 O
PRODUCT
LINE
PRODUCT TYPE SERIES
WIDTH
ON TOP
BACKGUARD FEATURE F
E
R
T
H
M
Electric
Gas
Trash
Compactor
Vent Hood
Microwave
C
H
J
K
L
M
P
S
T
U
W
X
Y
R
Convertible
High Boil
Hi-Broil w/ Cont.
Cleaning Panels
Upper Oven
Microwave
Lower-Self
Cleaning
Low boil
Low Boil w/
Cont. Cleaning
Panels
Portable
Self-Clean
Cook Top
Under-Counter
Wall Oven
Wall Oven w/
Cont. Cleaning
Panels
Self-Cleaning
Wall Oven
Micro-
Combination D
S
T
0
1
2
3
4
6
No Width
Required
15" - 18"
20" - 18"
30" - 35"
40" - 42"
36" 0
1
2
3
4
5
6
7
8
9
No Backguard
Plain Rail/
Laminated Top
Plain Rail/
Cutting Board
4" Backguard
w/Auto-Timer
Special
Designation
Standard
Deluxe
Backguard
Special
Designation
Deluxe
Backguard
Double Decker Varible N
L
U
X
1
2
8 Natur
Bottle
Unive
Expo
115 V
230 V
208 V
