Page 20
3. XSEL-R/S/RX/SX/RXD/SXD
14
3.4 Wiring

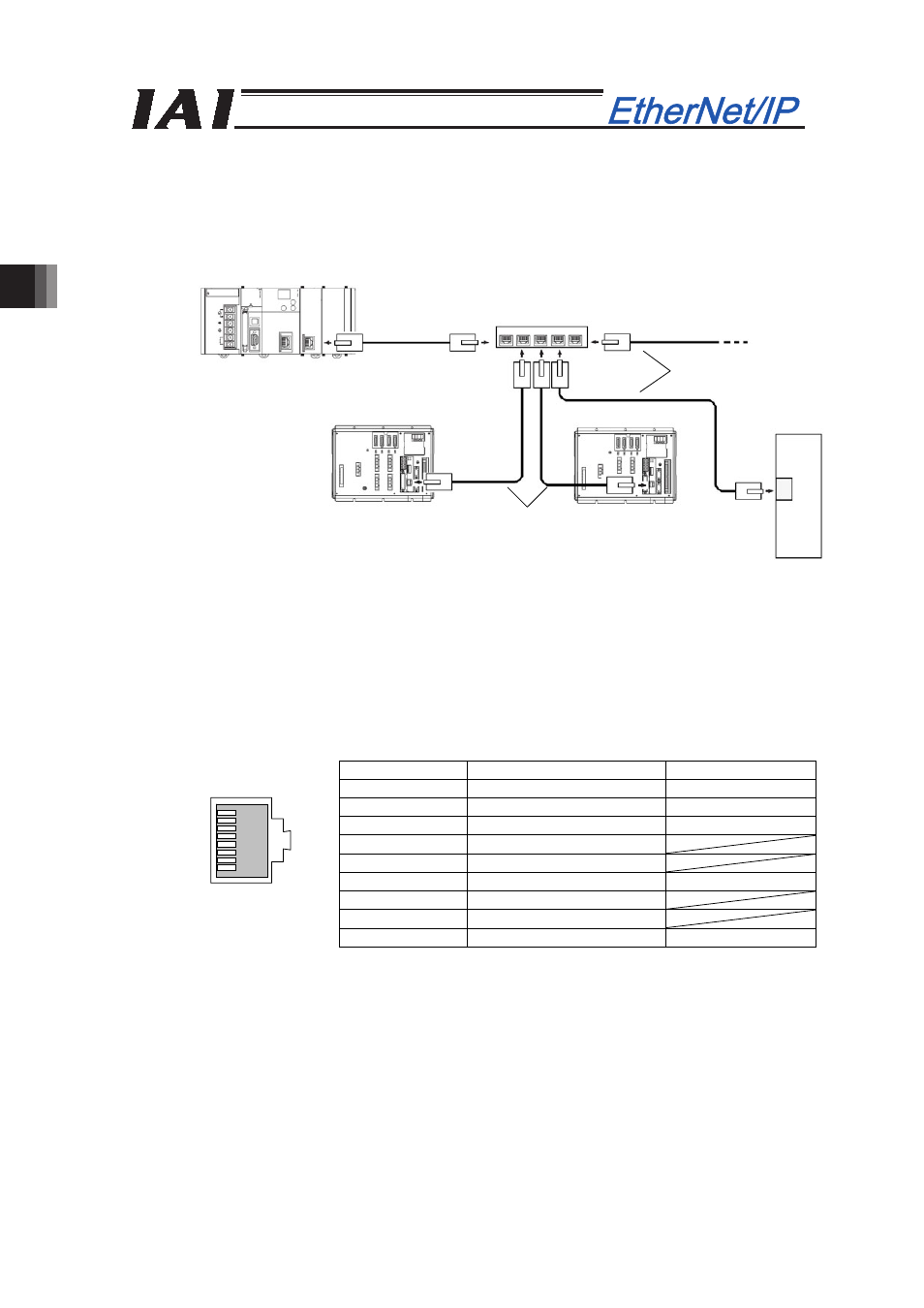

3.4.1 Wiring (example)
PLC (EtherNet/IP Master Unit)
* Ethernet Cable: Straight cable of category 5 or more, 100m max.
(Aluminum tape and braided double-shielded cable are recommended.)
(Note) Terminal processing is not required.
3.4.2 Connector Pin Layout
Pin No.
Signal Name
Signal Abbreviation
1
Data transmitted +
TD+
2
Data transmitted -
TD-
3
Data received +
RD+
4
Not used
5
Not used
6
Data received -
RD-
7
Not used
8
Not used
Connector hood Grounding pin for security
FG
Other
Slaves
XSEL-R
XSEL-S
Ethernet Cable*
Hub
Ethernet
Cable*
Ethernet
Cable*
8
1
RJ45 8-pin
Module Connector
(Controller Side)
