6. Installation
16
6. Installation
6.1 Installation of Main Unit
�
The installation bracket should possess enough stiffness, and also prevent vibration exceeding 0.3G from
being applied to the main unit.
�
Have enough space for the maintenance work.
�
Install the main body in the clearance hole (�10) of a smooth plate of about 1 to 3mm in thickness and fix it. Both
horizontal and vertical are available for the installation orientation.
�
The root of the male screw on the unit possesses (M10 × 1.0) the accuracy of h8. Utilize it for fitting.
�
The maximum tightening torque should be 9.0N•m when using a mount nut including the enclosed one.
Tightening with higher torque may break the unit.

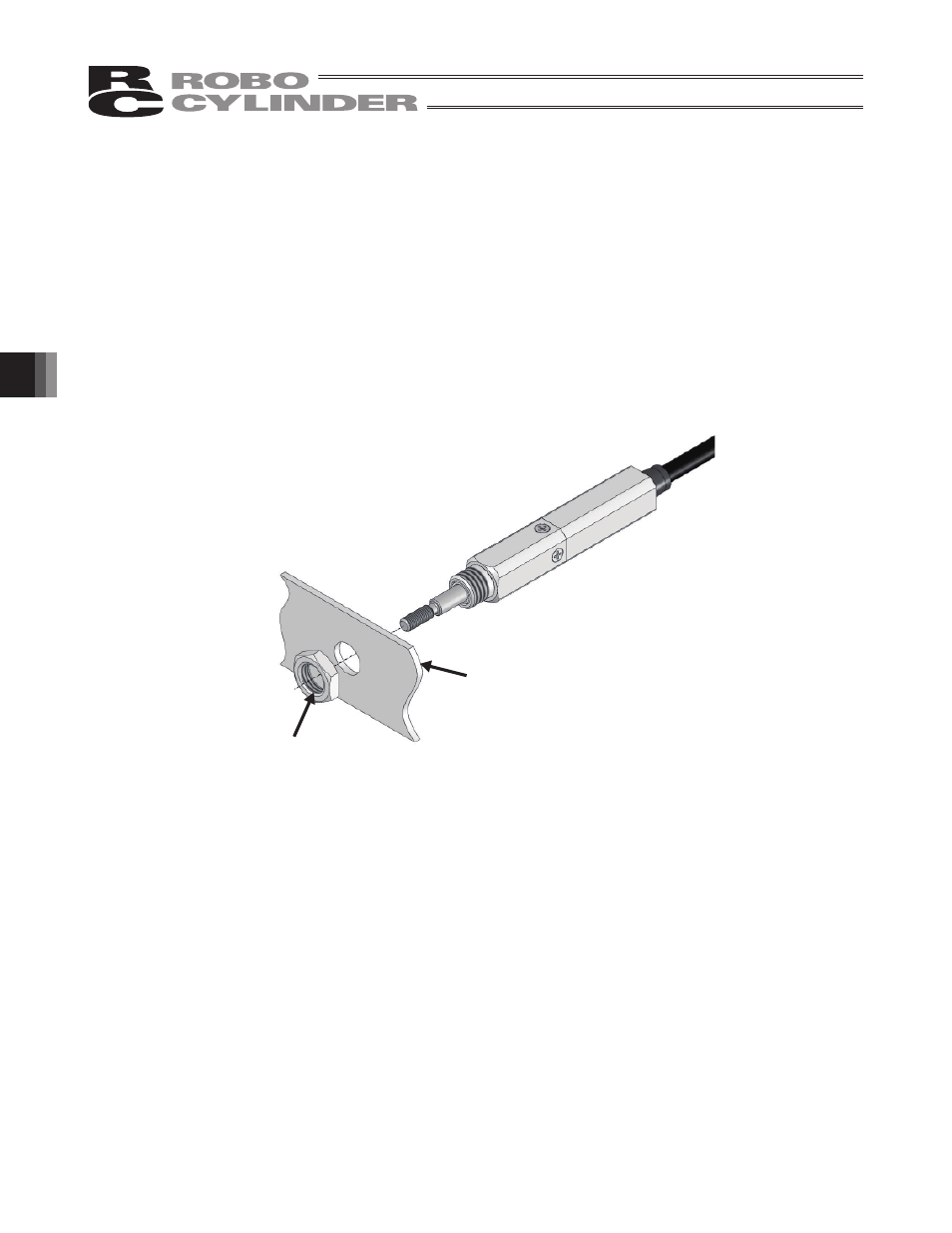

Mount Nut
Attachment Plate
