- Togglodyte Animation Test Tool -
7
Assign
6
Alternate/
Reversed
5
Analog/
Digital
4
Punch
in/out
3
Setup
2
Light
1
Sequencer
Record/
Stop at End
0
Sequencer
Start/Stop
Digital Inputs
Controls
Togglodyte Animation Test Tool
Gilderfluke & Company ¥ Glendale, California
Console/
DMX-512
9-24 VDC 1/4 J-6 In
(from Brick Output)
1/4 J-6 Out
(to Brick Input)
Setup:
select next
Setup:
select last
con alt 76543210
Upper Mouth Open

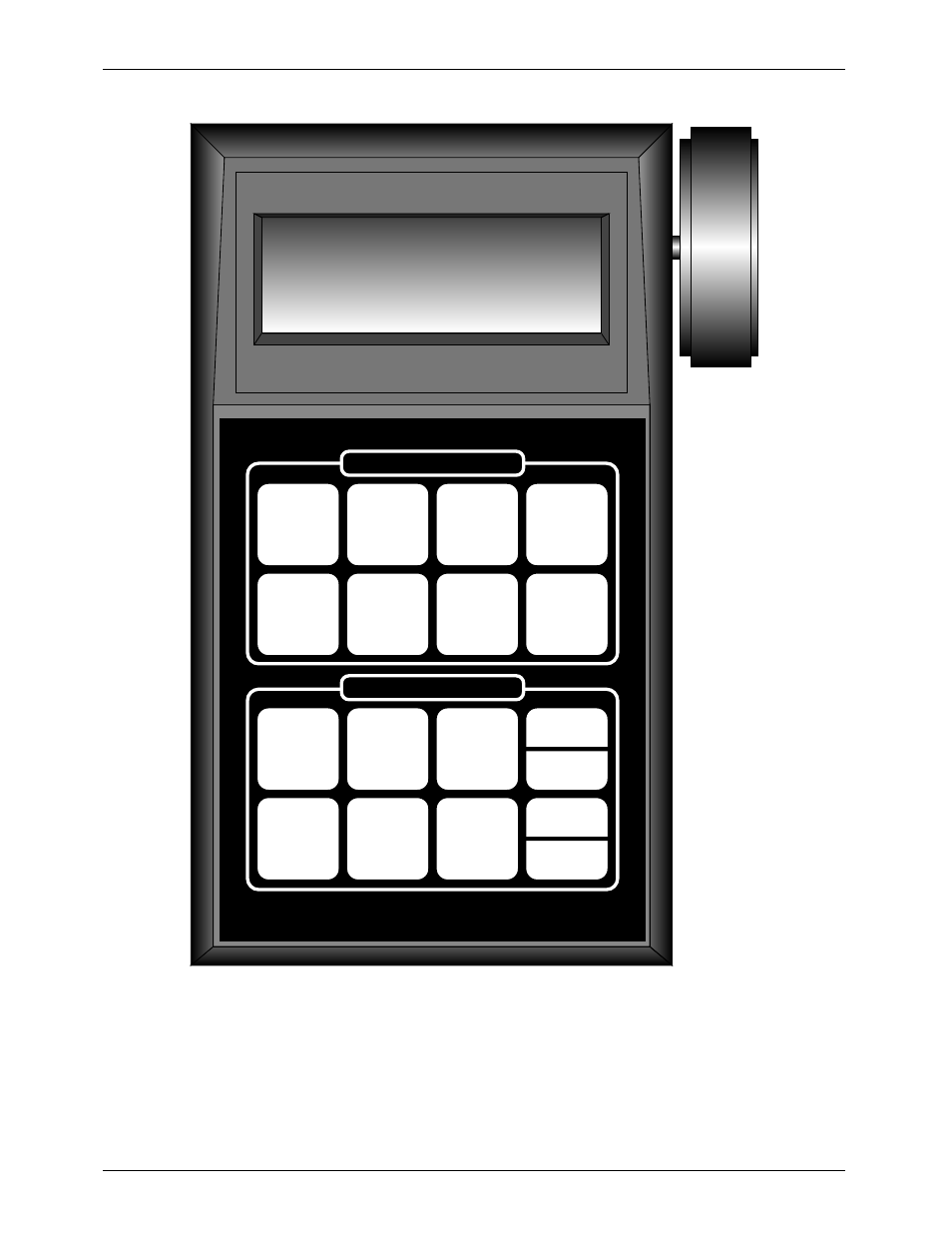

The Togglodyte is a small handheld unit which is typically used by service personnel to manipulate
and move the animated figures that are attached to the Animation Control System. It can also be used
as a simple programming console for generating animation data in real time.
The Togglodyte has a two line LCD display and sixteen keys on its front. It can run from an external
power supply or its onboard battery.
The Togglodyte can attach to a PC¥MACs system:
1) To the Serial Programming Console Connection on the Smpte Card. In this mode, the
Togglodyte acts as a handheld single channel programming console. Any eight bit digital port
