- Double Show Configurations -
Several memory types can be configured to divide the memory into two identical ÔbanksÕ.
When the Micro MACs Brick is switched, the Brick will instantly find itself at the exact same frame
on the other bank.
When using the double show configuration, the Blue Input is used to select between the two
banks. This makes double show configurations incompatible with the external clock.

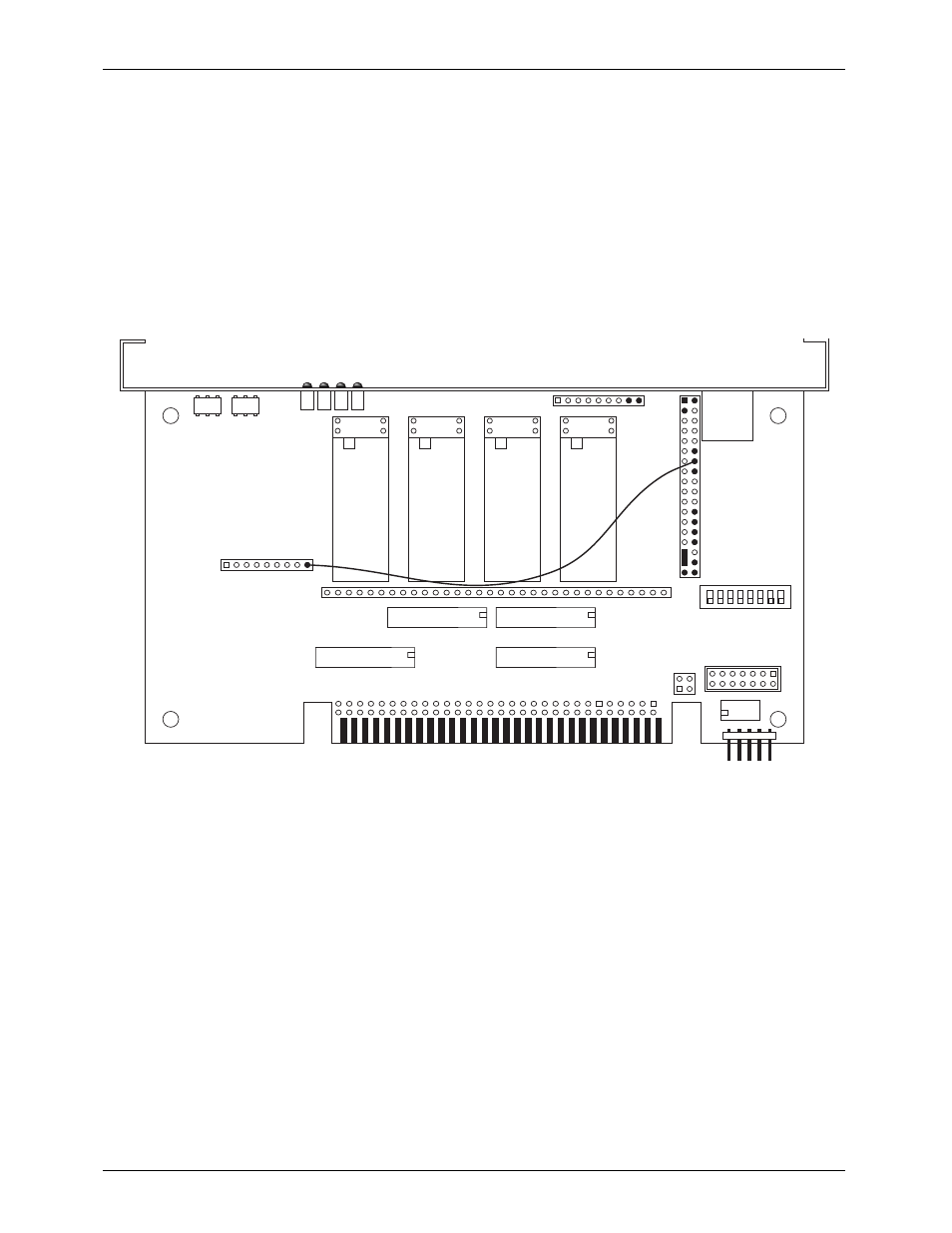

- Double Show using 62256LP Ram -
To configure a Record/Playback Micro MACs Brick for use with 62256LP static Ram Chips for a
capacity of two 32,768 (32K) banks. The RAM chips must be ÔSouthÕ justified, leaving four unused
holes at the top of each socket.
