Securitron EMB_Series User Manual
Page 3
PN# 500-23130
Page 3
Rev. C, 03/11

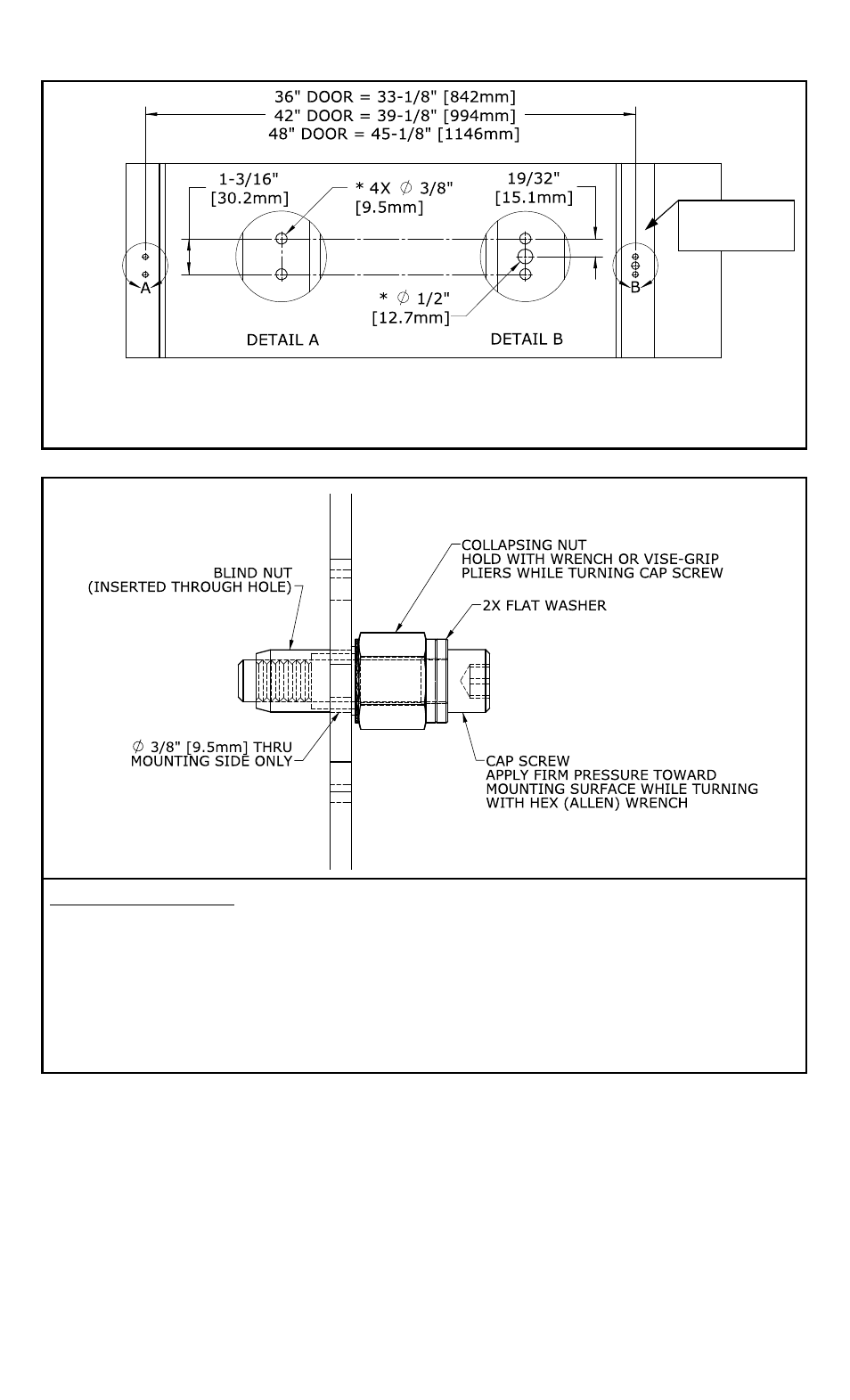

Mounting Diagram
Hollow Metal (Aluminum Frame Glass) Door Preparation Shown
* NOTE: Drill holes through mounting side of hollow doors only!
Blind Nut Installation:
Insert the blind nut of the installation tool into a 3/8” [9.5mm] diameter hole.
Hold the collapsing nut with a 1/2” box end wrench.
While maintaining pressure toward the mounting surface, use a 3/16” hex wrench to tighten
the cap screw and collapse the blind nut.
Once the blind nut is firmly collapsed, remove the tool by unthreading the cap screw from the
installed nut.
Place another blind nut onto the installation tool and install remaining blind nuts using the
same procedure.
Hinge Side
of Door
