ELECTRO-MECHANICAL BAR (EMB) SERIES
INSTALLATION INSTRUCTIONS
1. SPECIFICATIONS
MECHANICAL ELECTRICAL/ENVIRONMENTAL
Physical Size:
Height: 2-5/8” [66mm]
Depth: 1-5/8” [41mm] (from mounting
surface)
Overall Length:
36” Door = 34-1/2” [876mm]
42” Door = 40-1/2” [1029mm]
48” Door = 46-1/2” [1181mm]
Operating Force (Maximum): 15 Lbs. [66.7N]
Maximum Recommended Current:
1.5 Amps @ 30VDC
Environmental (Recommended):
Temperature: 32ºF to 120ºF [0ºC to 49ºC]
Humidity: 10% to 90% RH

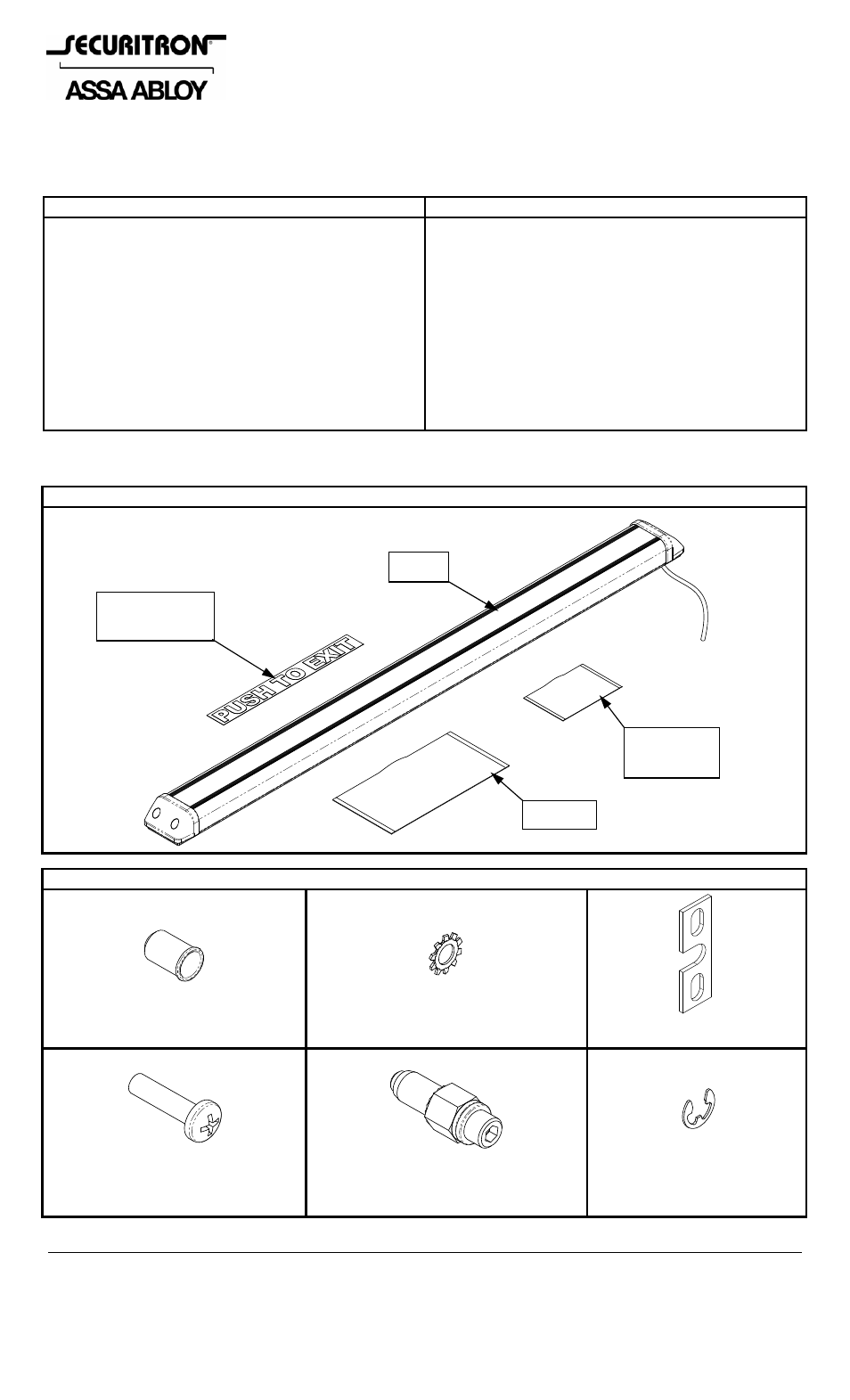

2. COMPONENTS
EMB UNIT PACKAGE
MOUNTING HARDWARE
4X – 1/4-20 Blind Nut 4X – External Tooth Washer 2X – End Mount Retainer
4X – 1/4-20 x 1” Long
Phillips Pan Head
1X – Blind Nut Installation Tool 2X – E-clip
TSB-C
Mounting
Hardware
EMB
Push To Exit
Label
