Securitron FMK-SL - Manual (Page 7)

PN# 500-22190
Page 7 Rev. D, 04/11
Installing the strike “L” Bracket and strike
Adjust the lock “L” bracket (#4) as shown in FIG 8A & 8B. NOTE: Bracket #4 can be
adjusted in any manner necessary to locate the strike as needed for proper gate closure.
Position the strike to the lock, ensure it is aligned properly with the lock (you can energize
the Magnalock to hold the strike or insert the GL1 strike into the latch for ease of alignment)
carefully close the gate and Z bracket until it touches the strike. Mark the outer edge outline
of the strike, open the gate and position the strike template in the outlined area. Mark the
mounting and roll pin hole locations as needed, center punch and drill appropriate holes
(13/64” drill bit and 1/4-20 tap for GL1 strike, or 5/16” for Magnalock strike center hole and
roll pins), attach as shown in FIG 8A & 8B.

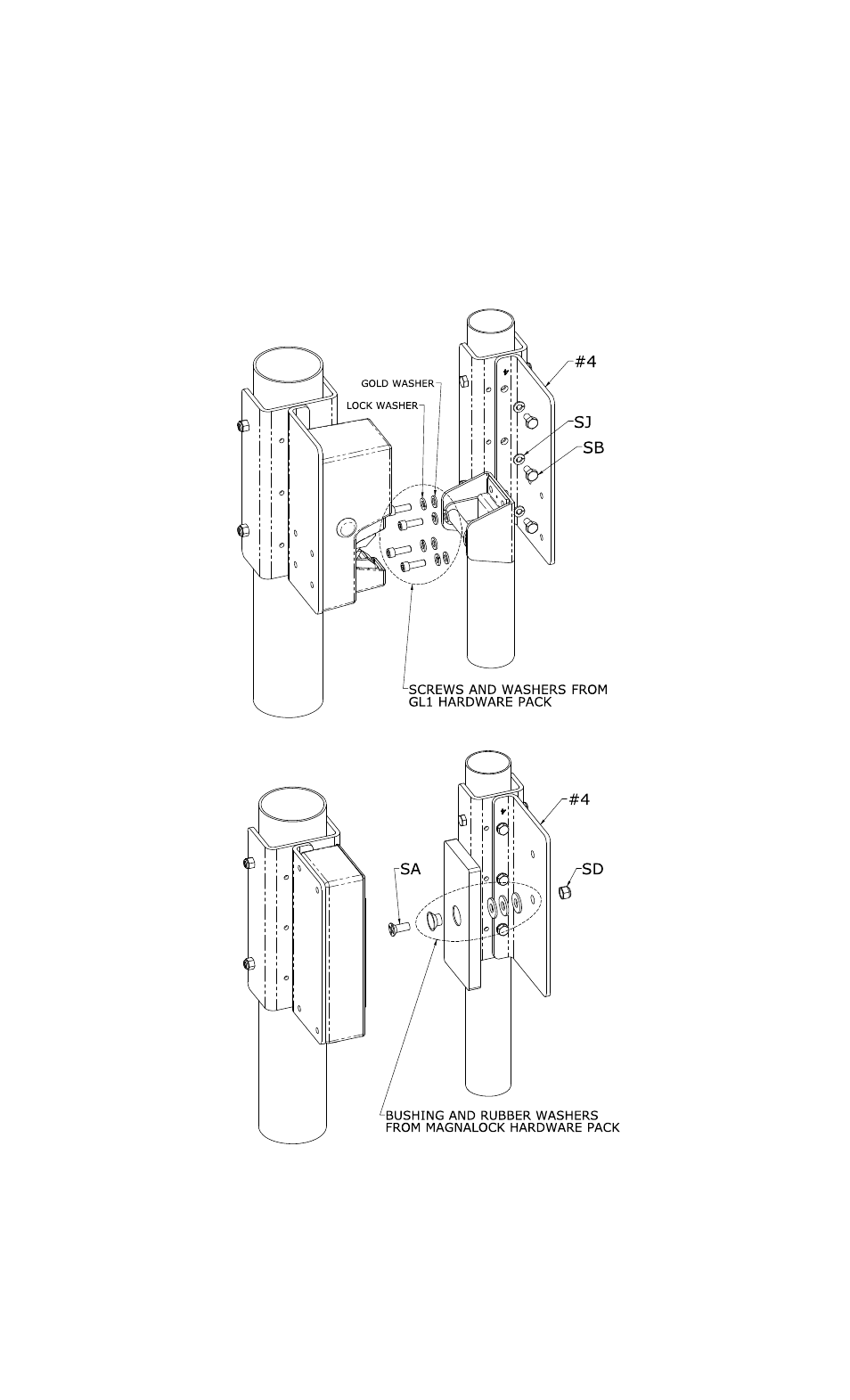

FIG 8A
FIG 8B
MAGNACARE  LIFETIME REPLACEMENT WARRANTY
For warranty information visit www.securitron.com/en/site/securitron/About/MagnaCare-Warranty/
