Securitron SAM User Manual
Page 2
PN# 500-10440
Page 2
Rev. F, 02/12

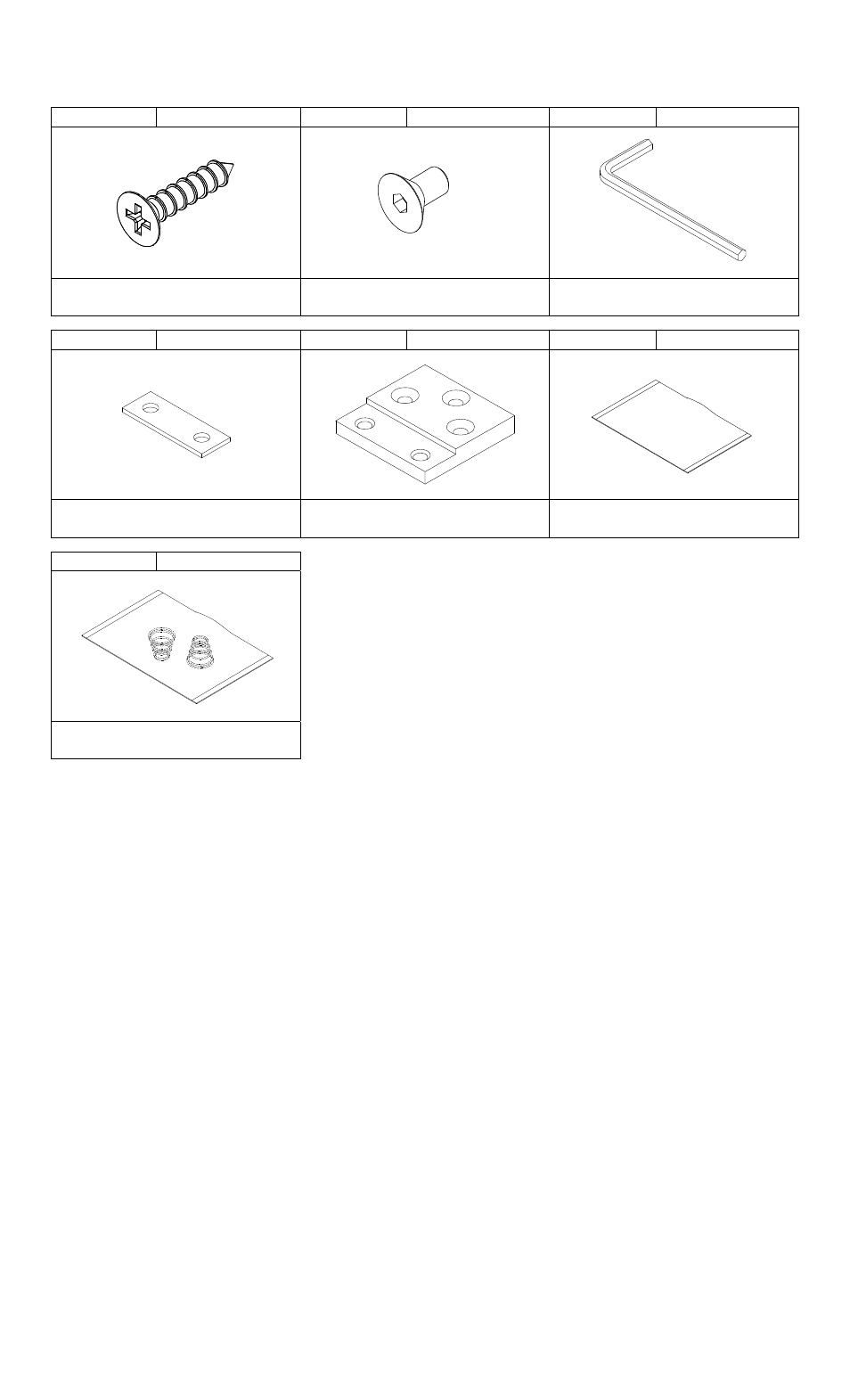

3.1 HARDWARE
10X
20X
1X
Phillips Flat Head
#10 X 3/4” Type “A”
Socket Flat Head
10-32 X 3/8”
Hex Wrench
1/8”
8X
4X
1X
Shim Plate
Flush Mount Bracket
Thread Locking Compound
Pack
1X
Floor Install Replacement
Spring Pack (2 Springs)
4 RECOMMENDED TOOLS
Router or Saber Saw
1/8” Hex Key (Allen Wrench) - included
Hammer
Measuring Instrument (Ruler/Tape Measure)
Chisel Masking
Tape
Center Punch
Fish Tape or Lead Wire
Power Drill
Wire Strippers/Cutter
9/64”, 13/64” & 5/16” Drill Bits
Crimp Wire Connectors
3/8” Diameter X 82° Countersink Bit
Crimp Tool
Phillips and Standard Screwdrivers
Multimeter
5 INSTALLATION INSTRUCTIONS
5.1 Pre-Installation Survey
It is recommended that an initial on sight survey be performed. A method of mounting should
be determined and an installation plan should be reviewed as follows:
Physical strength of mounting areas should be strong enough to meet or exceed the holding
force of the required Magnalock.
Placement of the Magnalock wiring and protection from potential damage due to intruders or
vandals external attack should be considered during the survey.
Accessibility should be considered for prevention of any potential safety hazard.
