Securitron HHSR - Manual (Page 3)

PN# 500-16600
Page 3 Rev. D, 07/11

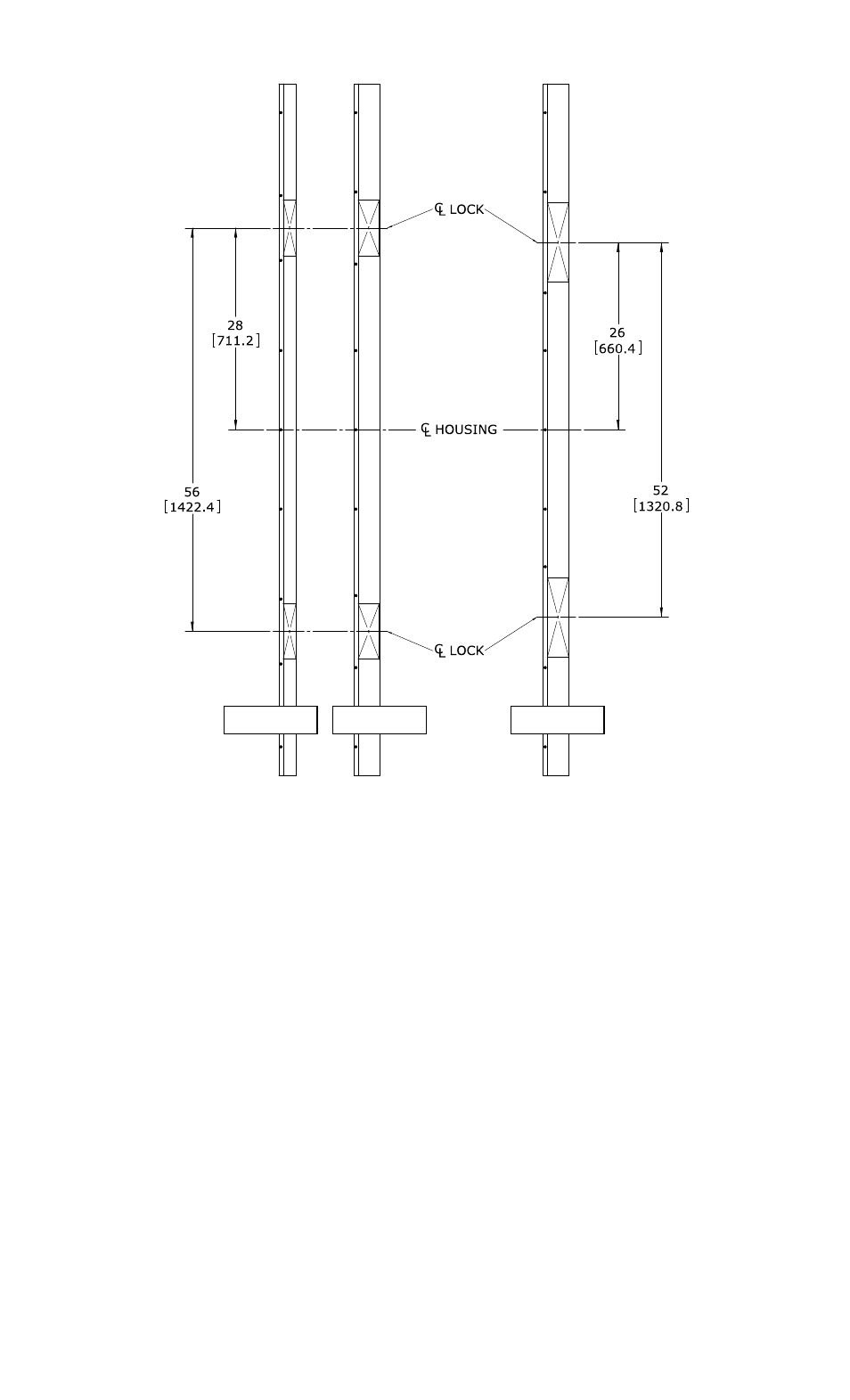

Figure 2
4.1 STRIKES
While maintaining the housing assembly in the desired position, mark the center of the housing
on the door frame. Measure to each side of this center mark (using the dimensions shown in
Figure 1 or Figure 2 as applicable) to indicate the centers of the magnets. Transfer these two
marks to the door(s). This will provide the proper lateral position of the strike holes from the
center of the housing.
NOTE: Full length HHD housings are cut in half to create the HHSL and HHSR models.
Therefore, to locate lateral center of the strike for these models, use the 5” [127.0]
dimension for M32/M62 models or the 7” [177.8] dimension for M82 models as
previously shown in Figure 1. This will indicate the proper distance to the center of
the strike from the end of the shortened housing.
The following illustrations display the required distance from the bottom of the mounting plate
surface to the center of the strike mounting hole through the door.
HVD-32 HVD-62 HVD-82
