Logic panel terminal designation illustration – Robertshaw SlimZone Deluxe ZONE CONTROL SYSTEM User Manual
Page 22
SlimZone Deluxe
18
Robertshaw SlimZone Deluxe
Master Logic Panel
INPUT
Detail D
1/4”
NOTE: Use standard nonshielded 18-24 AWG copper wire for all terminal landings.
Strip wire insulation no more than 1/4” and after landing wire to designated
terminal, use a proper sized flat bladed screwdriver to secure the wire.
CAUTION! Do not use excessive force when tightening the terminal screws as
terminal block connections to the printed circuit board could crack or break.
18-24 AWG copper wire
SCC
SMK
CLK
BPC
LBP
HBP
LIMC
LLIM
HLIM
OPTIONAL
TIMER
OPTIONAL
Robertshaw
Smoke Detector
OPTIONAL
Robertshaw
HILO-200
HI
LO
OPTIONAL
Robertshaw
ECL-35 LOW
LIMIT
OPTIONAL ODT
CONTROLS
BALANCE POINT
INPUT
NOTE: All input terminals are for normally open, dry contact closure devices.

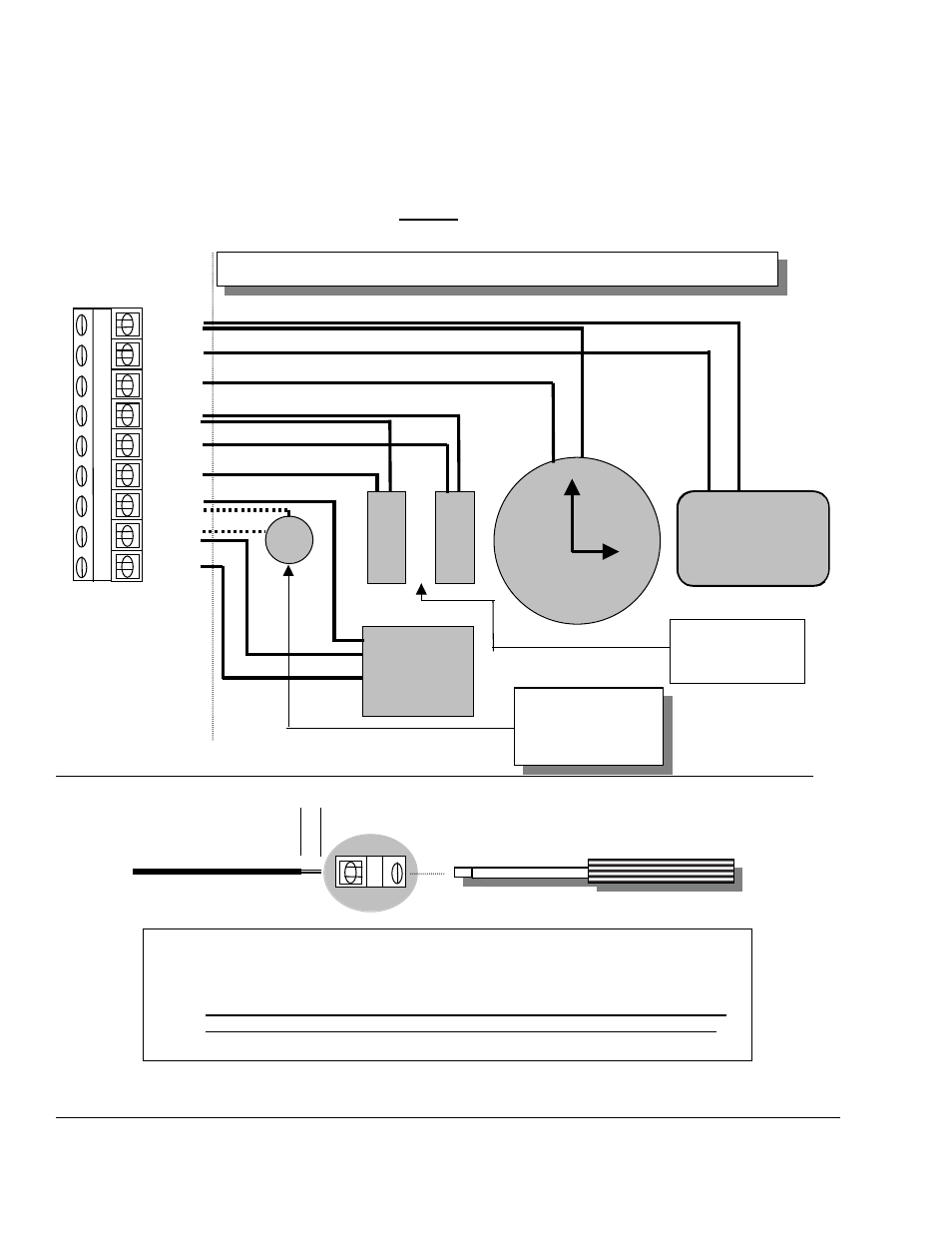

16. LOGIC PANEL TERMINAL DESIGNATION ILLUSTRATION
