Logic panel terminal designation illustration, Slimzone deluxe 17 – Robertshaw SlimZone Deluxe ZONE CONTROL SYSTEM User Manual
Page 21
SlimZone Deluxe
17
Robertshaw SlimZone Deluxe
Master Logic Panel
MODE
Detail C
1/4”
NOTE: Use standard nonshielded 18-24 AWG copper wire for all terminal landings.
Strip wire insulation no more than 1/4” and after landing wire to designated
terminal, use a proper sized flat bladed screwdriver to secure the wire.
CAUTION! Do not use excessive force when tightening the terminal screws as
terminal block connections to the printed circuit board could crack or break.
18-24 AWG copper wire
SW
COM
HEAT
COOL
OFF
EH
FAN
OPTIONAL
Robertshaw
SW10
AUTO
HEAT
COOL
OPTIONAL
SPST
SWITCH
OPTIONAL
TIMER
MODE

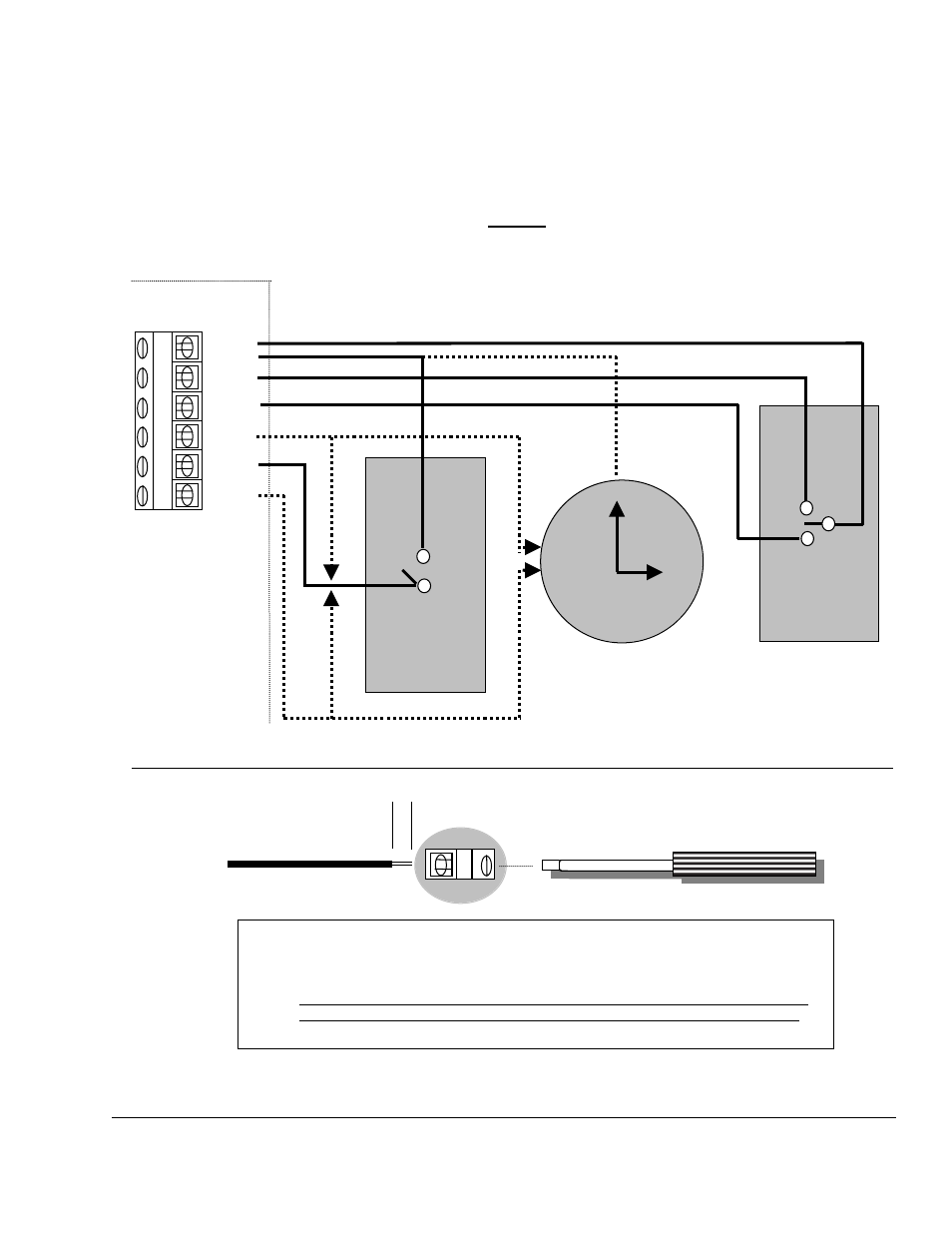

15. LOGIC PANEL TERMINAL DESIGNATION ILLUSTRATION
