Robertshaw 400 SERIES User Manual

Tx400, Iin ns st ta al ll la at tiio on n d da at ta a

background image

DIAL TEMPERATURE

ADJUSTABLE HEAT

FIXED COOLING

MODEL NUMBER

SETTING RANGE

ANTICIPATION

ANTICIPATION

APPLICATION

TX400-400

48°-85°F

.18 to 1.0 Amps

STD

HEAT/COOL/ZONE

TX400-401†

48°-85°F

.18 to 1.0 Amps

SPECIAL

GAS AIR CONDITIONING ONLY

TX400-402

48°-85°F

.5 to 1.5 Amps

STD

HEAT/COOL/ZONE

TX400-403

39°-75°F

.18 to 1.0 Amps

STD

HEAT/COOL/ZONE

RX400-404

48°-85°F

2.0 Amps Fixed

STD

ELECTRIC HEAT/COOLING

DESCRIPTION

The TX400 is a low voltage wall mounted room temperature controller. The heart
of the TX400 thermostat is a SPDT sealed-in-glass switch, hermetically sealed
to protect from dust and moisture. This switch does not require the critical level-
ing necessary with other types of thermostats. A positive action of the switch is
obtained by a magnet mounted on the temperature sensing coiled bimetal.

The basic TX400 can be used as a heating only, cooling only, or zone system
thermostat depending on how the subbase is wired (see schematic diagrams
below).

The TX400, when employed with the DA490 Series, covers all types of heating
and cooling systems. See the DA490 Series for switching arrangements and
schematics.

A decorative wall plate is included with all models. lt can be used to cover old ther-
mostat mounting marks or to mount the thermostat on an electrical conduit box.

HOME OWNER NOTE:
Temperature Selection:
To select a desired temperature after the thermostat has been installed, turn the
dial until the red index point indicates the desired temperature. The actual room
temperature can be noted on the scale on the lower portion of the dial. Design
features have made it easy to find the setting you require for comfort and to read
the instrument for reference. Remember that the difference between comfort and
discomfort is usually no more than 1 or 2 degrees. Make only small adjustments
to meet changing conditions.

MODEL INFORMATION*
USE COMPLETE MODEL NUMBER WHEN ORDERING

† For gas air conditioning systems.
*SEE DA490 SERIES SUBBASES FOR SWITCHING SUBBASE REQUIREMENTS.

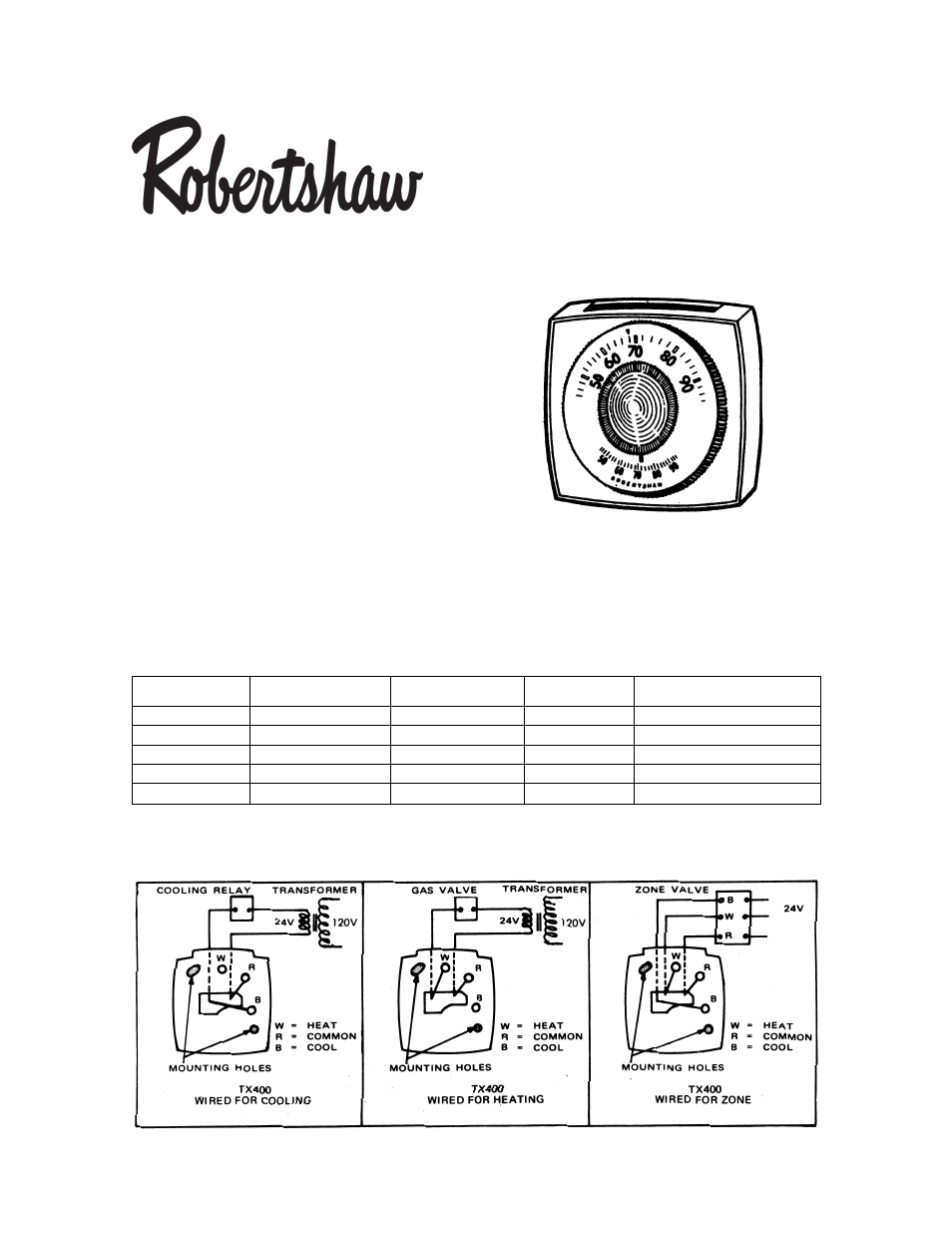

SCHEMATIC DIAGRAMS SHOWING BASIC TX400 THERMOSTAT WIRED FOR EITHER HEATING, COOLING, OR ZONE SYSTEM.

NOTE: A SUITABLE LIMIT CONTROL IS REQUIRED IN EITHER

THE 24-VOLT OR 120-VOLT SIDE OF TRANSFORMER.

IIN

NS

ST

TA

AL

LL

LA

AT

TIIO

ON

N D

DA

AT

TA

A

TX400

HEATING/COOLING 24 VOLT

THERMOSTAT (CM260)

SPECIFICATIONS
Electrical. . . . . . . . . . . . . . . . . . . . . . . Low Voltage, 30 VAC, 1.5 Amps. Max.
Switch - (SPDT)

Heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opens on Temperature Rise
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Closes on Temperature Rise

Adjustable Heat Anticipation . . . . . . . . . . . . . . . See Model Information Chart
Fixed Cooling Anticipation. . . . . . . . . . . . . . . . . See Model Information Chart
Setting Range. . . . . . . . . . . . . . . . . . . . . . . . . . See Model Information Chart
Thermometer Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44° - 96°F
Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20°F (Dial)
Dimensions . . . . . . . . . . . . . . . . . . . . . 3-1/4” Wide, 3-5/8” High, 1-1/2” Deep
Finish .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Beige

CONTROLS COMPANY
