Front view (not actual size), Rear view (not actual size)

background image

Not all combinations of installation are detailed. The basic idea of the plate is to
mount it to the wall or 2x4 box and then mount the thermostat to the plate.

NOTE:
When mounting the thermostat to the plate using the self tapping screws, do not drill
the hole larger than 1/8 inch to ensure the threads have something to grip.

10-531 TAP-1 THERMOSTAT ADAPTOR
PLATE INSTALLATION INSTRUCTIONS

ON DRYWALL:
Use plugs and screws
provided with
thermostat and use
holes 'A' for
preferred orientation.

ON 2x4 BOX
(vertical):
Use machine screws
provided and drill out
holes 'A'. Put screws
through wall bracket
and wall plate.

Models: All Robertshaw Products

PM

Fr

Program

Outdoor

Clock

Fan

Set Temp

Mode

Hold

Resume

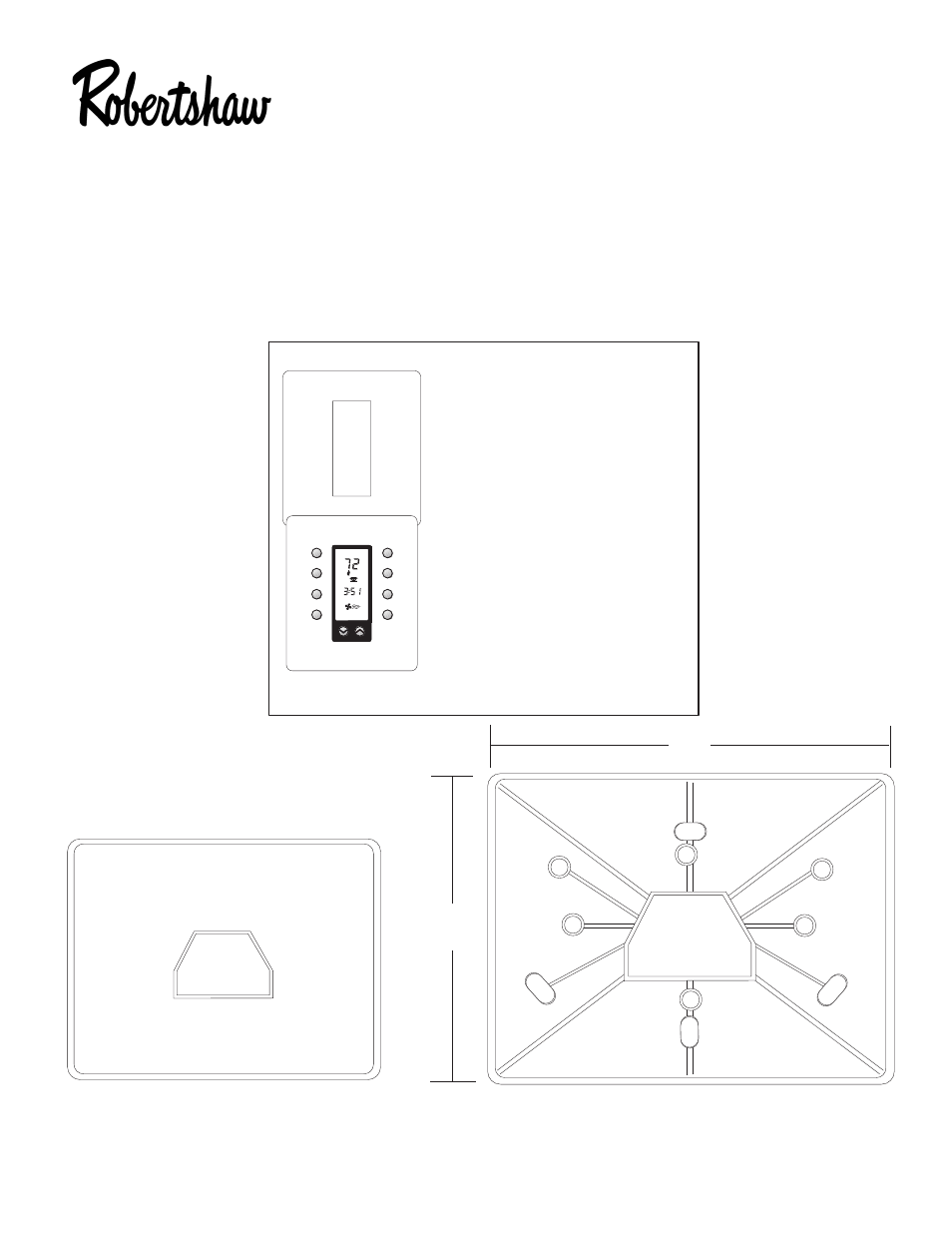

FRONT VIEW (Not Actual Size)

5.25"

7"

A

A

B

B

B

C

C

C

D

D

REAR VIEW (Not Actual Size)

111-117
