Robertshaw 200 SERIES User Manual

200 series, Iin ns st ta al ll la at tiio on n d da at ta a, Heating or cooling thermostats

background image

LOCATING THERMOSTAT

Your thermostat is a sensitive instrument. For accurate temperature
control and comfort, correct location is very important.

On new installations, the guidelines listed below should be followed as
closely as possible. When replacing an old thermostat, install the new
one in the same location unless these guidelines suggest otherwise.

1. Locate the thermostat on an inside wall about five feet off the

floor where it is easy to install, service, and adjust. It should be
in a room that is used often, such as a living room or family room.

2. Do not install it where there are unusual heating conditions, such

as in direct sunlight, or near a lamp, radio, television, radiator,
register, fireplace, or other heat producing appliance. Also,
check for hot water pipes within the wall, or a stove on other side
of wall.

3. Do not locate in unusual cooling conditions, such as on an out-

side wall, on a wall separating an unheated room, or in drafts
from stairwells, doors, or windows.

1-190D

LITHO IN U.S.A. 11/00 ©2000 Robertshaw Control Company 30965E

INSTALLATION INSTRUCTIONS
Shut off power equipment before servicing

SPECIFICATIONS

Heat anticipation range

24 volt heating. . . . . . . . . . . . . . . . . . . . . . . . . .18 to 1.0 Amps
Millivolt and 2-wire zone . . . . . . . . . . . . . . . . . . . . . . . . . . none
Cooling and 3-wire zone. . . . . . . . . . . . . . . . . . . . 4700

, fixed

Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48°-65°F

except
200-403 and 503 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39°-77°F
200-405 and 505 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48°-65°F
200-406 and 506 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39°-65°F
200-605 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78°-86°F

Dimensions. . . . . . . . . . . . . . . . . . . . . . . 2-13/16” rounded square

1-5/16” deep

Electrical rating

24 volt models . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 VAC max.

1.0 Amp max.

Millivolt models . . . . . . . . . . . . . . . . . . . . . 250 to 750 millivolts

Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2°F (nominal)
Switch action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPST

except SPDT 200-901

The Energy Control Company

®

The 200 Series Thermostats are decorator designed and engineered
for outstanding performance. All models feature Uni-Line’s famous
sealed-in-glass switch which requires NO LEVELING AND OPTI-
MUM PROTECTION FROM SWITCH CONTAMINATION.

Models are available for 24 volt heating or cooling, millivolt heating,
2- or 3-wire zone, and with energy saving heating or cooling ranges.

A decorating wall plate is included with all models to cover old ther-
mostat mounting marks. (See photo at right.)

CAUTION

THIS DEVICE SHOULD BE INSTALLED BY A QUALIFIED SERVICE

TECHNICIAN WITH DUE REGARD FOR SAFETY, AS IMPROPER

INSTALLATION COULD RESULT IN A HAZARDOUS CONDITION.

IIN

NS

ST

TA

AL

LL

LA

AT

TIIO

ON

N D

DA

AT

TA

A

200 SERIES

HEATING OR COOLING

THERMOSTATS

CONTROLS COMPANY

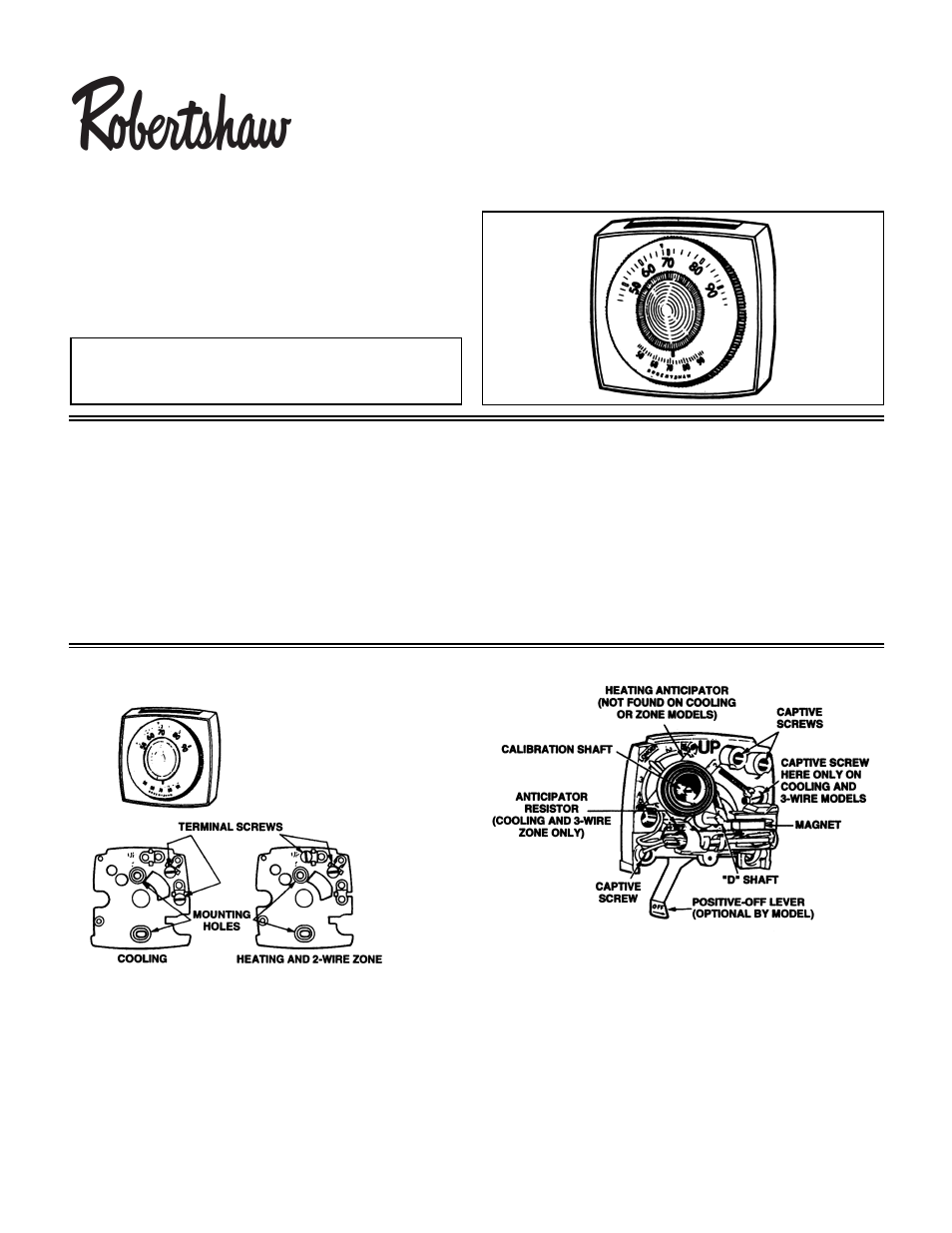

FIGURE 1

COVER

FIGURE 2

SUBBASE

FIGURE 3 - BODY
