Installation / Owners Manual
Goose Box
2009 Cequent Performance Products, Inc Sheet 2 of 7 94621IN 3/6/2012 Rev. C
Form: F205 Rev A 5-6-05

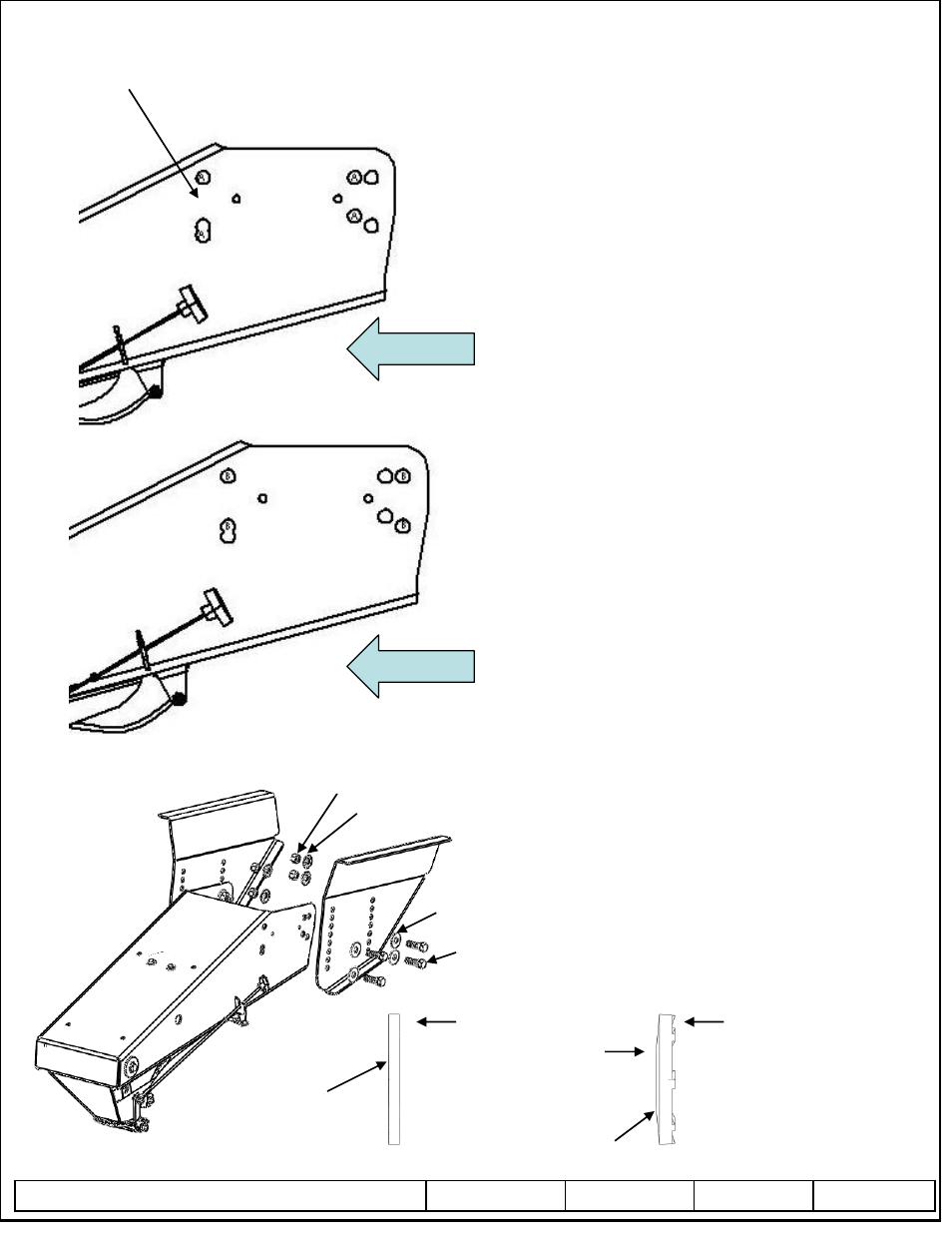

Figure 2
Trailer Forward
Typical Bolting
Matching Wing Sets
For Wing Set Make and Model Numbers:
Lippert 1621
Lippert 1621HD Check Trailer Rating
(1621HD unit will require additional hole to be drilled)
(Match drill hole to wing. Approximate location noted by the “x”)
Lippert 0719 Check Trailer rating
Fabex PB-600 Series Check Trailer Rating
Use The Bolt Hole Locations Noted By The “A”
The pattern is a 7.875” horizontal & a 2” vertical
Note: It is recommended that you install the Goose Box
one (1) position lower than the original pin box.
Figure 3
Trailer Forward
For Wing Set Make and Model Numbers:
Lippert 1716
Lippert 1116 Check Trailer Rating
Lippert 0115 Check Trailer Rating
Use The Bolt Hole Locations Noted By The “B”
The pattern is a 8.75” horizontal & a 2.5” vertical
Note: Spacer Kit 61301 Is Needed For These Model Wings
Please Refer To The Instructions In Kit 61301 For
Installation Of The Spacer Kit.
Hardware Kit Contains: (8) 5/8-11x2 Gr.8 Bolts
(8) 5/8-11 Gr.8 Nuts / (8) 5/8 HD Flat Washers
(8) 5/8 Conical Lock Washers
Bolts & Flat Washers Are Installed From The Outside,
Conical Lock Washers and Nuts On the Inside.
Torque All To 210 ft. lbs.
5/8-11 Grd. 8 Nut
5/8 Conical Washer
5/8-11x2 Grd.8 Bolt
5/8 Flat Washer
Note: The Figure Shows a Typical Installation
The Wing Is Moved Away To Better
Show The Hardware Installation.
Figure 4
Typical Flat
Washer,
Install On
Outside Of
Wing.
Typical Conical Washer,
Note Crowned Shape &
Teeth. Install On Inside
Of Pin Box With Teeth
Against Inside Of Pin Box.
Nut
Side
5/8 Flat Washer
5/8 Conical Washer
Note: It is recommended that you install the Goose Box
one (1) position lower than the original pin box.
x
1621HD
Additional
Hole
