REESE® Elite™ Series

Pop-

In™ Gooseneck Ball and Safety Chain Lock Assembly

Check all the boxes for all the components listed in

Figure 1

and become familiar with component terminology.

To install Pop-

In™ Gooseneck ball - Lift handle in center of the ball and rotate 90 degrees (see figure 2). Insert Gooseneck

ball assembly in the receiver tube in the bed of the truck with the ball bearings oriented side to side of the truck bed. Turn
the center handle 90 degrees so that it drops in the slit in the top of the ball. If the center handle does not retract fully, rotate
the ball until the handle seats itself in the slot (see figure 3).

To install the Safety Chain Lock Assemblies, place the Safety Chain Lock Assembly on top of the q-turn pucks (see Figure 6
below). Rotate the Safety Chain Lock Assembly 90 degrees until the center lock drops into place (see Figure 4). To
remove the Safety Chain Lock Assembly lift the center lock and rotate the complete assembly 90 degrees ( see Figure 5).

When not using the Pop-

In™ Gooseneck ball place it in the supplied bag (4) and put the gooseneck cover (3) in its place.

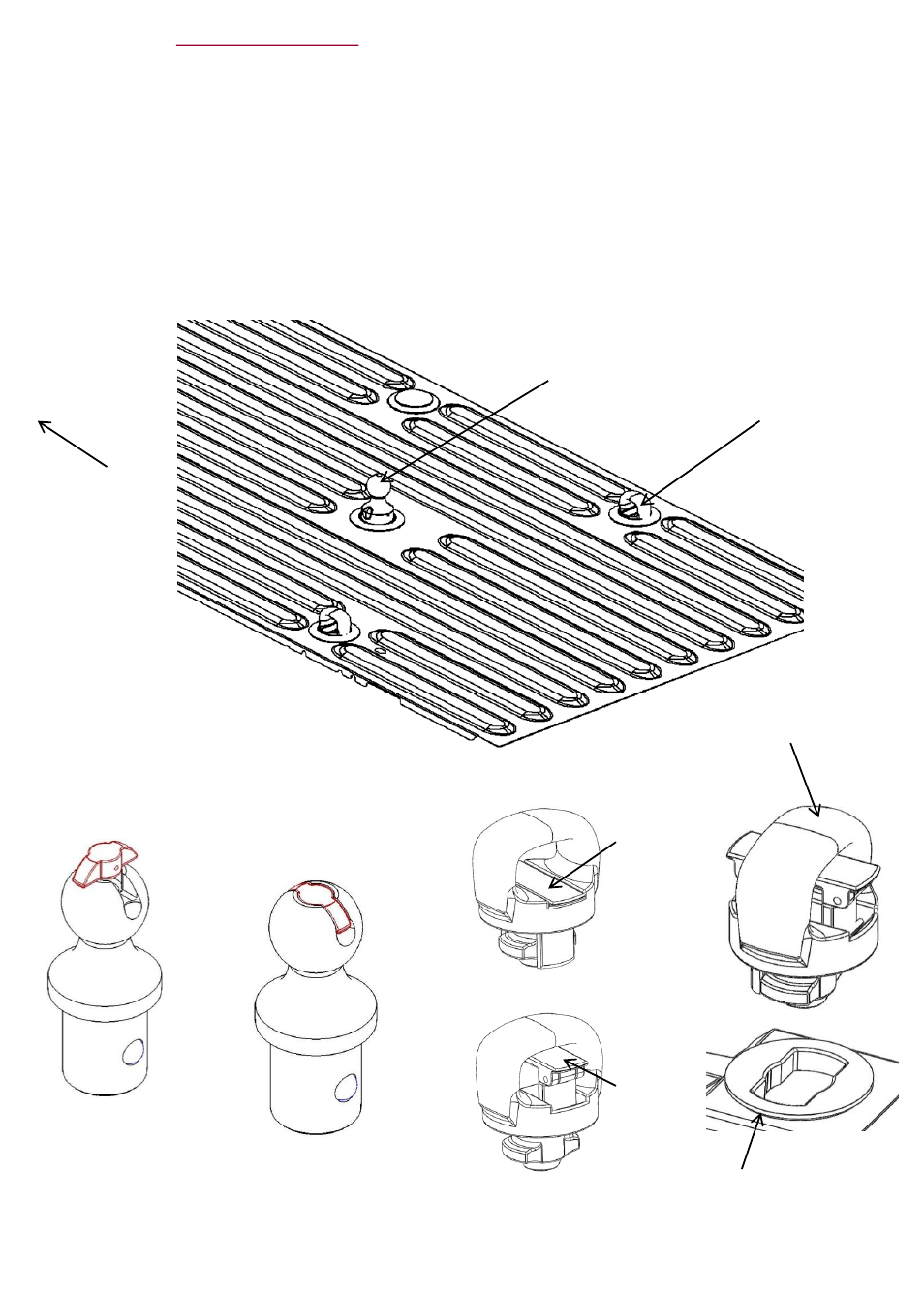

Figure 3 -
Locked

Figure 2

–

Unlocked

Figure 5 -
Unlocked

Figure 4 - Locked

Q-turn puck mounted
below truck bed

Safety chain lock assembly

Figure 6

Front of Vehicle

Locked
Position

Unlocked
Position
