Reese 30074 RAIL KIT - Manual (Page 7)

30074
Rev. F 6-27-07 30074N Sheet 7 of 11 z 2006, 2007 Cequent Towing Products

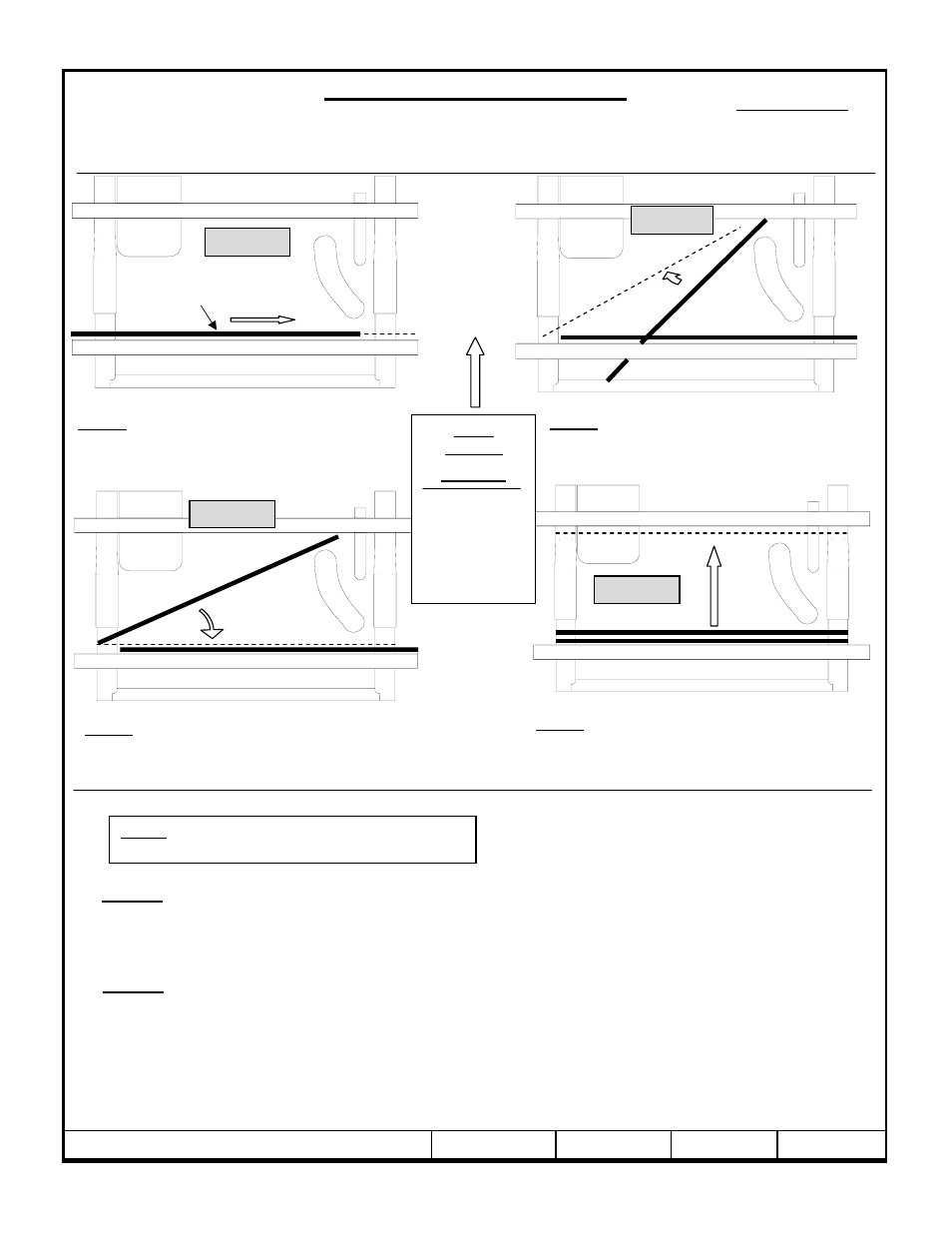

Step 3 : Slide the rail across so that it extends over
the frame on the passenger side and does not rest
on the frame on the Driver’s side .
Step 5 : Rotate the rail up and over the exhaust so
that it is against the rear rail.
Step 6 : Slide the front rail forward with both ends
resting on the frame. Slide the rear rail to the left so
that it rests evenly on both sides of the frame.
Figure 11.
Figure 13.
Figure 14.
Figure 12
Installation Instructions
READ THOROUGHLY BEFORE BEGINNING
Part Numbers:
Signature Series Rail Kit
Dodge Ram Trucks-all, including Mega-cabs
Truck
Forward
Top View
Do not use
these steps
for Mega-cab
trucks. See
Step 6a.
Below.
Step 4 : Insert the front rail in the same manner as
the rear rail so that it rests on the frame
(Driver’s side).
NOTE! Mega-cab trucks require that you install
the cross rails in either of the options below.
Hitch
cross rail
6a.
Option A:
Drop exhaust tailpipe system to install hitch cross rails and
follow steps 1-6 above.
Option B:
Loosen or remove truck bed from frame to allow access to slide
hitch cross rails across top of frame from Driver’s side wheel
opening. By loosening all (4) truck bed bolts you may be able to tilt
truck bed up on Driver’s side to slide hitch cross rails across top of
truck frame without removing bed completely.
