Reese 30047 16K FIFTH WHEEL - Manual (Page 10)

13
14
15
16
17
18
19
20
21
26
27
28
29
30
31
32
33
35
33
37
38
39
40
41
42
36
34

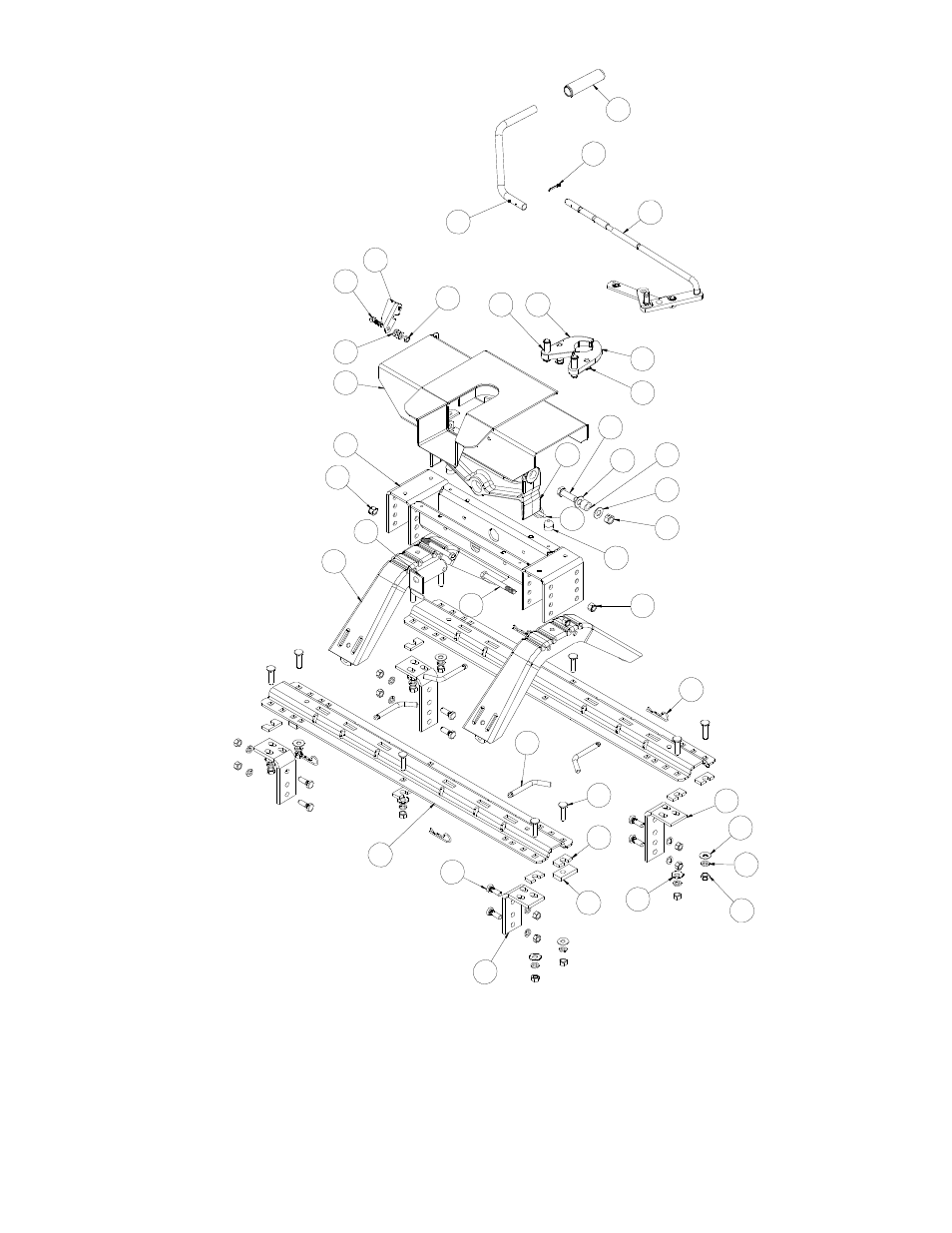

Fig. 19
SEPARATE BASERAIL KIT
PART #30035 QTY.
1. LONG BRACKET (2)
2. SHORT BRACKET (2)
3. FILLER SPACER (10)
4. SPACER (2)
5. CARRIAGE BOLTS (10)
6. KNURLED BOLTS (8)
7. 1/2” NUTS (18)
8. 1/2” LOCKWASHERS (18)
9. 1/2” SERRATED WASHERS (6)
10. 1/2” FLAT WASHERS (4)
14. 4 1/2” CARRIAGE BOLT (2)
15. TUBE SPACER (2)
25. BASERAILS (2)
30047IN-09FEB20F PCN11701 ©2001 REESE PRODUCTS, INC LITHO IN USA
1
2
3
4
5
6
7
8
9
10
25
11
12
10
16K 5TH WHEEL PCS.
11. LONG PULL PIN (4)
12. SPRING RETAINING PIN(4)
13. L.H. JAW
(1)
14. R.H. JAW (1)
15. PIN (2)
16. RETAINER RINGS (6)
17. ACTUATING HANDLE (1)
18. LATCH (1)
19. 3/8” BOLT (1)
20. 3/8” FLAT WASHER (1)
21.3/8” LOCK NUT (1)
22.SPRINGS (2)
26. HEAD ASSEMBLY (1)
27. HEAD SUPPORT (1)
28. SIDE BRACKETS (2)
29. PIVOT BEAM (1)
30. PIVOT PIN (1)
31. KLIK-PIN (1)
32. 1/2-13” X4 1/2” BOLTS (4)
33. 1/2” LOCK NUTS (4)
34. COTTER PIN (1)
35. HANDLE, TUBE (1)
36. HANDLE GRIP (1)
