Reese 30054 30K FIFTH WHEEL - Manual (Page 11)

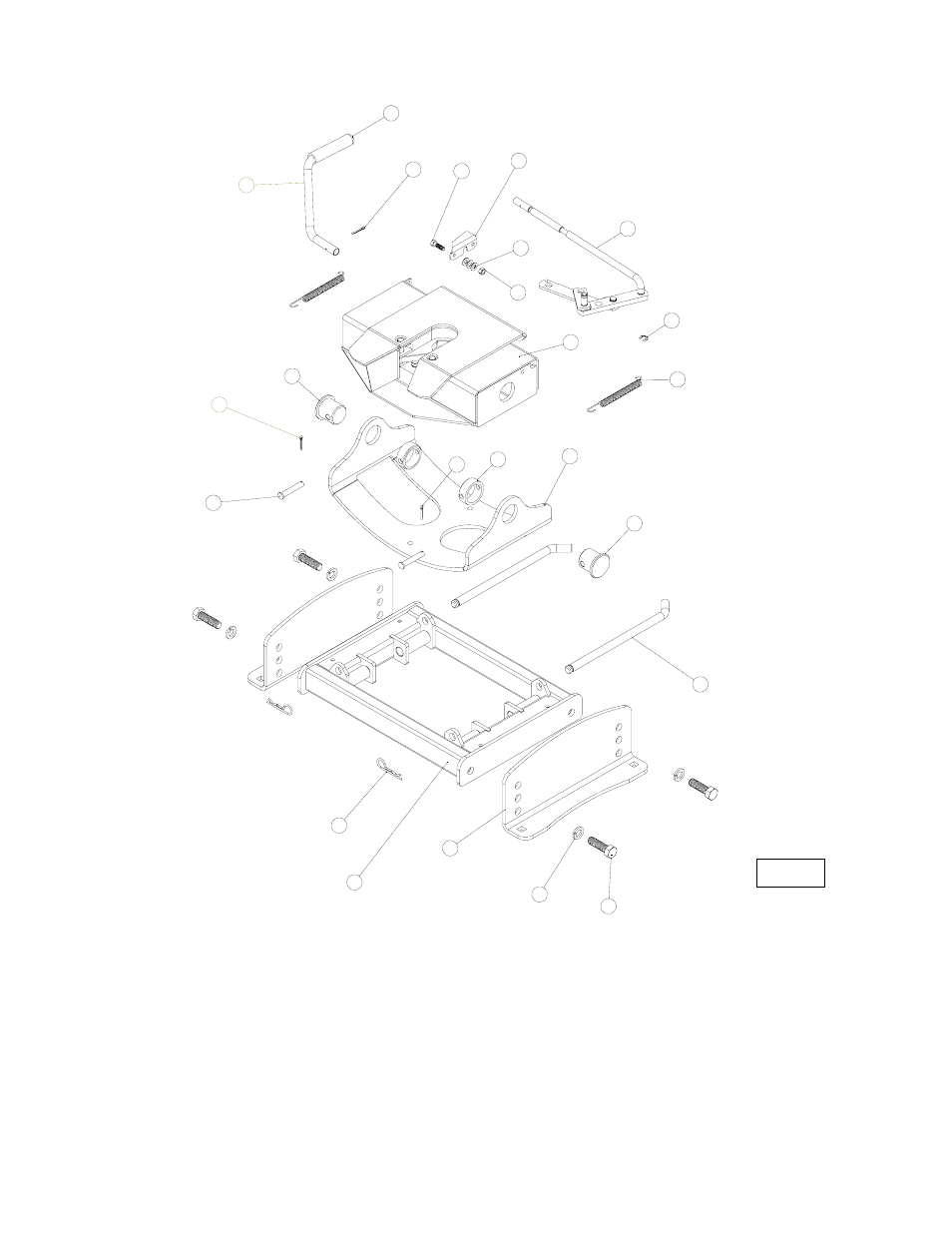

Fig. 23
30K FITH WHEEL PCS. PCS. PCS.
15. 3/4” BOLT (4) 22. HEAD ASSEMBLY (1) 29. SIDE PLATE (2)
16. 3/4” LOCK WASHER (4) 23. STOP ROD (2) 30. 3/8” WASHER (3)
17. INNER HANDLE ASSEMBLY (1) 24. SPRING COTTER PIN (2) 31. 3/8” NUT (1)
18. LATCH (1) 25. PIVOT PIN SLEEVE (2) 32. SPRING (2)
19. 3/8” LATCH BOLT (1) 26. PIVOT PIN (2) 34. COTTER PIN (3)
20. SNAP RINGS (4) 27. PIVOT PIN PIN (2) 35. OUTTER HANDLE (1)
21. ROCKER PLATE (1) 28. BASE ASSEMBLY (1) 36. HANDLE GRIP (1)
17
20
35
34
34
34
26
26
23
28
24
18
19
36
25
27
29
15
16
22
21
30
31
32
11
