Reese 66558 LIGHT WEIGHT WD KIT - Manual

66557N-7/18/13 REV E PCN2169 ©2012 TOWING PRODUCTS, INC
For Installation Assistance or Technical Help, Call 1-888-521-0510
SIZING WD AND TRAILER HITCH SYSTEMS
•Weigh loaded trailer tongue to determine proper system size.
•Choose a system with tongue rating at or above the actual trailer tongue weight.
•Tongue rating of trailer hitch must meet or exceed the measured tongue weight of the trailer. OEM hitches
may not be rigid enough for tongue weight and may need to be replaced (too much flex and won’t carry the
load).
•Total trailer gross weight rating must never exceed tow vehicle rated gross tow rating.
66557
250LB – 400LB
INSTALLATION INSTRUCTIONS
PLYMOUTH, MI.
REESE Steadi-Flex
Weight Distributing Kits
66558
400LB – 600LB
DRAW BAR AND BALL MOUNT ASSEMBLY
• Insert draw bar (B) into the tow vehicle receiver in the desired orientation and install the pull pin and clip.
• Install either a 2” or 2-5/16” ball, (check trailer for correct ball size), with a 1” shank, onto the ballmount
and torque the nut to the ball’s instruction sheet requirements.
• Measure the coupler height of your loaded trailer. Make sure trailer is setting level.
• To begin with, install 2 washers (K) on adjustment pin (J) and insert into top hole in ball mount(A), see
Fig. 1 above. Up to 6 washers(K) can be used.
• Set the ball mount so that the ball height is approx. 1” higher than the coupler height with the trailer
setting level. See Fig. 2 below for the range of height adjustments.
• Install bolt (C) in the bottom hole of the ball mount and bolt (C) with washers (D) in the upper hole.
Attach nut (E) to both bolts. Leave nuts loose at this time.

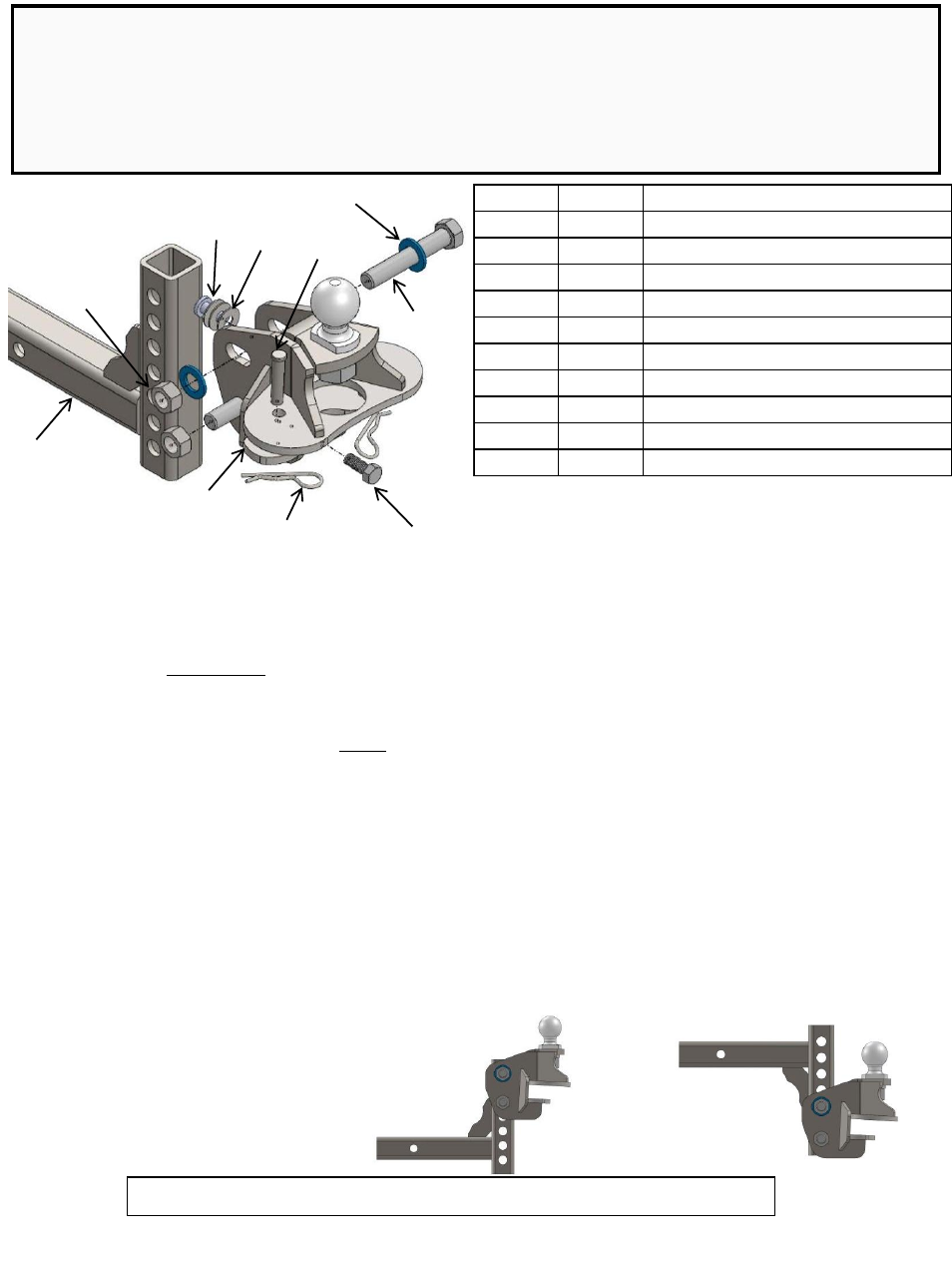

Fig. 1
A
B
C
D
E
F
G
H
K
J
Fig. 2
TOOLS REQUIRED
TORQUE WRENCH TAPE MEASURE
3/4” SOCKET 1-1/8” SOCKET & WRENCH
HIGHEST POSITION
LOWEST POSITION
PART QTY DESCRIPTION
A 1 BALL MOUNT
B 1 DRAW BAR
C 2 3/4-10 x 4-1/2" GR.8 HEX HEAD BOLT
D 2 3/4" FLAT WASHER
E 2 3/4-10 NUT
F 1 1/2-13 x 1-1/4" GR.5 HEX HEAD BOLT
G 2 1/2" x 2-1/4" SPRING BAR PIN
H 2 CLIP
J 1 ADJUSTMENT PIN
K 6 ADJUSTMENT WASHERS
