Reese 58514 REPLACEMENT PART - FIFTH WHEEL User Manual
Shim kit for elite series, Assembly instructions, Fifth wheel hitch

58514N
– 07/22/13 PCN2155 ©2012 CEQUENT PERFORMANCE PRODUCTS, INC. Litho in USA
1
REV. A
ASSEMBLY INSTRUCTIONS
SHIM KIT FOR ELITE SERIES
FIFTH WHEEL HITCH
For Installation Assistance or Technical Help, Call 1-888-521-0510
DEALER/INSTALLER:
(1) Provide this Manual to end user.
(2) Physically demonstrate procedures in this Manual to end user.
(3) Have end user demonstrate that he/she understands procedures.
END USER:
(1) Read and follow this Manual every time you use Hitch.
(2) Save this Manual for future reference.
(3) Pass on copies of Manual to any other user or owner of Hitch.
Tools required:
3/16” Allen wrench
5/16” Drill bit
Item
Description
QTY
1
Shim
2
2
Socket head cap screw
2
3
Flat washers
2
4
Nylock Hex nut
2
Installation instructions:
1.

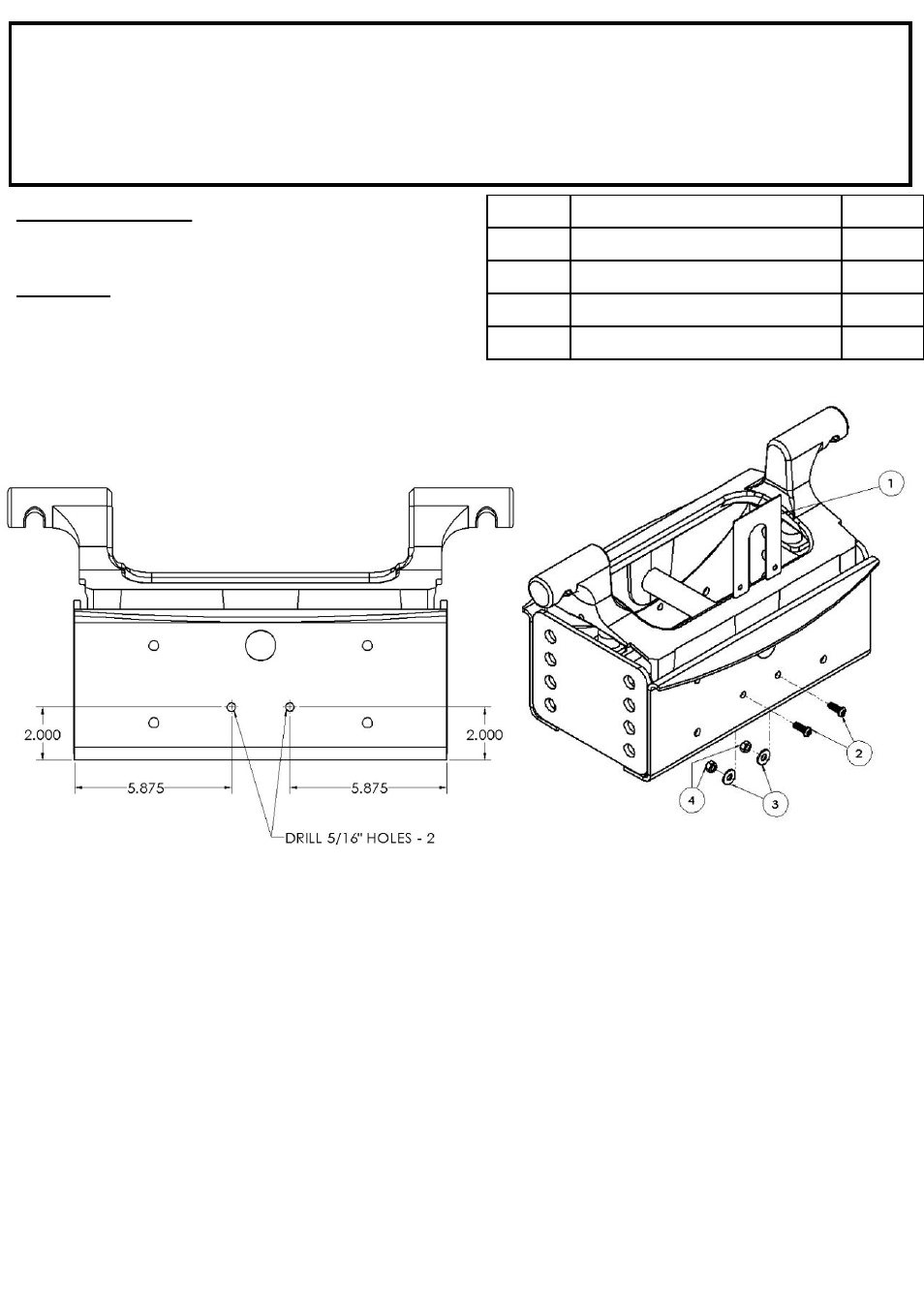

Mark the two locations for the 5/16” holes as shown in Figure 1
2. Drill both locations
3. Slide one shim (1) between the pivot beam and inner side of center box as shown in
Fig 2
4. Put bolts (2) through holes and add washer (3) and lock nut (4) to inside of assembly
and tighten
5. If a single shim is not enough, use the second shim with the first shim
Fig 1
Fig 2
