Reese 26025 DUAL CAM HP User Manual

Installation instructions, Reese dual cam hp high-performance sway control, Part numbers

background image

Installation Instructions

REESE Dual Cam HP

High-Performance Sway Control

Part Numbers:

26025

DUAL CAM HP ASSEMBLED

Equipment Required:

Wrenches: 1-1/2” Open End, ¾” Open End, Torque Wrench

Drill Bits: 7/16”, 17/32” & Center Drill (Pilot Drill)

INDEX

1. INSTALLATION & ASSEMBLY P. 2-4

2. PRE-INSTALLATION (TOW VEHICLE MAY NOT BE PRESENT) P. 4

2. INSTALLATION WITH TOW VEHICLE PRESENT P.4-5

3. TUBULAR FRAME DUAL CAM HP FRAME PLATE INSTALLATION P. 5-6

4. C-CHANNEL FRAME DUAL CAM HP FRAME PLATE INSTALLATION P. 6

5. CAM ARM ADJUSTMENT P. 7

6. BEFORE EACH TRIP & MAINTENANCE P. 7

7. NOTES P. 8

8. LIMITED LIFETIME WARRANTY P. 8

©

2011 Cequent Performance Products, Inc.

Sheet 1 of 25

26025N

23/04/12

Rev. D

j

Qty. (2)

Dual Cam HP Cam Arm Assembly

k

Qty. (2)

Hanger Bracket

l

Qty. (6)

½ - 13 Thread Forming Screw*

m

Qty. (2)

½-

13 X 3 ½” Square Head Bolt*

n

Qty. (6)

½-13 Hex Nut*

o

Qty. (2)

½” Lock Washer**

p

Qty. (4)

½-

13 X 1 ½” Grade 5 Bolt**

Fastener Kit: 122044

Do Not Exceed Lower of Towing Vehicle Manufacturer’s Rating, or

Trailer Manufacturer’s Rating

Form: F205 Rev A 5-6-05

DEALER/INSTALLER:

(1) Provide this Manual to end user

END USER:

(1) Read and follow this Manual every time you use Dual Cam HP.

(2) Save this Manual for Future Reference.

(3) Pass on copies of Manual to any other users or owner.

j

k

l

*

m

*

n

*

WARNING:

Failure to follow all of these instructions may result in death or serious injury!

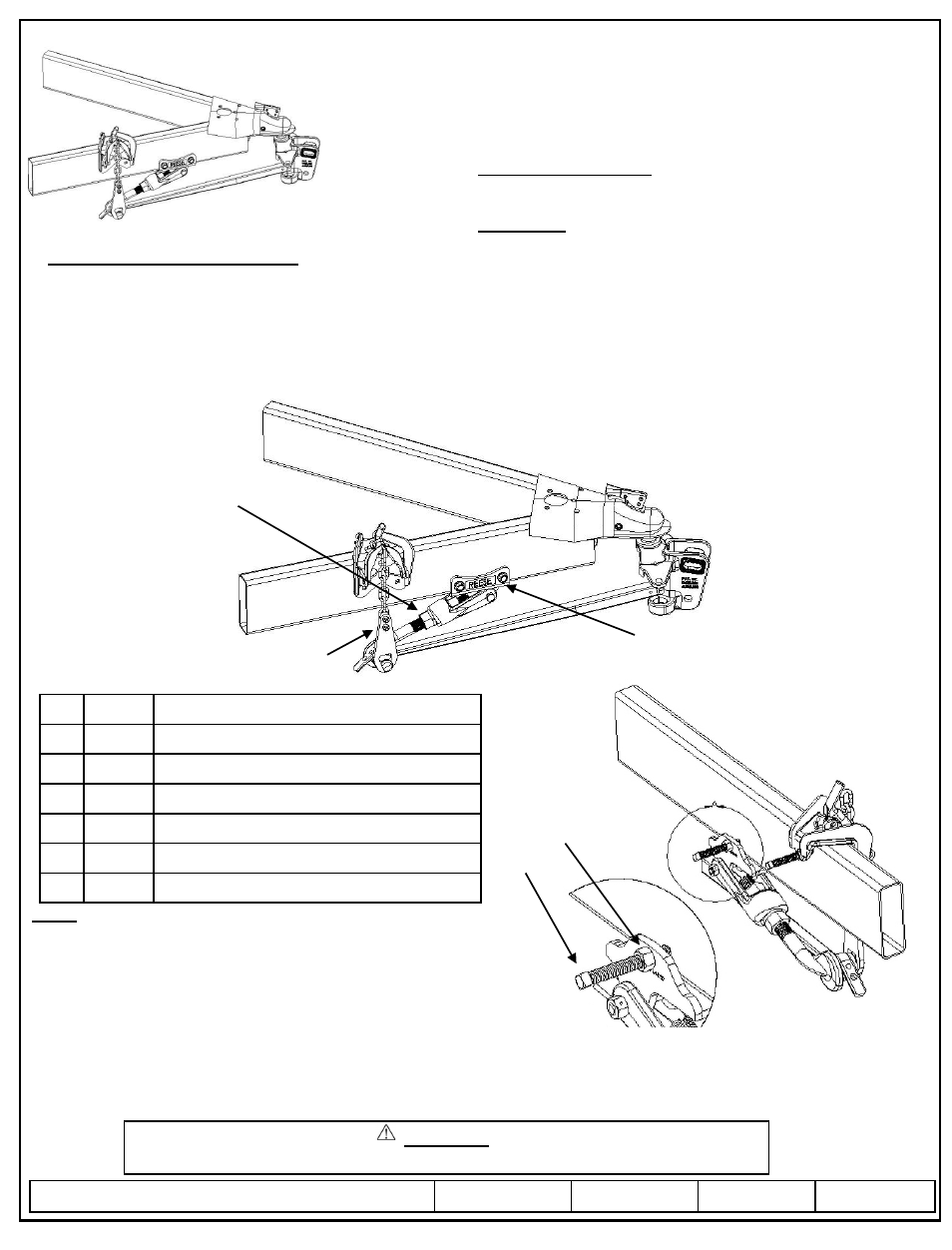

Figure 1

*For Tubular Style Frame Attachment
**Not Shown, For C-Channel Style Frame Attachment

½” Open End, ¾” Socket & Ratchet

Other: 8 – 10” C-Clamp, Tape Measure, Light Penetrant Oil

For Installation or Operation Support contact CPP Technical Service: 1-888-521-0510.

Figure 2 – Inside View of Trailer Frame
