Reese 44686 PROFESSIONAL RECEIVER - Manual

1. Remove tie down bracket from the driver’s side of the vehicle and return to vehicle owner.
2. Lower exhaust. Remove or reposition exhaust rod. If removed, return to customer. If repositioned, remove bolts, rotate rod to
point forward and reinstall bolts.

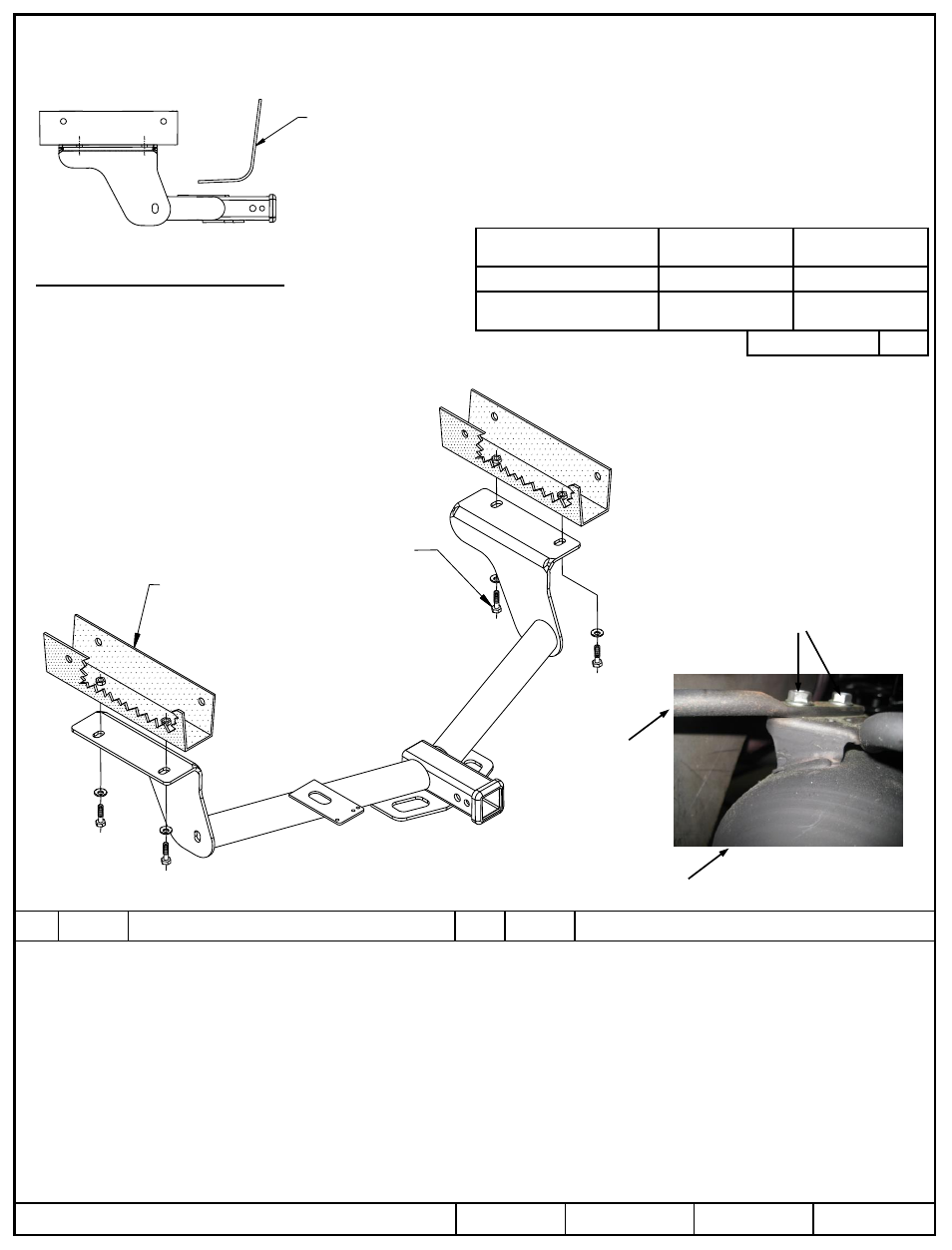

3. Raise hitch into position over existing weldnuts and install the M12 bolts and conical toothed washers as shown above.
4. Raise and attach exhaust.
Installation Instructions
Toyota RAV4
Part Numbers:
44686
75766
87631
Hitch Shown In Proper Position
Equipment Required:
Wrenches: 12 mm, 17mm, 19mm
Tighten all M12 fasteners with torque wrench to 65 Lb.-Ft.
z 2012 Cequent Performance Products, Inc. – Printed in Mexico Sheet 1 of 3 75766N 11-20-12 Rev. A
j
Qty. (4) M12 X 1.25 X 40mm CL10.9
k
Qty. (4) ½” Conical Toothed Washer
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 75766F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 5000 (2267 Kg) 525 (238 Kg)
Weight Carrying
Ball Mount
3500 (1589 Kg) 525 (238 Kg)
Wiring Access Location: SUV3, SUV4
Fascia
Drill Bits: None
Frame Rail
jk
Accessory Rating C
Remove both M8 fasteners
Exhaust Rod
Muffler
