Reese 44611 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Volkswagen Tiguan
Part Numbers:
44611
75658
87600

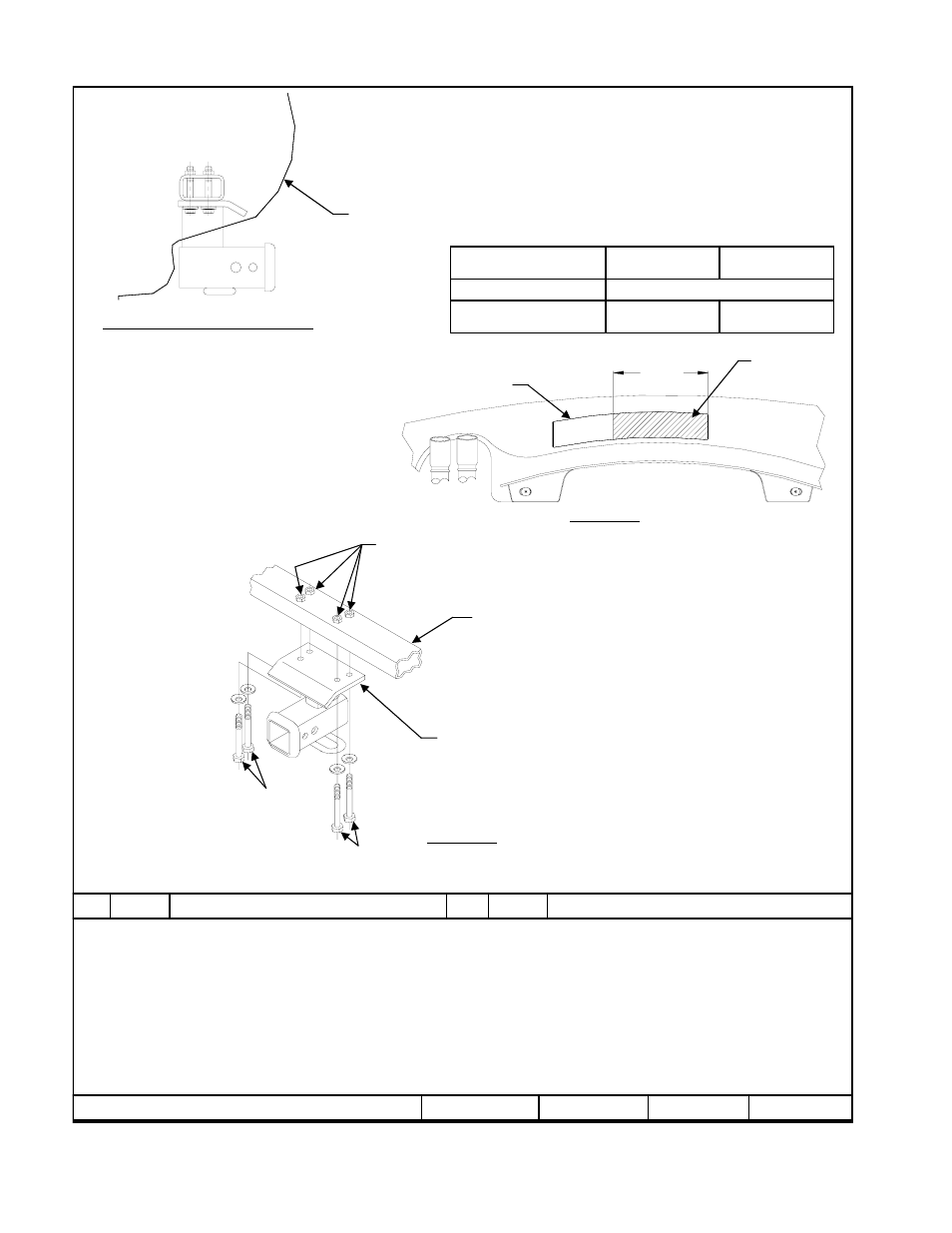

Hitch Shown In Proper Position
Equipment Required: Utility Knife
Wrenches: 17mm
Drill Bits: None
1. Locate existing grooved area on bottom of fascia to be cut as shown in Figure 2. Cut fascia as shown to access mounting holes
in vehicle cross member.
2. Raise hitch into position, aligning holes in hitch top plate with holes in vehicle cross member.
3. Secure with M10 x 1.50 x 70mm hex bolts and 3/8” conical toothed washers.
Rev. A 7-28-08 75658N Sheet 1 of 3 z 2008 Cequent Towing Products
Conical Toothed Washer 3/8” Qty. (4) 2 Hex Bolt M10 x 1.50 x 70mm CL8.8 Qty. (4) 1
Tighten all M10 CL8.8 fasteners with torque wrench to 38 Lb.-Ft. (52 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Fastener Kit: 75658F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
350 (159 Kg) 3500 (1589 Kg)
Weight Carrying
Ball Mount
Do Not Use With Spring Bars Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Wiring Access Location: PC1, PC2
Form: F205 Rev A 5-6-05
Plastic Fascia
6-1/2”
(165mm)
Figure 2
(Looking up from under vehicle)
Fascia trimming diagram
Area to be cut for
Hitch installation
Note: Fascia Trimming Required. Obtain Vehicle
Owner’s Approval Before Cutting
Note: Fascia Trimming Required. Obtain Vehicle Owner’s Approval Before Cutting.
Existing Grooved Area
In Vehicle Fascia
Existing Weldnuts
Vehicle Cross member
Hitch Top Plate
Figure 1
Fascia not shown for clarity
1
2
1
2
