Reese 44693 PROFESSIONAL RECEIVER User Manual

Installation instructions, Nissan nv200, Part numbers

background image

1. Lower and remove spare tire from vehicle. The tire release is located inside rear cargo area in middle of floor.
2. Lower exhaust by removing the rear hanger.
3. Lower exhaust by removing the rear and side hangers.
4.Using a 3/4 inch hole saw drill hole on inside frame rail both sides to fishwire bolts into frame.

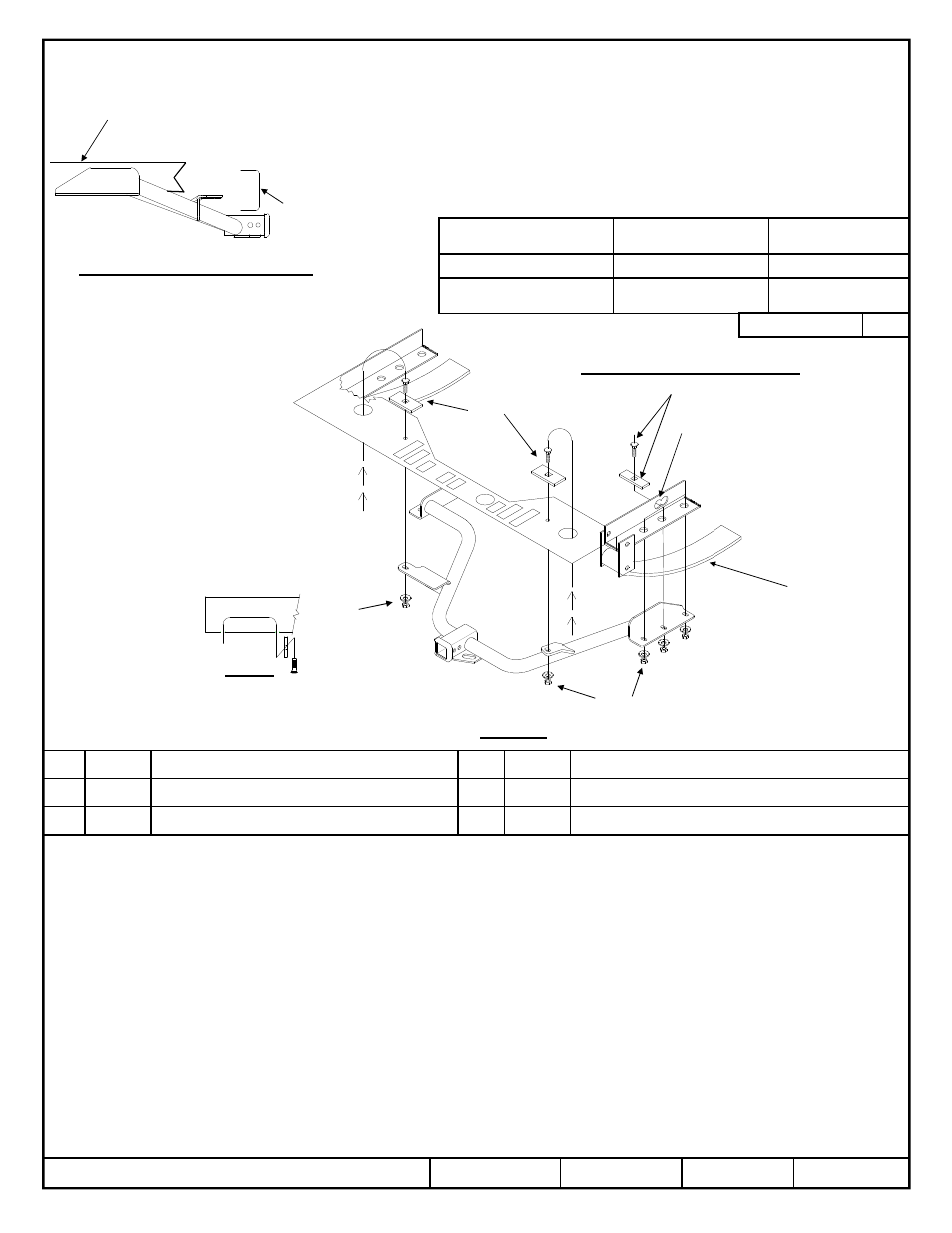

5. Insert 1/2” bolts and blocks through into the frame as shown in Figure 1.
6. Raise hitch into place over bolts and hand tighten so hitch is held into position but can be moved to line up front holes.
7. Insert 1/2” bolts and blocks into end panel through existing access hole and though existing holes in panel.
8. Trim rear fascia plastic as needed to allow bolts to some though and install washer and nuts.
9. Reinstall exhaust hangers into mounts.
10. Reinstall spare tire and make sure it is seated properly.

Installation Instructions

Nissan NV200

Part Numbers:

75780
44693
87640

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 3/4”

Drill Bits: 3/4” HOLE SAW

z

2013 Cequent Performance Products, Inc.

Sheet 1 of 3

75780N

5-7-13

Rev. A

1

1

1

1

Qty. (8)

CARRIAGE BOLT 1/2-13 X 1.50

4

4

4

4

Qty. (2)

BLOCK .250 X 1.50 X 3.00

2

2

2

2

Qty. (8)

1/2” Conical Washer

5

5

5

5

Qty. (6)

BLOCK .250 X 1.00 X 3.00

3

3

3

3

Qty. (8)

HEX NUT 1/2-13 GRADE 2

6

6

6

6

Qty. (4)

PULL WIRE

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 75780F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

DO NOT USE WITH

SPRING BARS

Weight Carrying

Ball Mount

3500 Lb (1589 Kg)

525 Lb (238 Kg)

Wiring Access Location: SUV1, SUV2

Fascia

Fasteners typical both sides

Frame rail

15

Figure 1

Form: F205 Rev C 9-17-2012

Accessory Rating

C

Tighten 1/2”-13 Gr.5 bolts /nuts with torque wrench to 75Lb.-Ft. (102 N*M).

Drilled
holes

23

23

Screw Driver: flathead

14

Leaf Spring

Figure 2

Kink pull wire to keep
Block independent
of bolt
