2014 Cequent Performance Products, Inc

Sheet of 3

75882N

2-10-14

Rev. B

1.

Lower spare tire.

2.

Remove (8) torque head screws (4 on top, 4 on bottom) which attaches the bumper fascia to the bumper under structure.

3.

Raise hitch into place as shown.

(Hint, raise one side of the forward attachment above leaf spring, then repeat on the other side)

4.

Slide nut plate into the frame from the front of the vehicle as shown and hand tighten ½” bolts into place.

5.

Remove rubber grommets and using the fish wire insert the two 7/16” bolts and two ½” bolts into their respective position.

6.

Attach middle 7/16” bolts to hitch and hand tighten.

7.

Slide 5/8” spacer blocks into place and pass ½” bolt through block and vehicle rearward slot as shown. Hand tighten.

8.

Tighten all hitch fasteners to the torque specifications given.

9.

Reinstall bumper fascia and raise spare tire into place

Installation Instructions

Ram Promaster

Except Extended Model

Part Numbers:

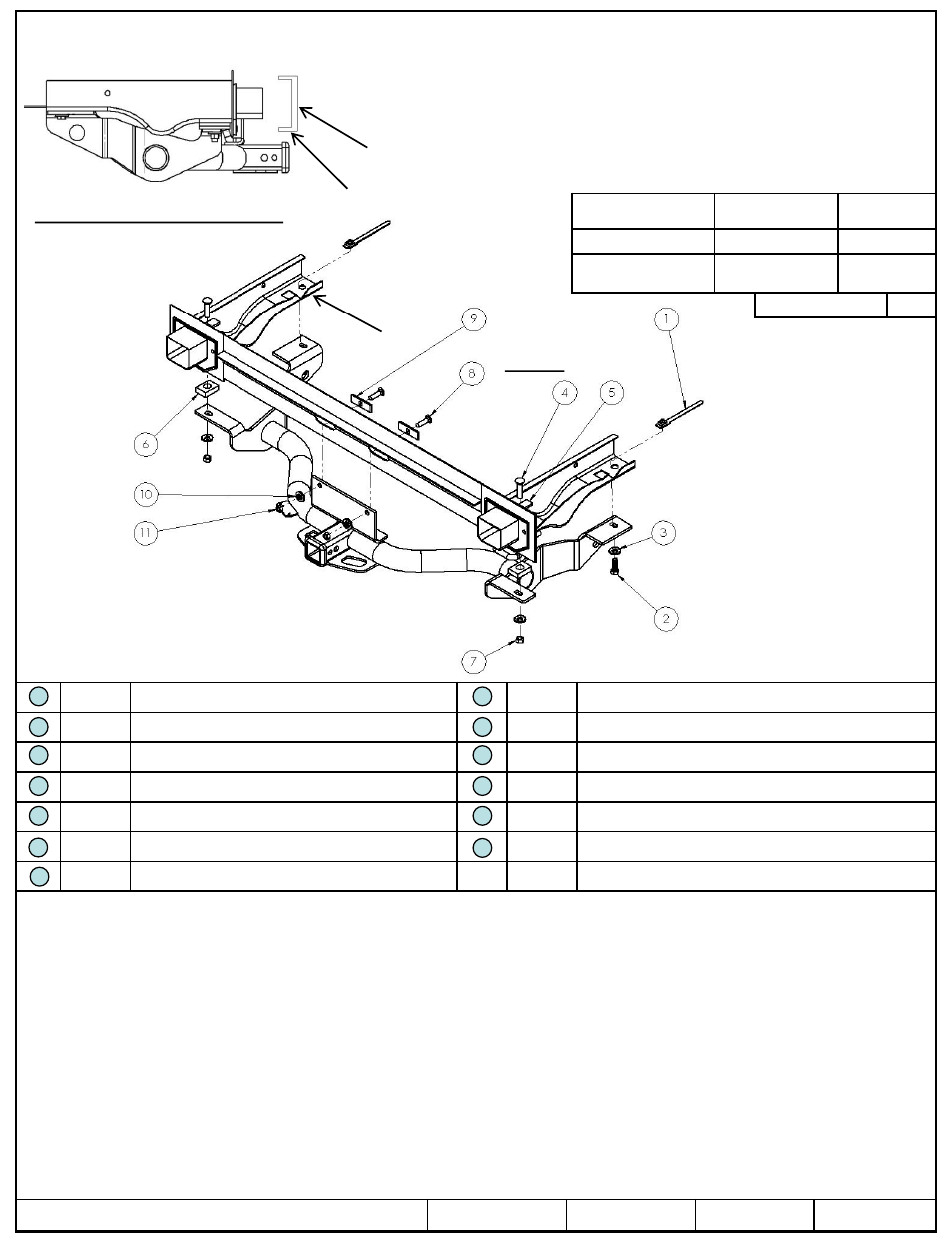

Hitch Shown In Proper Position

Wiring Access Location: SUV 3&4

Equipment Required: N/A
Fastener Kit:
75882F
Wrenches: 16mm, 3/4”, T-30

Qty. (2)

½”-13 nut plate

Qty. (2)

7/16”-14 x 1.75 Carriage Bolt

Qty. (2)

½”-13 X 1.50 GR5 Hex Bolt

Qty. (2)

1/4” X 3.00 X 1.00 Spacer Block

Qty. (4)

½” Conical Washer

Qty. (2)

7/16” Conical Washer

Qty. (2)

½”-13 X 2.25 Gr. 5 Carriage Bolt

Qty. (2)

7/16”-14 Hex Nut

Qty. (4)

¼” X 3.00 X 1.00 Spacer Block

Qty. (2)

½” Fish Wire

Qty. (2)

5/8” X 2.0 X 1.5 Spacer Block

Qty. (2)

7/16” Fish Wire

Qty. (2)

½”-13 Hex Nut

Note: Check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent

entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a

vehicle and wear eye protection. Do not cut access or attachment holes with a torch.

This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and

SAE J684.

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Form F206 Rev A 5605

75882
87655
44706

Note: Fasteners typical
both sides of hitch.

Tighten all 7/16”-14 Gr. 5 fasteners with torque wrench to 50 Lb.-Ft. (68 N*M)
Tighten all ½”-13 Gr. 5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Figure 1

Accessory Rating

D

Hitch Type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distribution

7500

750

Weight Carrying

Ball Mount

6000

750

Bumper

Torque Head

Screws

Frame

1

2

3

4

5

6

13

1

8

9

10

11

12

7
