Reese 44709 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Kia Sedona
Part Numbers:
75894
87658
44709
Hitch Shown In Proper Position
Equipment Required: Small Philips tip screwdriver, lubricant or
soapy water, & spiral wire brush
Wrenches: 19mm
Drill Bits: None
Existing
weldnuts
Tighten all M12 CL8.8 fasteners with torque wrench to 76 Lb.-Ft. (103 N*M)
© 2014 Cequent Performance Products, Inc Sheet 1 of 3 75894N 2-21-14 Rev. A
1 1 1 1 Qty. (6) Hex bolt M12X1.25X35 CL8.8 2 2 2 2 Qty. (6) Conical washer 1/2
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Fastener Kit: 75894F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 4000 (1816 Kg) 400 (182 Kg)
Weight Carrying
Ball Mount
4000 (1816 Kg) 400 (182 Kg)
Wiring Access Location: TBD
Form: F205 Rev C 9-17-2012
Accessory Rating C
Printed in Mexico
Note: If necessary clean the threads to the existing weldnuts. Carefully run the M12 bolts into the weld nuts or use spiral wire brush to clean the
threads.

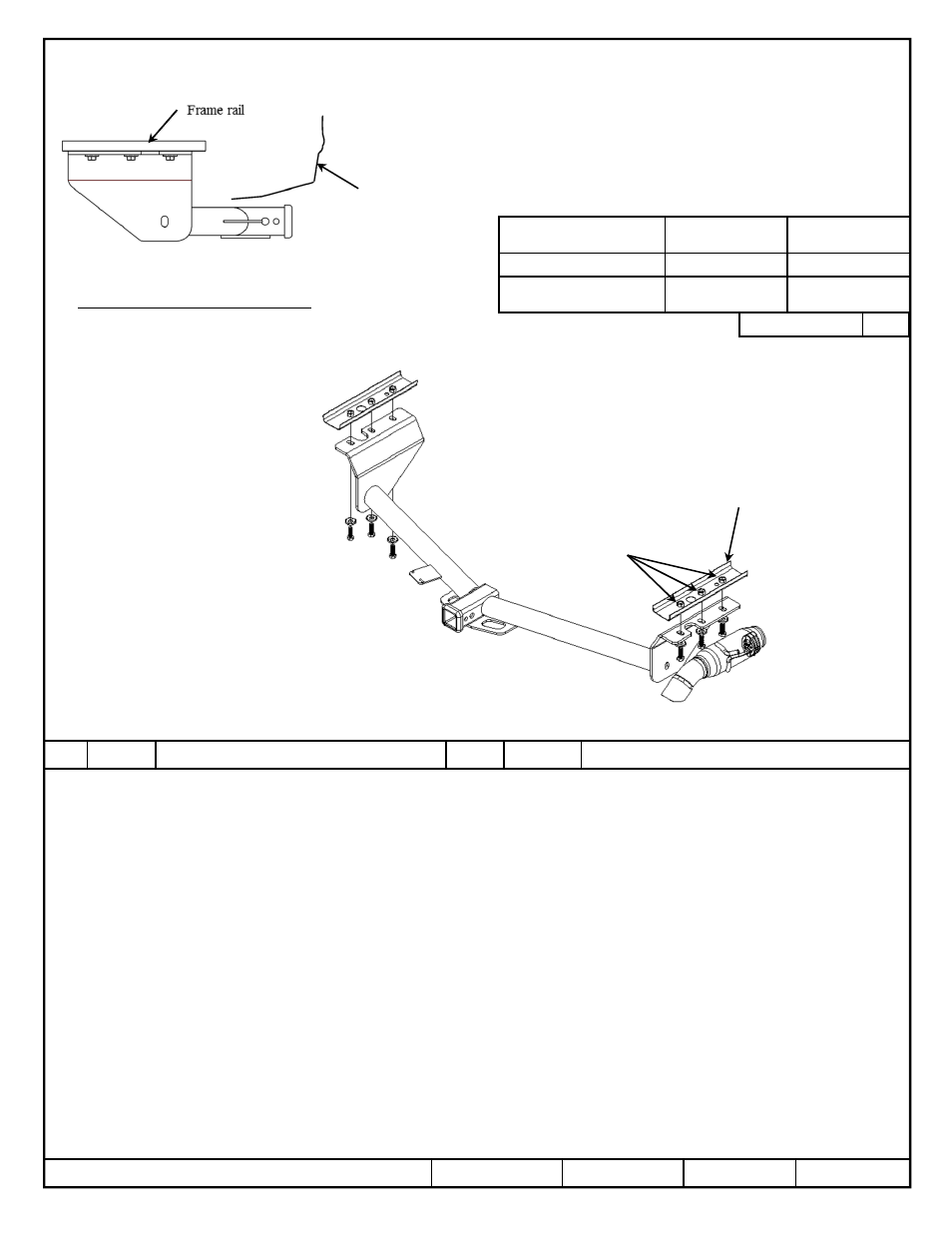

1.
Remove appearance panel from the drivers side, if present. Remove the plastic rivets that fasten the appearance panel to the vehicle. Using a
small Philips tip screwdriver, unscrew plastic screws when loose pull the remaining plastic rivet out. Return to owner.
2. Lower exhaust by removing rubber isolators from muffler hangers. Spraying a lubricant or soapy water on the metal hanger rod and the rubber
isolator helps removal.
3. Raise hitch on the passenger side over exhaust pipe and slowly rotate hitch into position.
4. Secure hitch by loosely installing all the bolts.
5. Center hitch on the vehicle, assuring clearance with the exhaust.
6. Tighten all fasteners to the required torque specification.
7. Reattach previously removed exhaust hangers.
2
1
Fasteners typical both sides
Frame rail
Fascia
