Installation Instructions
Hyundai Tucson
Kia Sportage
Part Numbers:

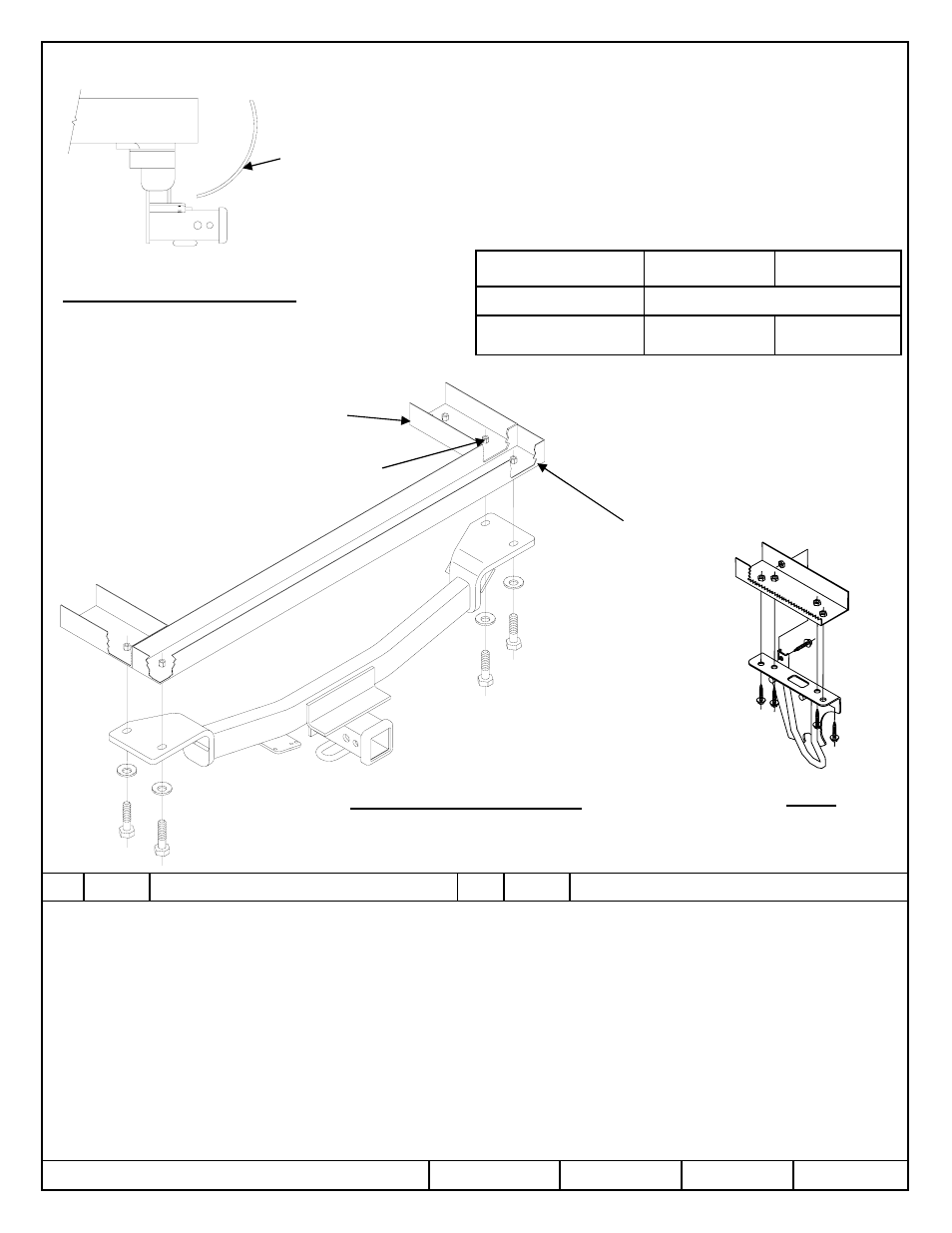

Hitch Shown In Proper Position
Wiring Access Location:
KIA Sportage 4 Cyl. Models – SUV1,2
KIA Sportage 6 Cyl. Models – SUV5
HYUNDAI TUCSON – SUV1,2
Equipment Required:
Wrenches: 13mm, 14mm, 17mm
Drill Bits: None
1. Lower exhaust by removing two (2) rubber exhaust hangers on the driver’s side of the vehicle and one (1) on the passenger’s
side of the vehicle.
2. Remove tow hook bracket (see figure 2) by removing five (5) M10 bolts and return to vehicle owner.
3. Raise hitch into position and install four (4) M10 X 1.25 X 40mm bolts and conical toothed washers provided with hitch, two (2)
per side.
4. Tighten all fasteners to the required torque specification.
5. Raise exhaust back into position and re-install rubber isolators
Rev. A 7-18-07 75561N Sheet 1 of 3 z 2007 Cequent Towing Products
3/8 Conical Toothed Washer Qty. (4) 2 M10 X 1.25 X 40mm CL 8.8 Qty. (4) 1
Tighten all M10 CL8.8 fasteners with torque wrench to 42 Lb.-Ft. (57 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Fastener Kit: 75561F
Figure 2 Fasteners Typical Both Sides
Existing Weldnuts
Frame Rail
Fascia
Bumper
Structure
350 (159 Kg) 3500 (1589 Kg)
Weight Carrying
Ball Mount
Not For Use With Spring Bars Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
75561
87447
44582
2
1
