Reese 44640 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Land Rover LR2
Part Numbers:
75688
87575
44640
78180 U-Haul
Hitch Shown In Proper Position
Equipment Required:
Wrenches: 5/8” 11/16”, 22mm ,
6” Ratchet Extension, & Ratchet
swivel
Fascia
Weld nuts
Use caution when working near exhaust.
1. Prior to installation thread M14 bolts (Item 1) into both weldnut to clean out dirt & rust.
2. Raise hitch over tail pipe on the driver’s side and start to install rearward bolt to support hitch.
3. Place passenger’s bracket against existing tie down bracket on vehicle and install 7/16” hardware as shown.
4. Install forward M14 bolts (Item 1) into weldnut (push tail pipe forward and rotate bolt to get it into place).
5. Torque all fasteners to specifications.
Rev. A 2-22-10 75688N Sheet 1 of 3 z 2010 Cequent Performance Products
Hex nut 7/16-14 Qty. (3) 6 Hex bolt 7/16-14 X 1.50 GR5 Qty. (3) 3
Flat washer 7/16” Qty. (3) 5 Conical washer 5/8” Qty. (2) 2
Lock washer 7/16” Qty. (3) 4 Hex bolt M14 X 2.00 X 120mm CL8.8 Qty. (2) 1
Tighten all M14 CL8.8 fasteners with torque wrench to 100 Lb.-Ft. (136 N*M)
Tighten all 7/16-14 GR5 fasteners with torque wrench to 50 Lb.-Ft. (68 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 75688F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
400 (182 Kg) 4000 (1816 Kg)
Weight Carrying
Ball Mount
400 (182 Kg) 4000 (1816 Kg) Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Wiring Access Location:
Form: F205 Rev A 5-6-05

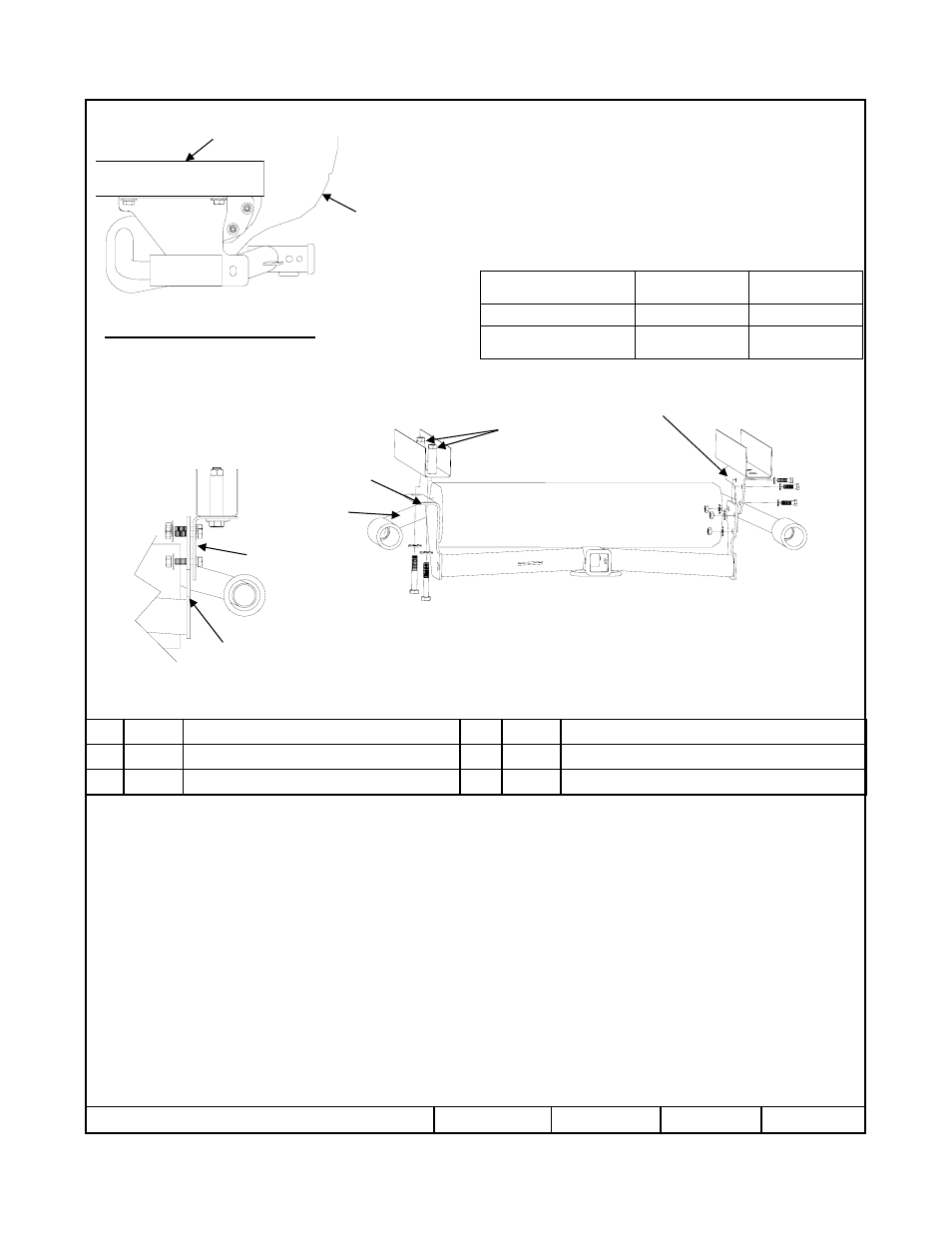

Existing tie
down bracket
2
1
43
65
Tail pipe
Rearward
bolt
Existing tie
down bracket
Passenger's
bracket
65 43
Frame rail
