Reese 33075 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Lexus RX330, Lexus RX400h,
Lexus RX 350,
Toyota Highlander & Highlander Hybrid
Part Numbers:
70778
75153
33075

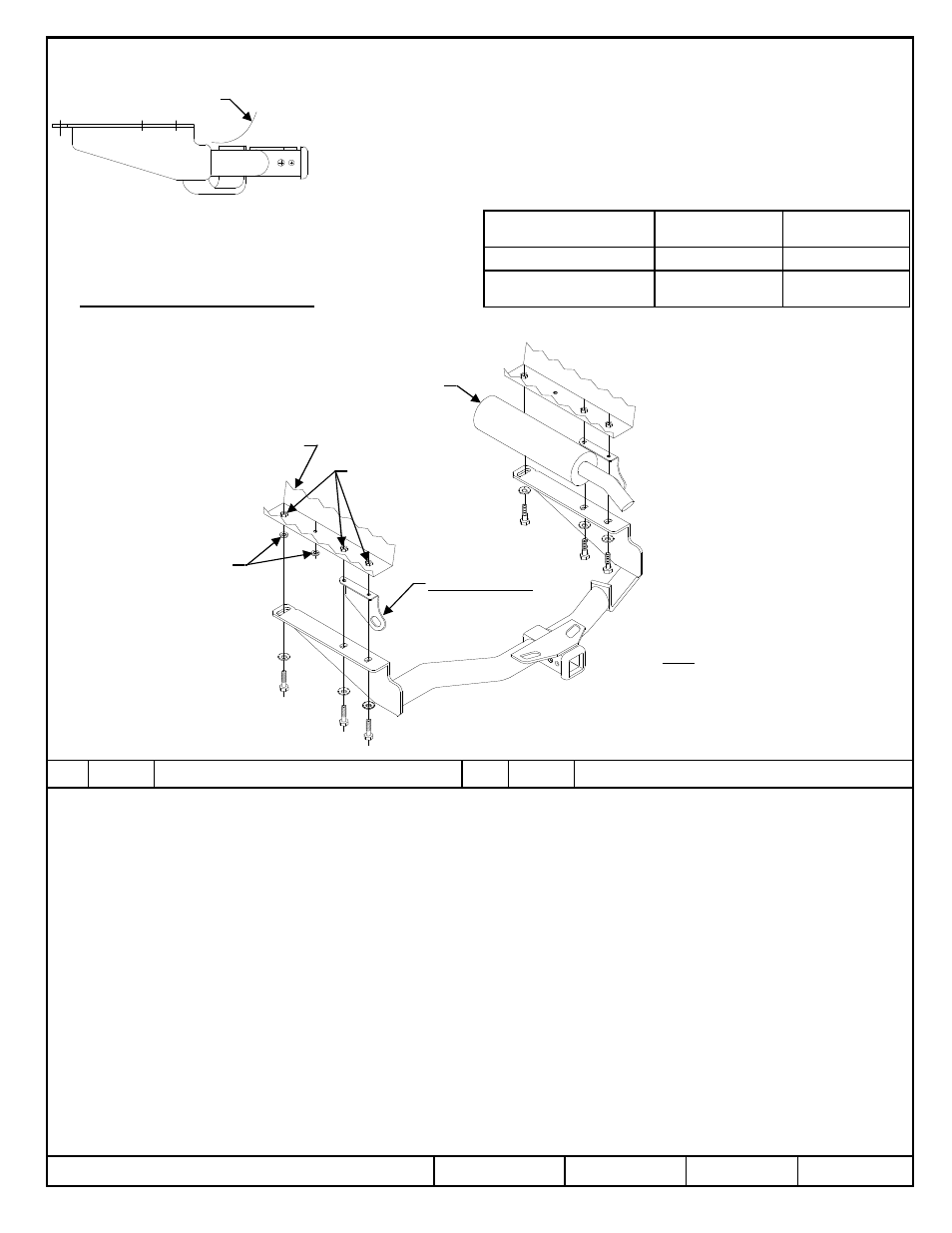

Hitch Shown In Proper Position
Equipment Required: Phillip’s head screwdriver
Wrenches: 14mm, 17mm
Drill Bits: None
2
1
Fascia
1. Remove shrouds both sides on Lexus RX400h.
(4) Phillip's head screws & (2) Plastic push rivets on driver's side.
(2) Phillip's head screws, (1) Plastic push rivet & 10mm bolt, passenger's side.
2. Remove tie downs and fasteners from frame rails.
3. Remove rubber plugs (2) located in each rail.
4. Raise hitch into position and install fasteners as shown above.
5. Return tie downs, fasteners, rubber plugs & shrouds to vehicle owner.
Tighten all M10 CL8.8 fasteners with torque wrench to 38 Lb.-Ft. (52 N*M)
Rev. E 6-21-06 N75153 Sheet 1 of 3 z 2003, 2005, 2006 Cequent Towing Products
Conical Washer Qty. (6) 2 2 2 2 Bolt M10 X 1.25 X 40 Qty. (6) 1 1 1 1
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: F75153
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Wiring Access Location: SUV1 , SUV2
Form: F205 Rev A 5-6-05
350 (159 Kg) 3500 (1589 Kg)
Weight Carrying
Ball Mount
N/A N/A Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Rubber plugs to
be removed
(Both sides)
Remove tie downs
both sides
Existing weldnuts
6 places
Exhaust
Frame rail
Note: Fasteners typical both sides
