Installation Instructions

Mazda CX-5

Part Numbers:

75748
87623
44677

75351

U-Haul

Hitch Shown In Proper Position

Equipment Required:
Lubricant or soapy water, Flashlight

Wrenches: 11/16, 3/4

Drill Bits: None

Access hole

Recommend (2) people for installation.

1.

Lower exhaust system at the rubber isolator (4). Spraying a lubricant or soapy water on the metal hanger rod and the rubber isolator helps with removal. Do

not let the exhaust drop, support the exhaust during installation.

2.

Feed spacers and carriage bolts into position using the pull wires provided to the forward holes in each frame rail. Leave pull wire attached. Note: It is much

easier if bolt and spacer are not engaged while inserting them into frame, refer to illustration.

3.

Raise the hitch into position one side at a time. Raise both hitch brackets over the exhaust while feeding one hitch bar under the fascia, raise the bracket

over the rubber isolator, and swing the opposite side bracket over the isolator while shifting the hitch to one side. Feed the remaining bar under the fascia (it

might be necessary to gently pull the fascia out for additional clearance). Push the hitch up against the bumper rail. Bend heat shield if needed for

installation.

4.

Feed the pull wires through the slots of the bracket. Shift the bracket into location as shown. Pull the fasteners though the bracket. Remove one pull wire at

a time (being careful not to push the fasteners into the frame rail) and attach the conical washer and hex nut as shown. Repeat with remaining fastener.

Hand tighten only at this time.

5.

Place the bolt plates on top of the bumper rails, access to bumper rail on the outside of the rails(as shown), use caution not to knock bolt plates back down

unto you.

6.

Install the hex bolts and conical washers into the bolt plate. Do not completely tighten.

7.

Center the hitch on the vehicle.

8.

Torque all fasteners to specifications shown below.

9.

Reinstall exhaust.

©

2012, 2013 Cequent Performance Products, Inc

– Printed in Mexico

Sheet 1 of 3

75748N

10-04-13

Rev. C

j

Qty. (2)

Carriage bolt 7/16-14 X 1.50 GR5

n

Qty. (2)

Pull wire 7/16

k

Qty. (2)

Spacer 7/8 X 3 X 1/4

o

Qty. (4)

Bolt ½-13 X 5.00 GR5

l

Qty. (2)

Conical washer 7/16 (smaller diameter)

p

Qty. (4)

Conical washer ½

m

Qty. (2)

Hex nut 7/16-14

q

Qty. (2)

Bolt plate

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.

Fastener Kit: 75748F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Wiring Access Location: SUV3, 4

Form: F205 Rev A 5-6-05

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

Not For Use With Spring Bars

Weight Carrying

Ball Mount

3500 (1589 Kg)

525 (239 Kg)

Note: Fasteners typical

both sides

Tighten all 7/16-14 GR5 fasteners with torque wrench to 50 Lb.-Ft. (68 N*M) Tighten all ½-13 GR5 fasteners with torque wrench to 50 Lb.-Ft. (68 N*M)

j

k

o

p

l

m

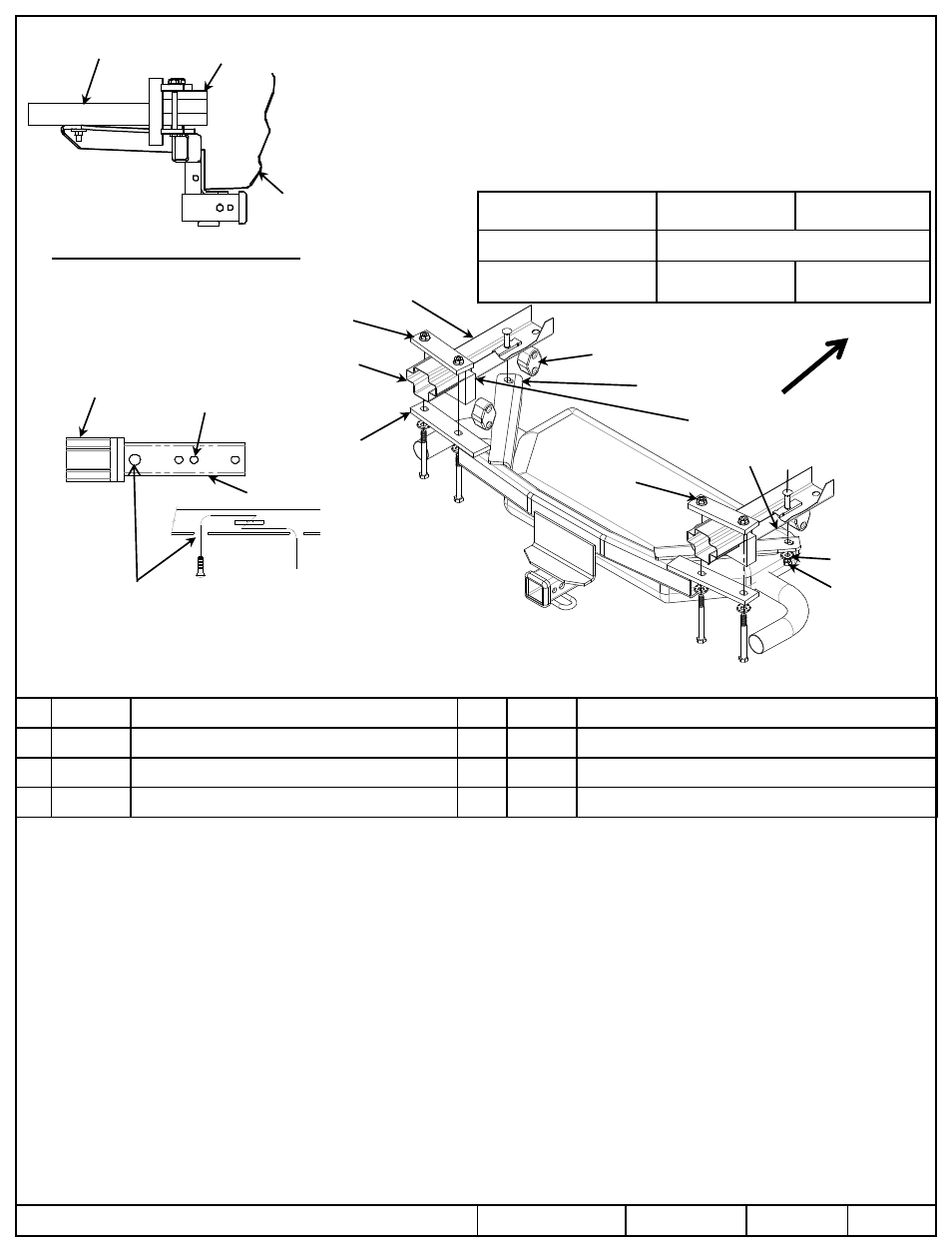

Rubber isolator

Bumper rail

Frame rail

Kink pull wire to keep
spacer independent of bolt

Access hole
bottom of
frame rail

Note: sort hardware prior to hitch installation to confirm 1/2” & 7/16” conical
washer are kept with coordinated 1/2” & 7/16” bolts

CAUTION: Some models may have a wire harness on top of
frame rail. Be careful not to damage lines when installing hitch.

Hitch bracket

Hitch bar

Vehicle forward

Frame rail

Bumper rail

Fascia

Bumper rail

Feed fastener thru

this slot

Frame rail

q

q
