Installation Instructions

Mazda CX-7

Part Numbers:

87421

75512

44554

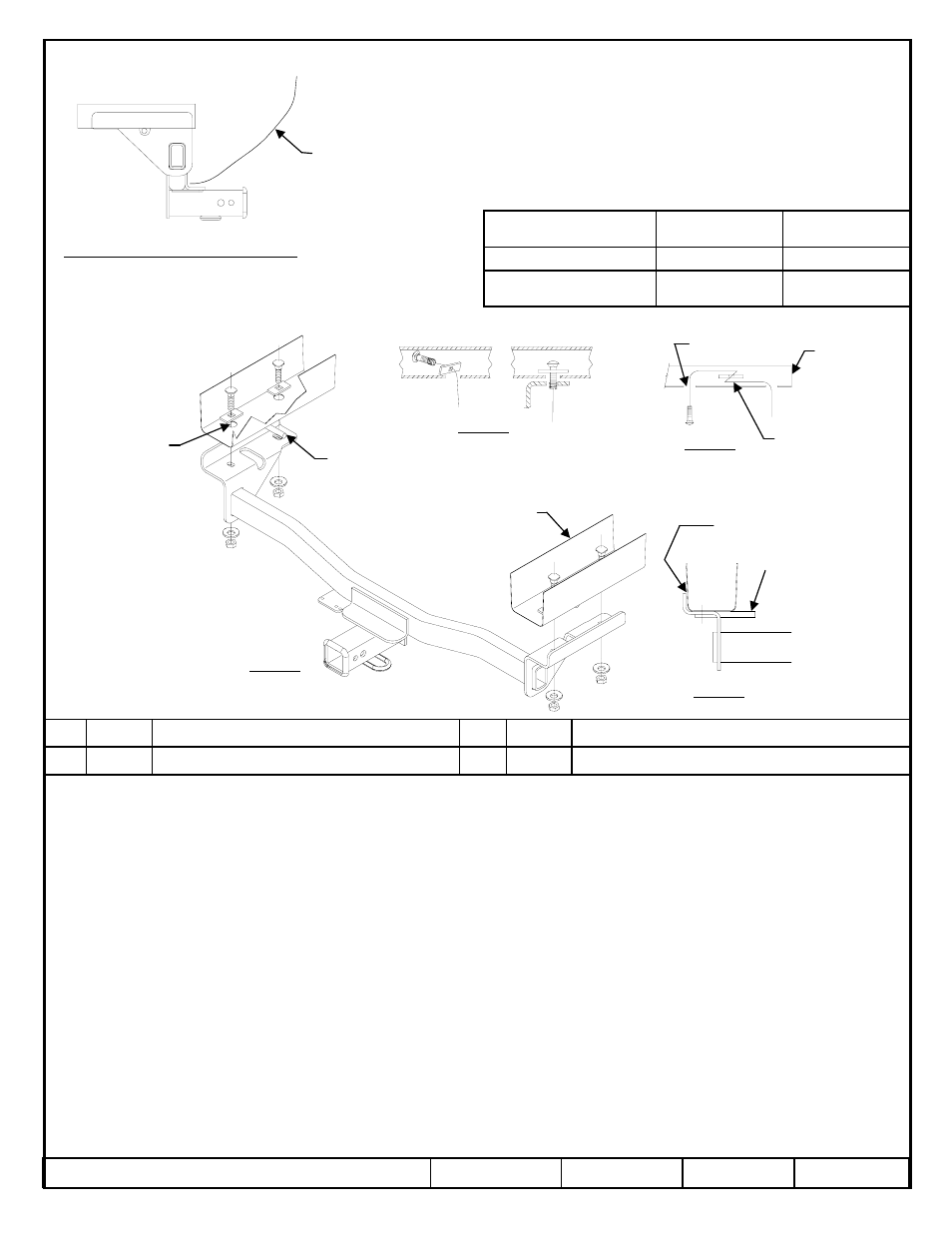

Hitch Shown In Proper Position

Equipment Required: Metal file,

Pullwire (provided)

Wrenches: 11/16

Drill Bits: None

Fascia

1

2

1.

Detach both (2) rear rubber muffler hangers to lower exhaust.

2.

Enlarge either hole on bottom of both frame rails with a metal file enough to get spacer through.

3.

Feed the pullwire through the newly enlarged hole, attach spacer and bolt and feed one at a time into the frame rail. Leave the

pullwire attached. Repeat on both frame rails as shown in Figure 3.

4.

Feed the second spacer and bolt thru the enlarged hole and back out as shown in Figure 2. Leave the pullwire attached.

Repeat on both frame rails.

5.

Feed the pullwires through the slot on the hitch brackets. Raise the hitch into position being careful not to push the fasteners

into the frame rails.

6.

Attach remaining fasteners as shown Figure 1. Hand tighten only.

7.

Check to assure hitch is centered on vehicle. Bracket may not fit snugly against side of frame rails. See Figure 4.

8.

Tighten all fasteners to torque specifications.

9.

Reattach rubber muffler hangers.

Rev. B

6-16-06

75512N

Sheet 1 of 3

z

2006 Cequent Towing Products

Nut 7/16-14

Qty. (4)

4

Spacer

Qty. (4)

2

Conical Washer

Qty. (4)

3

Carriage Bolt 7/16-14 X 1.25

Qty. (4)

1

Tighten all 7/16 GR5 fasteners with torque wrench to 50 Lb.-Ft. (68 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 75512F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

350 (159 Kg)

3500 (1589 Kg)

Weight Carrying

Ball Mount

N/A

N/A

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

Wiring Access Location: SUV3, SUV4

3

4

Figure 1.

Exhaust hanger

Frame rail

Existing holes
to be modified

Exhaust not

shown for clarity

Figure 2.

Figure 3.

Enlarged hole

Example of

pullwire procedure

Kink pullwire to

keep spacer

independent of bolt

Frame rail

Note:
Fasteners typical
both sides.

Bracket may
not fit snugly

Figure 4.

Exhaust hanger

Form: F205 Rev A 5-6-05
