Installation Instructions

Ford Light Duty

F-Series Trucks

Ford Supercrew Pickup Truck

Part Numbers:

44007

51020

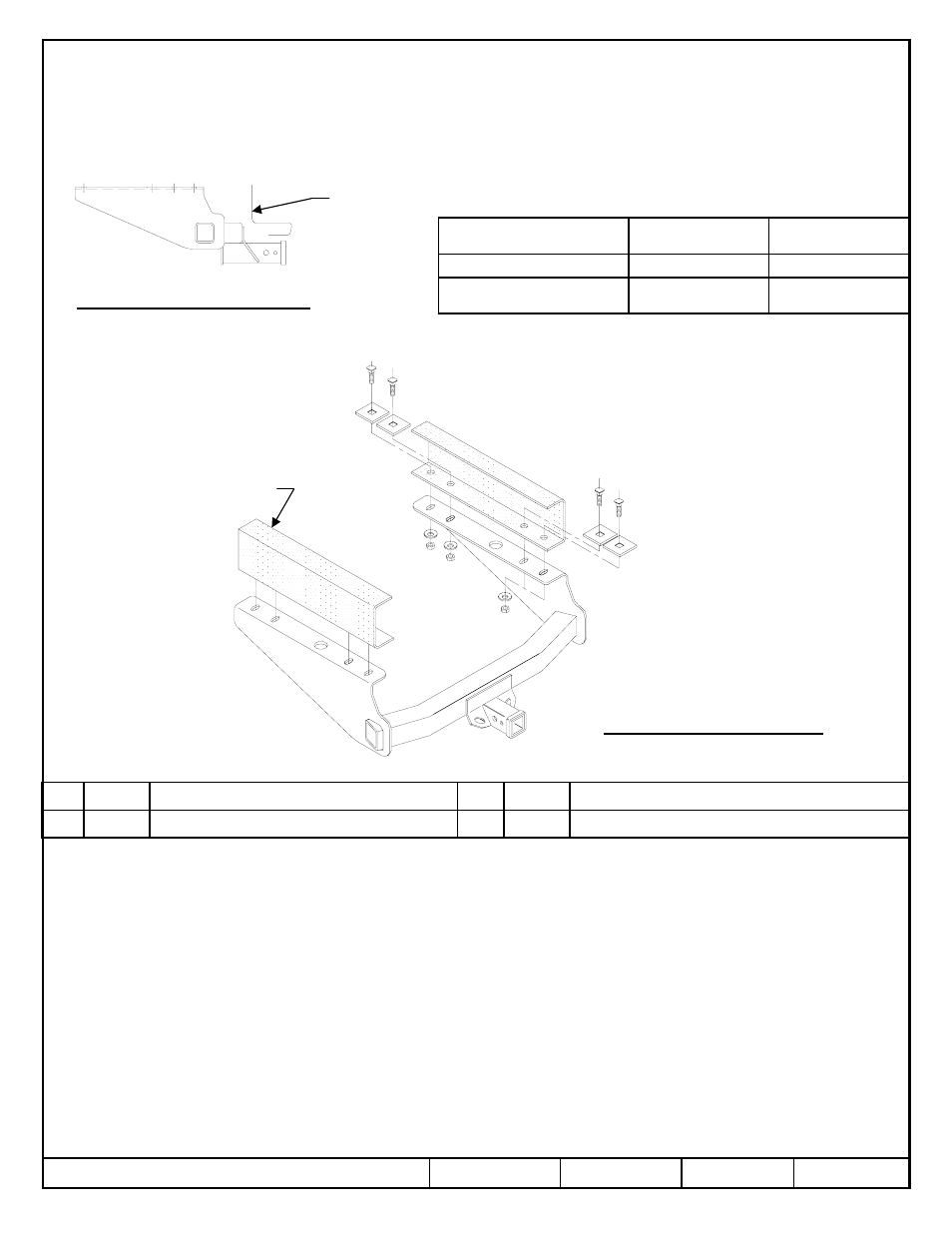

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 3/4, 7/8

Drill Bits: None

1. Scrape wax coating off of frame rails around the eight attachments.
2. Insert bolts and spacer in forward and rearmost attachment holes in each frame rail as show above.
3. Raise hitch into position and loosely attach fasteners to bolts as shown above.
4. Center hitch and install remaining fasteners as shown above.

Rev. A

6-27-06

N51020

Sheet 1 of 1

z

2002, 2006 Cequent Towing Products

Hex Nut 1/2-13

Qty. (8)

4

Spacer

Qty. (8)

2

Conical Washer 1/2

Qty. (8)

3

Carriage Bolt 1/2-13 X 1-3/4

Qty. (8)

1

Tighten all 1/2-13 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 51020-051

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

500 (227 Kg)

5000 (2270 Kg)

Weight Carrying

Ball Mount

1000 (454 Kg)

10,000 (4540 Kg)

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

Wiring Access Location: PU1, PU2

Frame rail

Step bumper

1

2

3

4

Fasteners typical both sides

SERIES 51®
