Installation Instructions

Ford Super Duty

F-Series Truck

Part Numbers:

44141

51068

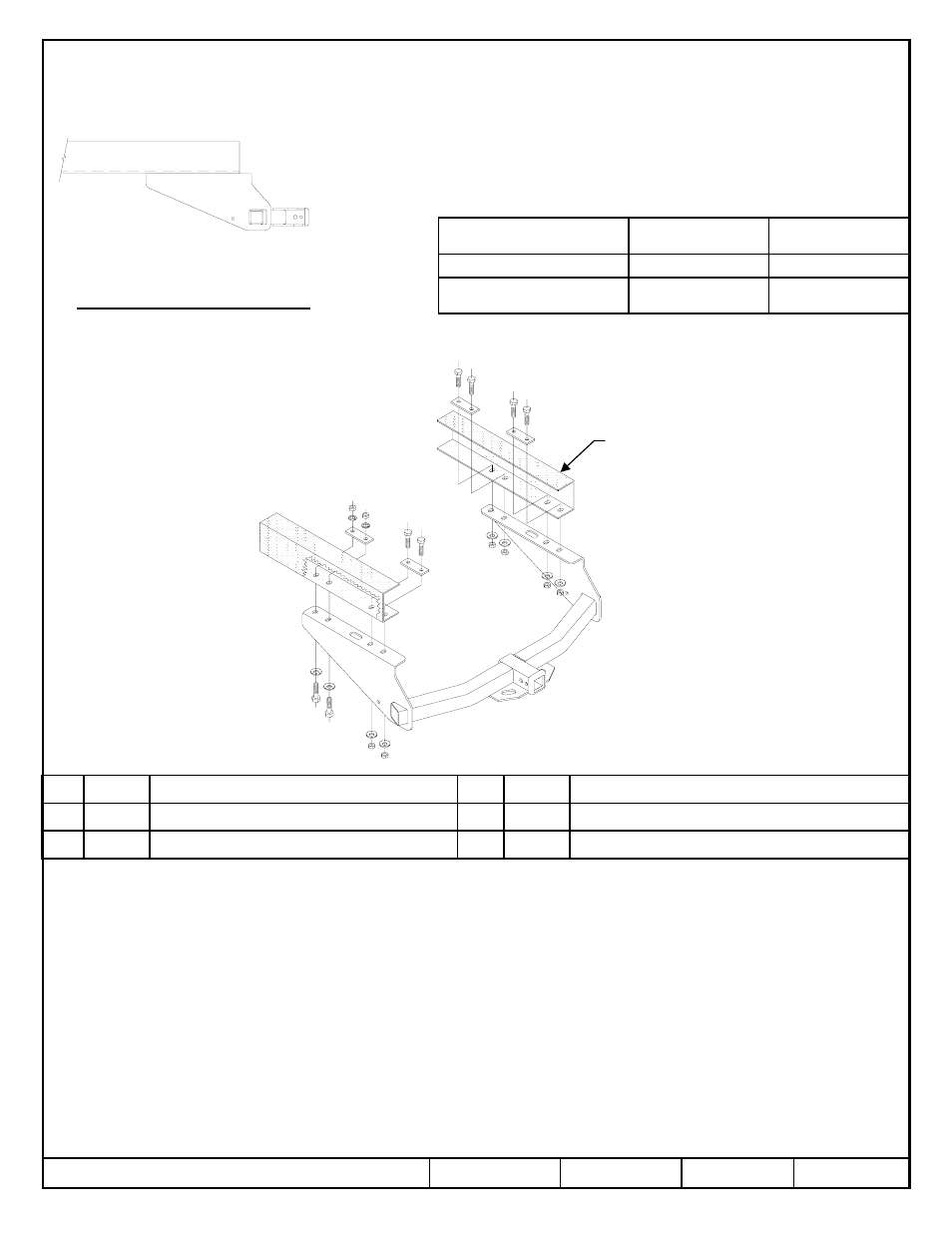

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 3/4

Drill Bits: None

1

Frame rail

1. Lower spare tire to allow for access to existing slots in vehicle frame rails.
2. Remove existing electrical bracket from vehicle if present and relocate as required.
3. Raise hitch into position and install fasteners as shown above.

4. Raise and position spare tire to allow for clearance between the receiver tube and the hex bolts coming through the frame rails.

Rev. B

6-27-06

51068N

Sheet 1 of 1

z

2004, 2006 Cequent Towing Products

Conical Washer 1/2

Qty. (8)

3

Lock Washer 1/2

Qty. (2)

5

Spacer

Qty. (4)

2

Hex Nut 1/2-13

Qty. (8)

4

Hex Bolt 1/2-13 X 1.75

Qty. (8)

1

Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 51068F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

600 (272 Kg)

6000 (2724 Kg)

Weight Carrying

Ball Mount

1000 (454 Kg)

10,000 (4540 Kg)

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

Wiring Access Location: PU1, PU2

2

4

3

4

2

1

5

2

SERIES 51®

Form: F205 Rev A 5-6-05
