Reese 44566 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Chrysler Pacifica
Part Numbers:
44566
75522
87432
Hitch Shown In Proper Position
Equipment Required: Wire Pull (Provided)
Wrenches: ¾”, 18mm, 19mm
Drill Bits: None
Rev. A 11-20-06 75522N Sheet 1 of 6 z 2006 Cequent Towing Products
Hex Nut ½-13 Qty. (6) 4
Hex Bolt M12 x 1.75 x 45mm CL10.9 Qty. (2) 7 Conical Washer ½” Qty. (4) 3
Flat Washer ½” Qty. (2) 6 Block ¼” x 1 x 3 Qty. (6) 2
Lock Washer ½” Qty. (4) 5 Carriage Bolt ½-13 x 1.75 GR5 Qty. (6) 1
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Fastener Kit: 75522F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
350 (159 Kg) 3,500 (1 589 Kg)
Weight Carrying
Ball Mount
500 (227 Kg) 5,000 (2 270 Kg) Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Wiring Access Location: SUV1, SUV2
Form: F205 Rev A 5-6-05

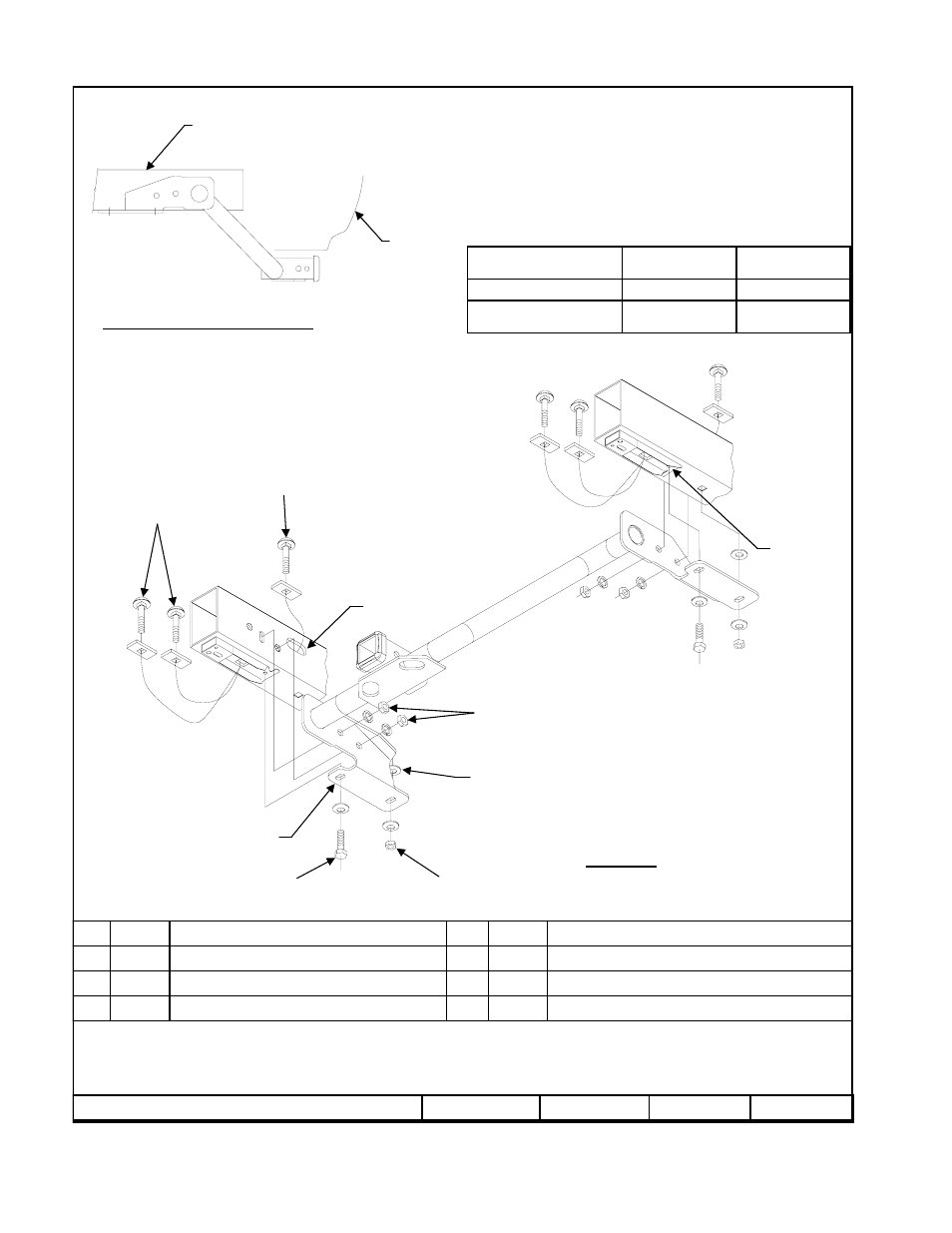

Frame Rail
Bumper
Existing
weldnut
Hitch Side Bracket
Access Slot
6
½” flat washer between
hitch side bracket and
frame
37
1
2
1
2
34
54
Fasteners typical both
sides of vehicle
Figure 1
