Reese 33056 PROFESSIONAL RECEIVER - Manual

INSTALLATION INSTRUCTIONS
Product No.
33056
37037
TOOLS REQUIRED
3/4” SOCKET
TORQUE WRENCH
SMALL PARTS
PACKAGE 37600
WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY
OCCUR DUE TO OVER TIGHTENING.
WARNING: DO NOT DRILL OR WELD TO THIS HITCH. IMPORTANT NOTES
USE ONLY TOWING PRODUCTS SUPPLIED OR APPROVED BOLTS,
LOCKNUTS, AND WASHERS TO INSTALL THIS HITCH
(OVER)
33056IN-3-21-03 EWO3289 © 2003 TOWING PRODUCTS, INC. Litho in USA
DURANGO
1/2” CARRIAGE BOLT
BOLT PLATE
1/2” SERRATED WASHER
1/2” NUT
1. Insert a hex bolt and a block through the holes in the bottom of the rear crossmember. Also insert a carriage bolt and
bolt plate into the rear hole of the mounting structure that the passenger side shock absorber mounts to. This is between
the frame and the spare tire.

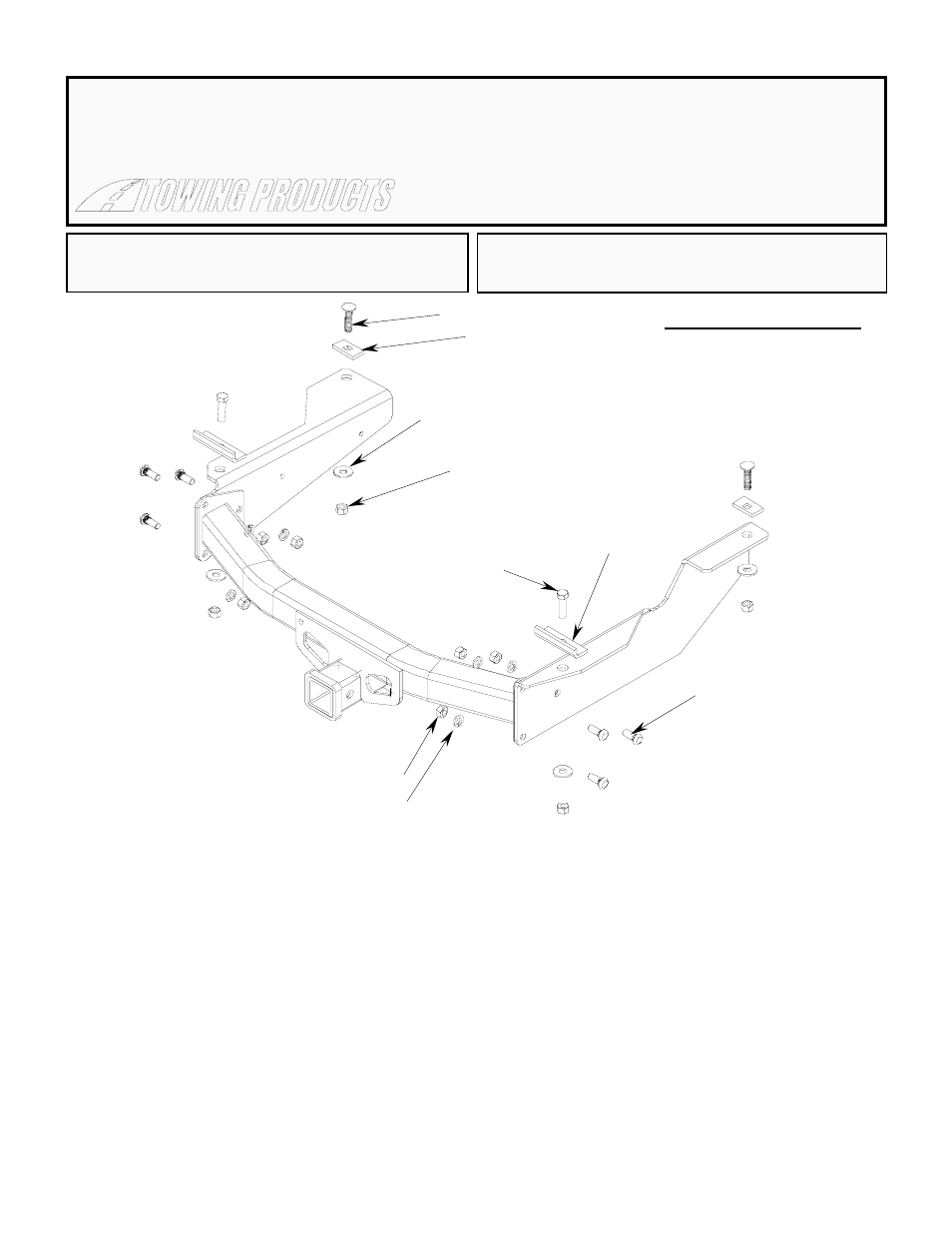

2. Lift the brackets up in place under the vehicle with the bolt coming through the holes. See the diagram above. Install
1/2” serrated washers, lock washers and nuts on the on the bolts.
3. Install a carriage bolt and bolt plate into the hole in the frame and hitch bracket on the drivers side. Install a 1/2” serrated
washer, lock washer and nut on the bolt.
4. Install the 1/2” knurled bolts, 1/2” lock washers, and the 1/2” nuts. Tighten the nuts until the bolt heads seat against the
brackets.
5. Torque all 1/2” nuts to 70 ft*lb.
1/2” KNURLED BOLT
1/2” NUT
1/2” LOCK WASHER
PLYMOUTH, MI
1/2-13 HEX BOLT
BLOCK
