Reese 44064 PROFESSIONAL RECEIVER - Manual

Installation Instructions
Dodge Durango
Part Numbers:
44064
51035

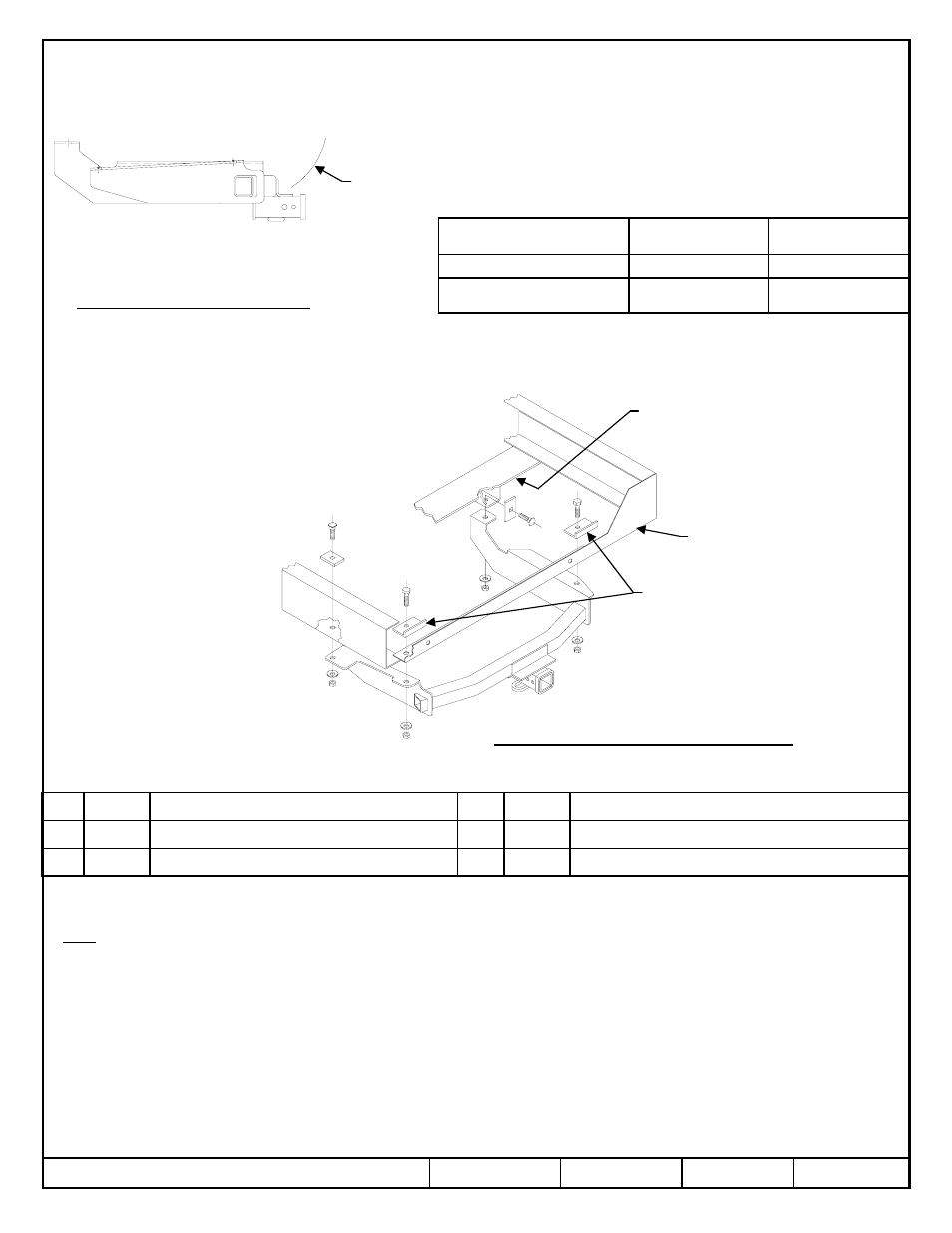

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 3/4, 7/8
Drill Bits: None
Fascia
1
1. Raise hitch into position and install fasteners as shown above.
Note: Some spare tires may need to be slightly loosened during hitch installation. Re-tighten spare tire after hitch has been installed.
Rev. A 6-27-06 N51035 Sheet 1 of 1 z 2001, 2002, 2006 Cequent Towing Products
Block Qty. (2) 6 Conical Washer Qty. (4) 3
Carriage Bolt 1/2-13 X 1.75 Qty. (2) 5 Bracket Qty. (2) 2
Hex Nut 1/2-13 Qty. (4) 4 Hex Bolt 1/2-13 X 1.50 Qty. (2) 1
Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 01131-035
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
300 (136 Kg) 3500 (1589 Kg)
Weight Carrying
Ball Mount
500 (227 Kg) 5000 (2270 Kg) Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Wiring Access Location: SUV1, SUV2
Forward crossmember
Rear crossmember
Reinforcement bracket flange
must be toward rear
crossmember as shown.
2
5
6
3
4
3
4
SERIES 51®
Fasteners typical both sides of vehicle
Form: F205 Rev A 5-6-05
