Installation Instructions

Dodge Ram Pickup Truck

Part Numbers:

44103

51039

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 7/8

Drill Bits: 1/2”

1

Frame rail

8’ Bed Vehicle – Uses existing hole in frame – no drilling required.
6-1/2’ Bed Vehicle – Forward attachment holes need to be drilled.

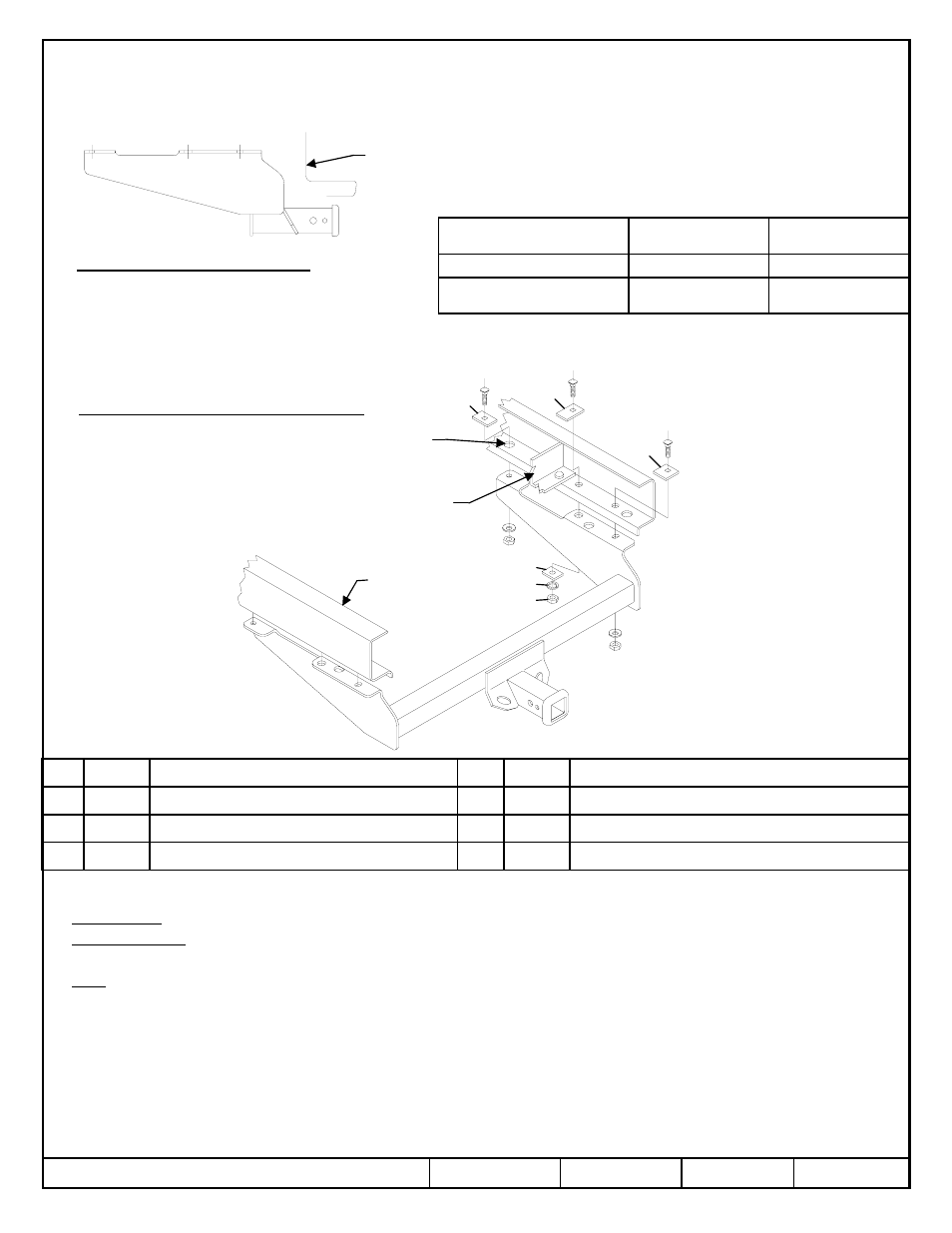

1. Raise hitch into position and install fasteners as shown above.
Note: On 6-1/2’ bed vehicles drill a 1/2” hole for the forward fasteners.

Rev. B

6-27-06

N51039

Sheet 1 of 1

z

2001, 2002, 2004, 2006 Cequent Towing Products

Block .25 X 1.00 X 1.50

Qty. (2)

8

Lock Washer 1/2

Qty. (2)

4

Block .25 X 1.50 X 2.00

Qty. (2)

7

Hex Nut 1/2-13

Qty. (6)

3

Block .25 X 1.50 X 2.00

Qty. (2)

6

Conical Washer 1/2

Qty. (4)

2

Block .25 X 1.50 X 2.00

Qty. (2)

5

Carriage Bolt 1/2-13 X 1.75

Qty. (6)

1

Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 01131-098

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

500 (227 Kg)

5000 (2270 Kg)

Weight Carrying

Ball Mount

1000 (454 Kg)

10,000 (4540 Kg)

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

Wiring Access Location: PU1, PU2

Existing on 8’ bed
Drilled on Pre-1999
Models 6-1/2’ bed

2

3

2

3

1

1

4

3

8

6

7

5

Crossmember &
rivet – location
varies by model

Fasteners typical both sides of vehicle

Step bumper

SERIES 51®

Form: F205 Rev A 5-6-05
