Installation Instructions

Dodge Sprinter

Freightliner Sprinter

Part Numbers:

33089

75210

87647

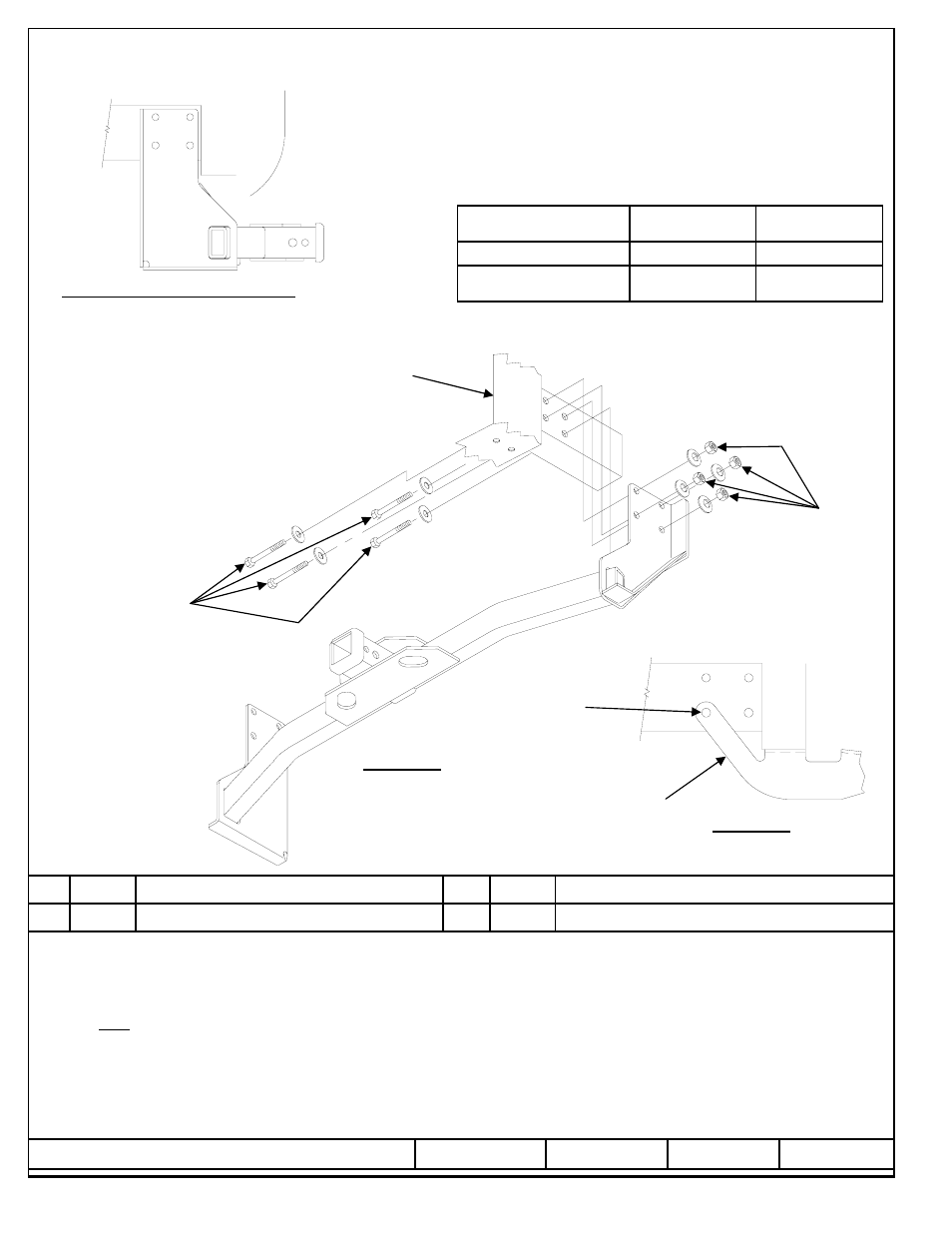

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 18mm, 3/4

Drill Bits: None

For vehicles without factory step bumper, skip down to step 2.
1.

Remove fasteners which attach bumper mounting bracket to vehicle frame, one each side, and discard (see Figure 2).

2.

Raise hitch into position and secure with fasteners provided with hitch as shown in Figure 1. Tighten all ½-13 GR5 fasteners

with torque wrench to 75 lb.-ft.
Note: On vehicles with factory step bumper, bumper mounting bracket will be re-attached at original position with fasteners

provided with hitch.

Tighten all ½-13 GR5 fasteners with torque wrench to 75 lb.-ft.

z

2005 Cequent Towing Products

Sheet 1 of 3

75210N

11-11-05

Rev. C

1

Qty. (8)

½-13 x 4” Hex Bolt

3

Qty. (8)

½ Conical Toothed Washer

2

Qty. (8)

½ Flat Washer

4

Qty. (8)

½-13 Hex Nut

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 75210F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

7500

750

Weight Carrying

Ball Mount

5000

500

Wiring Access Location: SUV3, SUV4

Form: F205 Rev A 5-6-05

Step Bumper
Mounting Bracket

Remove fastener
And discard

Figure 2

Removal of step bumper
Mounting fastener

Figure 1

Fasteners Typical
Both Sides

Vehicle Frame

43

21
