Installation Instructions

Acura RDX

Part Numbers:

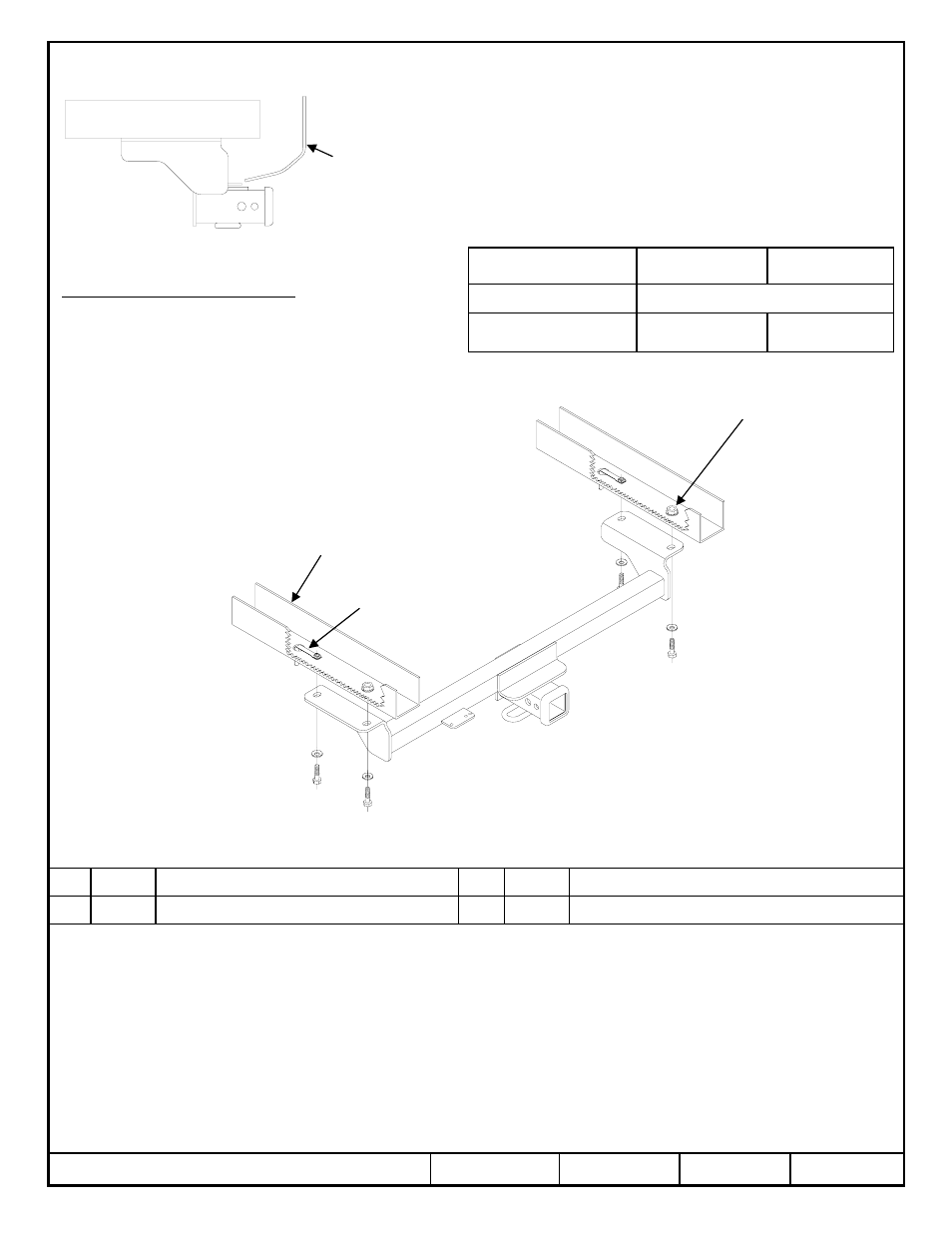

Hitch Shown In Proper Position

Equipment Required:

Wrenches: ¾, 19mm

Drill Bits: None

Rev. A

7-27-07

75563N

Sheet 1 of 3

z

2007 Cequent Towing Products

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 75563F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Wiring Access Location: SUV1, SUV2

Form: F205 Rev A 5-6-05

Tighten all 1/2-13 GR 5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

½ Handle Nut

Qty. (2)

4

½ Conical Toothed Washer

Qty. (4)

2

M12 X 1.25 X 40mm CL 10.9

Qty. (2)

3

Hex bolt ½-13 x 1.75 GR5

Qty. (2)

1

1.

Raise hitch into position and align the slots of the receiver with the weldnuts in the frame rail.

2.

Install the M12 X 1.25 X 40mm bolts and conical toothed washer through the hitch and into the weldnuts.

3.

Insert the handle nuts through the large hole in the vehicle frame rail as shown above.

4.

Install the ½-13 X 1.75 bolts and conical toothed washers.

Frame Rail

Tighten all M12 X 1.25 CL 10.9 fasteners with torque wrench to 115 Lb.-Ft. (156 N*M)

Fascia

Existing Weldnut
– Both Sides

75563

87449

44584

400 (182 Kg)

4000 (1816 Kg)

Weight Carrying

Ball Mount

Not For Use With Spring Bars

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

2

3

2

1

4

Note: Fasteners typical

both sides
