Installation Instructions

Cadillac SRX

Part Numbers:

75682
87573
44638

78187

U-Haul

Do Not Exceed Lower of Towing Vehicle

Fascia

Frame rail

Impact

bumper

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 19mm, 10mm
Deep well socket, Small Flat
Head Screwdriver & Philips
Tip Screwdriver

Frame rail

Fastener Kit: 75682F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

5000 (2270 Kg)

500 (227 Kg)

Weight Carrying

Ball Mount

4000 (1816 Kg)

400 (182 Kg)

Wiring Access Location:

Tip Screwdriver

Impact

bumper

Bumper
fascia

Plastic
spacer
blocks

Note: Fasteners typical both sides

2

1

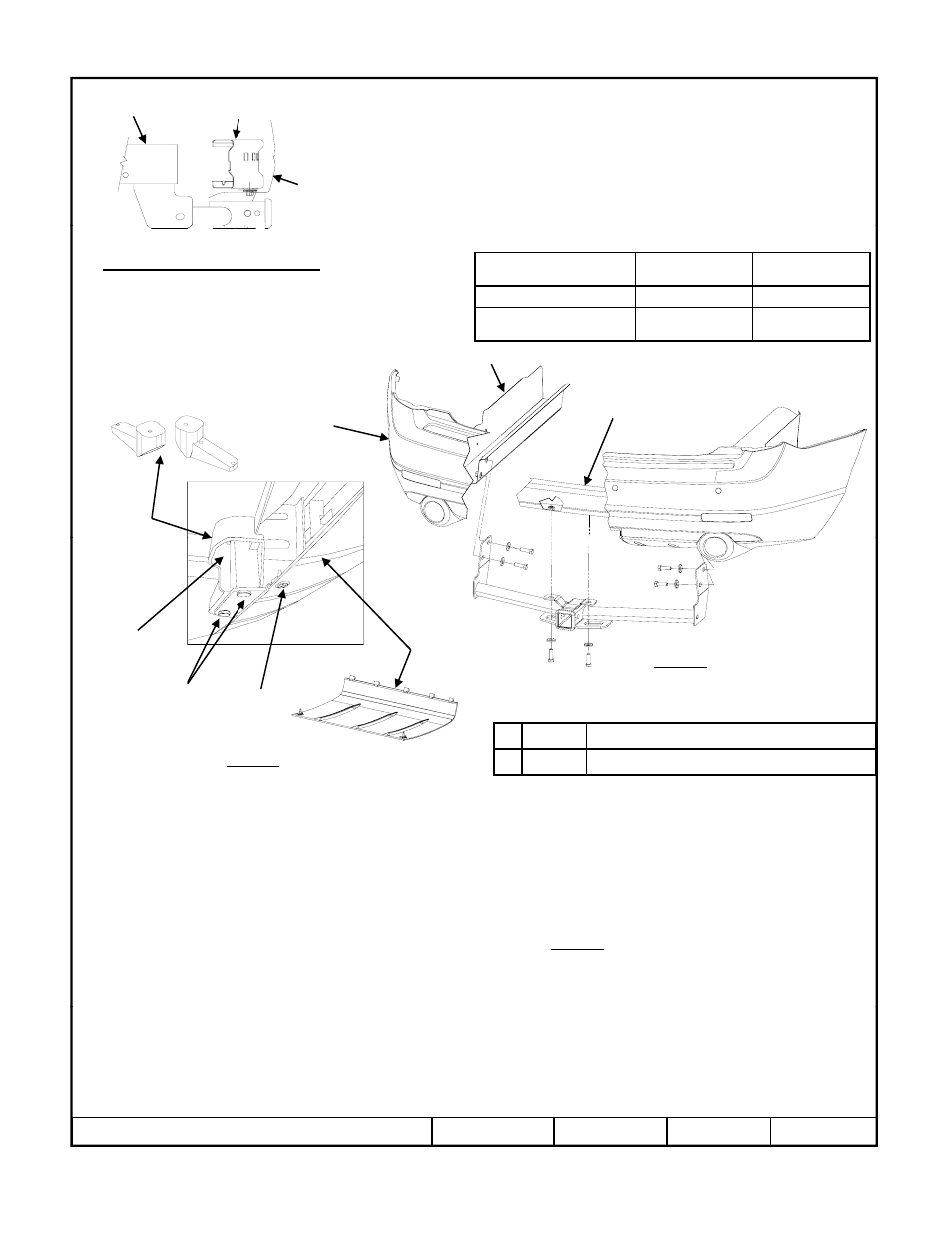

Figure 1

Fasica door

10mm

hex nut

Note: Fasteners typical both sides

1. Remove fascia door from bumper fascia using a philips tip screwdriver (2 screws). Remove the (4) plastic rivets that

fasten the fascia tabs to the plastic spacer block. Note: Remove the center of the rivet with a screwdriver by first
pulling out center post of rivet. Rivet can then be pushed out by hand. Rivets to be reinstalled. Return plastic fascia

i

d

t

hi l

S

Fi

2

Conical washer 1/2”

Qty. (6)

2

Hex Bolt M12X1.75X40 CL8.8

Qty. (6)

1

1

Figure 2

Plastic
rivets

Philips
screw

covering and screws to vehicle owner. See Figure 2.

2. Remove plastic spacer block that the bumper fascia was attached to with a 10mm socket, to be reinstalled.
3. Carefully, pull the electrical wiring harness located on the inside of the drivers side rail away from rail while installing

the hitch

4. Raise the hitch into position, carefully, lifting the hitch over the fascia (where needed). Secure to impact bumper with

M12 bolts and conical washers into the existing weld nuts, as shown Figure 1. Install remaining fasteners as shown.

5. Tighten all fasteners to the required torque specifications shown below.
6. Reinstall the plastic spacer blocks and (4) plastic fascia rivets removed in step 1 & 2.

Tighten all M12 CL 8.8 fasteners with torque wrench to 68 Lb.-Ft. (92 N*M)

z

2009, 2010 Cequent Performance Products

Sheet 1 of 3

75682N

9-2-10

Rev. B

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Form: F205 Rev A 5-6-05
