Installation Instructions

Part Numbers:

75725
87614
44668

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 7/8, 22mm

Drill Bits: None

Fastener Kit: 75725GF

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

10,000 (4540 Kg)

1000 (454 Kg)

Weight Carrying

Ball Mount

6000 (2724 Kg)

900 (409 Kg)

Wiring Access Location: SUV6

1

2

Frame rail

Bumper

Bumper bracket

Hole not used
(Both sides)

Bumper

Frame rail

Existing weldnut

All require OEM Bumper

Chevrolet Suburban*, Chevrolet Tahoe*,

GMC Yukon XL*, GMC Yukon*,

Cadillac Escalade, Chevrolet Avalanche,

*Vehicles with amber turn signals

© 2011 Cequent Performance Products

Sheet 1 of 3

75725N

7-28-11

Rev. A

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Form: F205 Rev A 5-6-05

Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Tighten all M14 CL10.9 fasteners with torque wrench to 115 Lb.-Ft. (156 N*M)

1

1

1

1

Qty. (2)

Carriage Bolts 1/2-13 X 1.75 GR 5

5

5

5

5

Qty. (4)

Hex Bolt M14 X 2.00 X 40mm CL 10.9

2

2

2

2

Qty. (2)

Spacer

6

6

6

6

Qty. (4)

Lock Washer

3

3

3

3

Qty. (2)

Conical Washer

7

7

7

7

Qty. (4)

Flat Washer

4

4

4

4

Qty. (2)

Hex Nut 1/2-13

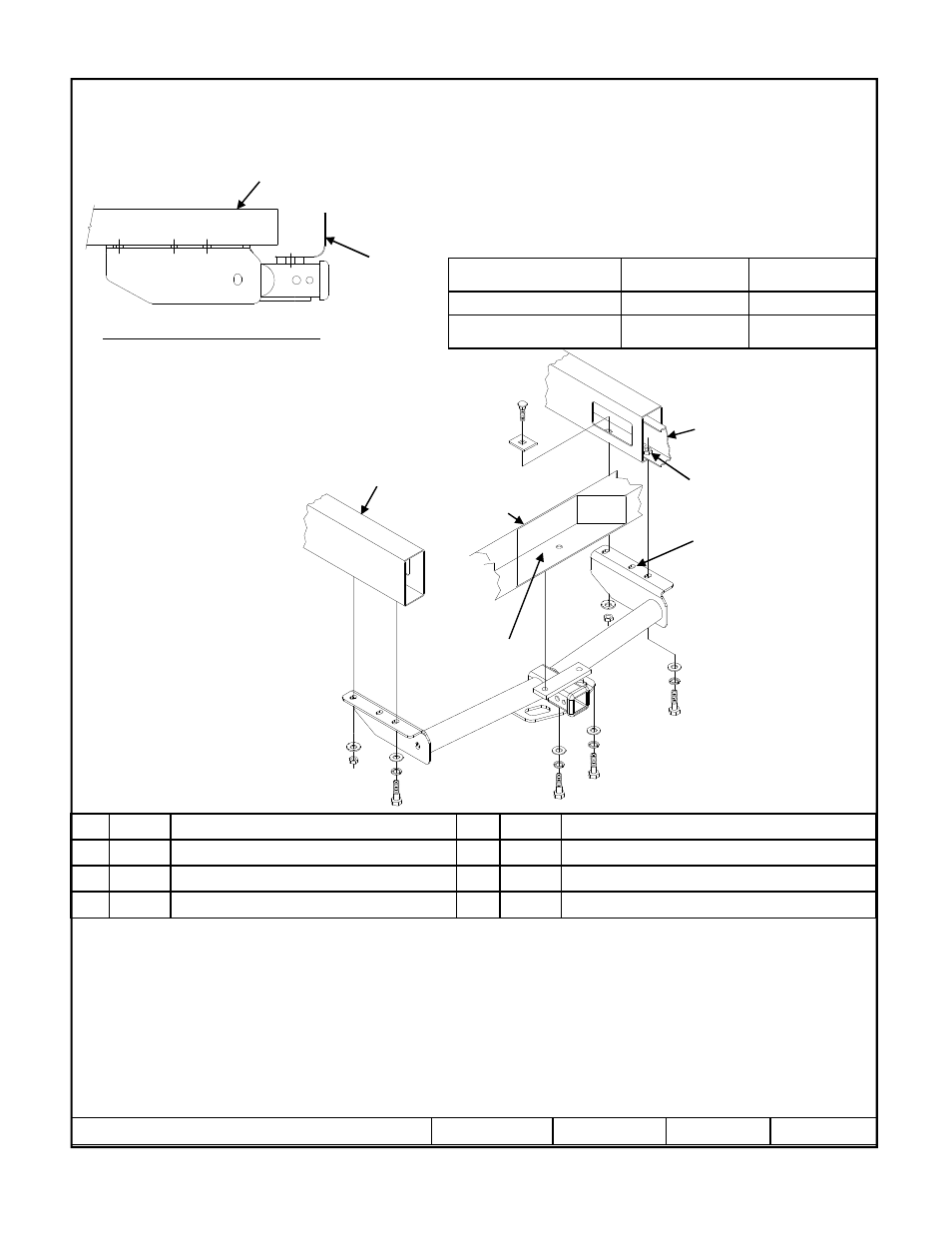

1. Remove existing M14 bumper bracket bolts on both sides from bottom surface of frame and return to vehicle owner.
2. Raise hitch into position and install as shown with fasteners provided.

Note: Fasteners typical

both sides

7

6

5

3

4

Existing weldnut
Inside of bumper
